Fig. 12
From: Preparation and characterization of nano-silver/graphene oxide antibacterial skin dressing

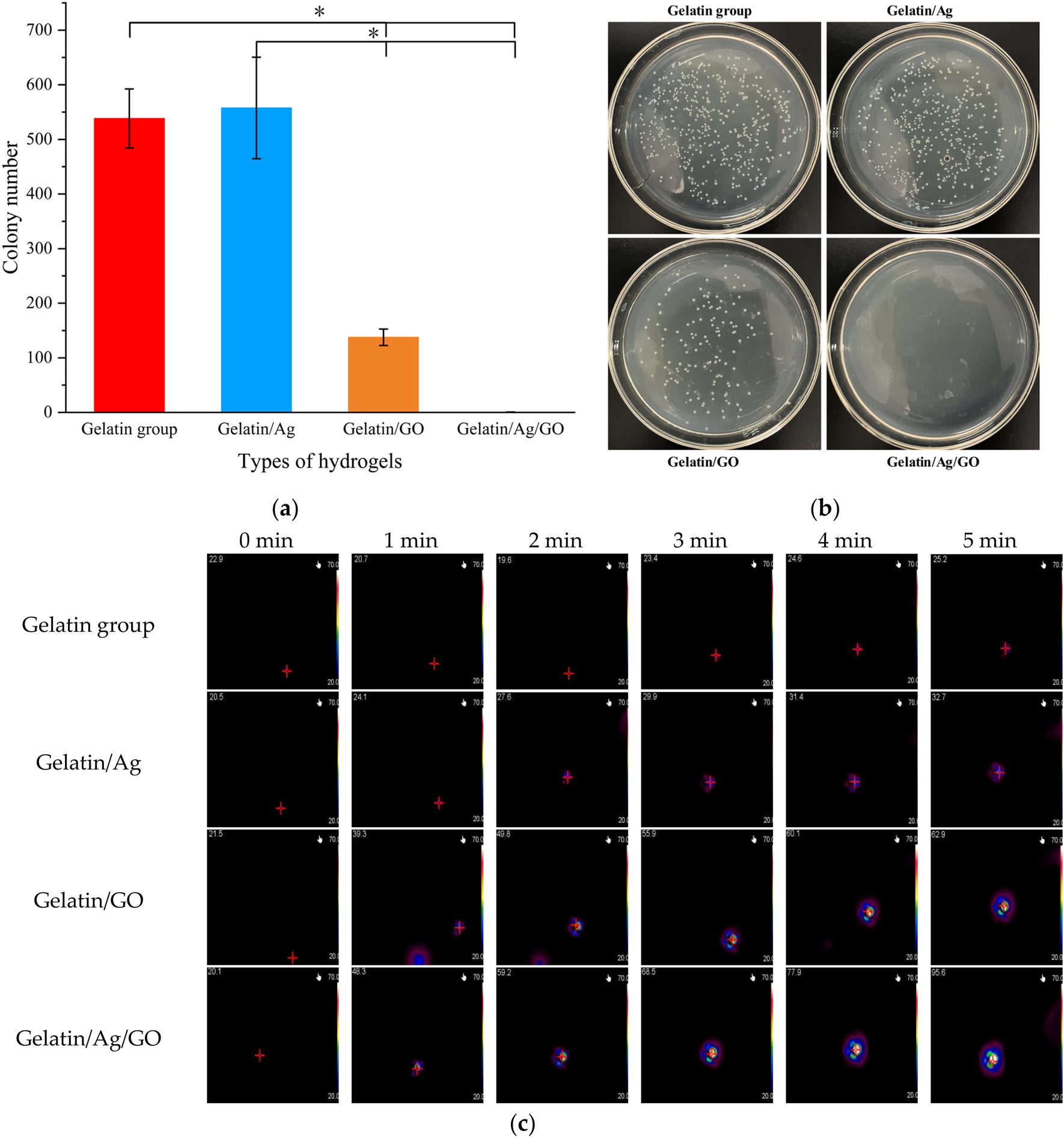

Infrared bacteriostatic test graphs (Escherichia coli). (a) Colony number histogram. (b) Physical picture of colony. (c) Infrared warming graph of hydrogels.
