Introduction

The exponential growth of wireless communication devices in recent decades has necessitated the development of antennas with increased adaptability. Traditional antennas are restricted by their fixed operating frequencies and radiation patterns, posing a significant challenge for applications that require dynamic characteristics. These applications include radar systems, satellite communications, and mobile networks, IoT networks where adaptable radiation performance is crucial for optimal performance1,2,3,4,5,6,7,8,9.

Reconfigurability offers a solution by enabling the adjustment of the antenna’s key parameters, such as frequency, radiation pattern, and polarization, either individually or in combination. This adaptability enables significant improvements in system performance and potentially reduces the number of antenna elements, leading to more compact and efficient communication system deployment.

The concept of reconfigurable antennas emerged in the 1930s with the introduction of null-steering arrays controlled by phase shifters to determine the signal arrival direction. Subsequent advancements have introduced various reconfigurable techniques, including diodes10, ferroelectric varactors11, phase shifters, varactor diodes, and microelectromechanical systems (MEMSs)12. However, these approaches often suffer from limitations such as reduced power handling capability, intricate biasing networks required for component tuning13, and potential nonlinear distortions that can compromise signal integrity14.

Origami technology presents a promising alternative for overcoming these limitations. By exploiting the principles of folding and unfolding origami structures, researchers can create antennas with a diverse range of reconfigurable properties. These pattern reconfigurable antennas can modify their radiation direction at a fixed operating frequency through adjustments in their aperture shape. This capability significantly enhances system performance by enabling the avoidance of noise sources and electronic jamming. Consequently, it leads to improved system security and energy efficiency through the targeted transmission of signals toward intended users.

The increasing demand for pattern reconfigurable antennas is driven by advancements in modern wireless communication technologies, particularly those employed in satellite communication, radar systems, and military applications15,16,17,18,]. This has spurred research efforts exploring various techniques, encompassing both mechanical and electrical approaches19, to achieve this functionality. Among these innovative methods, origami-inspired antennas stand out as a particularly promising solution. In these designs, the antenna’s radiation pattern is altered by manipulating its physical form through folding and unfolding.

The appeal of origami technology lies in its ability to circumvent the complexities associated with conventional switching mechanisms and their accompanying biasing networks, which can be detrimental to overall system performance. By leveraging the transformation of flat origami patterns into three-dimensional structures, these antennas enable modifications in their radiation patterns through simple folding and unfolding actions. Furthermore, the transition from a 2D configuration to a 3D geometry can induce mode changes, leading to an even wider array of achievable radiation patterns. This design principle has paved the way for the development of a multitude of intriguing pattern reconfigurable origami antenna possibilities.

Pattern reconfigurability is particularly useful in obstacle-dense environments such as urban areas and indoor spaces where it can optimize the signal and direct the beam in a particular direction due to varying propagation conditions. Consequently, this improves the overall performance and dependability of wireless communication systems by enabling stronger signals and more uniform coverage. In addition, the pattern reconfigurable antenna mitigates interference and improves the overall signal-to-noise (SNR) ratio20,21. It allows multiuser communication and enhances network capacity by supporting multiple users with varying spatial distributions with efficient energy usage by steering the beam in the intended direction11. Origami antennas have several advantages over traditional and existing reconfigurable designs. First, they achieve reconfigurability without the need for switches, making them potentially more efficient and reducing power consumption. Second, their compact size allows them to be folded for storage or transport, which is ideal for portable devices. They can then be unfolded and deployed on demand, adding to their versatility. Finally, origami antennas can be reconfigured in real time to adapt to changing signal conditions and optimize performance for different applications. Several studies have explored the potential of origami antennas. For example, the thermally reconfigured antenna design in22 demonstrated both deployability and reconfigurability for an extended mobile range. However, this design involves trade-offs. It offers beamwidth switching and pattern reconfigurability but suffers from a slow actuation speed due to the thermal activation of shape memory polymer (SMP) hinges. The antenna in23 achieves polarization diversity but is fragile and susceptible to damage. The patch antenna array in24 offers foldability and enhanced beam steering but has a large footprint at 2.4 GHz.

In conclusion, conventional pattern-reconfigurable antennas often rely on active components such as PIN diodes or varactor diodes to achieve reconfigurability. These components can introduce significant losses, limit the achievable reconfiguration range, and necessitate additional power consumption. Moreover, the complex circuitry required to control these components can increase the overall system complexity and cost. In contrast, our proposed origami-based antenna offers a more elegant and efficient solution. By leveraging the principles of origami, we achieve reconfigurability through simple mechanical deformations, eliminating the need for active components and complex circuitry. This results in a more compact, low-cost, lightweight, and power-efficient design.

Our proposed design builds upon the work presented in25, which prioritizes gain enhancement through the addition of directors, creating a quasi-Yagi antenna. However, this design lacks reconfigurability features. Similarly, the DNA-inspired design in26 offers pattern reconfigurability but is limited by a large ground plane, hindering deployment flexibility. By incorporating the advantages of origami and addressing the limitations of existing designs, we aim to develop a new generation of reconfigurable origami antennas that are compact, deployable, and adaptable to meet the demands of modern wireless communication systems.

In this context, we propose a novel origami magic spiral cube-based radiation pattern reconfigurable antenna, inspired by the Yagi geometry. Notably, our antenna is easily deployable on any surface and improves previously reported designs in terms of beam switching capability. The proposed antenna offers remarkable beam control, allowing ± 90° beam direction switching with a 62° 3 dB beam width for States 2 and 3 or directing its beam by 88° and 92° with corresponding 3 dB beam widths of 51° for State 4, respectively. Our proposed antenna is simpler, more cost-effective, and performs better than the existing designs, which often have thick substrates and large areas. We have simulated and experimentally validated various performance parameters, including impedance bandwidth, directivity, and radiation patterns, on the basis of the fabricated antenna prototype.

In the subsequent sections, we delve into the details of the proposed antenna design, discuss the simulation and measurement results, and conclude by summarizing the main findings and comparisons with state-of-the-art designs reported in the literature.

Antenna design

The proposed antenna consists of three modular elements. One central element having a monopole designed on magic cube2 (MC2) and two parasitic stack elements named MC1 and MC3 which act as a director and reflector alternatively. The complete stepwise design of magic cube from simple plane sheet of paper to final structure is described in Fig. 1 while the different states in which the magic cubes are arranged to perform specified task is illustrated in Fig. 2. Initially two square sheets of paper, S-1 and S-2, each having thickness of 0.65 mm and dimensions of 50 mm × 50 mm were taken (Fig. 1(a)). Both sheets were labeled with reference points (J, J’, K, K’, L, L’, M, M’, N, N’, O, and Q) to guide the folding process as shown in Fig. 1(b). Sheet S-1 was folded along line JJ’ and then unfolded, creating a crease (Fig. 1(c)). The JJ’ marking divided the square into two triangular halves (Fig. 1(c)). For the lower triangular half, the sheet was folded along LL’ so that point O touched JJ’ line (Fig. 1(d)). Next, it was folded along KK’ aligning LL’ with JJ’ (Fig. 1(e)). Similarly, the upper triangular portion of the sheet was folded along line NN’ so that point Q touched line JJ’ (Fig. 1(f)). Finally, it was folded along MM’, aligning NN’ and LL’ with JJ’ (Fig. 1(g)). Now for driven magic cube consisting of monopole and ground plane, a 0.1 mm thick copper strip with dimensions Lg \(\:\times\:\) L was attached to the middle section of sheet S-1 between lines XX’ and YY’ to act as ground plane of driven monopole (Fig. 1(h)). Sheet S-1 was then folded along YY’ so that point J’ met points N and L (Fig. 1(i)) so that the hexagonal shape of sheet S-1 was transformed into a pentagon. Now the section J’K’Y’M’ was folded towards YY’M’ (Fig. 1(j)). The paper was then folded along line XX’ (Fig. 1(k)). Finally, section KJMX was folded towards KXX’, resulting in a hexagonal shape again (Fig. 1(l)). Sheet S-2 was folded using the same steps as S-1, excluding the attachment of the copper strip (Fig. 1(m)). The magic cube geometry was then created by joining the folded geometries formed from S-1 and S-2. Figure 1(n) shows that the magic cube has six square sides; each of them has the same dimensions. The magic cube geometry can be conveniently folded and unfolded. After fabricating the magic cube, the monopole driven element was realized on magic cube#2 (MC-2), using copper film (Fig. 1(q)). The parasitic magic cubes #1 and #3 (MC-1 and MC-3) were also fabricated using the same procedure as for MC-1 with copper film completely covering one face of magic cube. The parasitic magic cube design was completed after joining three such magic cubes using a double-sided bonding film. Figure 1(o-p) shows the parasitic magic cube geometry in its folded and unfolded states, respectively.

The proposed antenna leverages three modular origami structures resembling magic cubes (MCs), as shown in Fig. 2. Each module plays a specific role in achieving reconfigurable radiation patterns. The central MC (MC-2) consists of a resonating \(\:\lambda\:/4\) monopole radiating element. Two parasitic MC (MC-1 and MC-3), each consisting of three stacked conducting surfaces, are adjacent to MC-2 on either side. These parasitic elements function as directors, focusing radiation on them when their electrical length is less than λ/4. Conversely, they act as reflectors, redirecting radiation away from themselves when their electrical length exceeds λ/4. By simply folding or unfolding these elements, we can modify their electrical lengths and adjust the antenna’s radiation pattern to achieve the desired directionality.

Fig. 1
Fig. 1
Full size image

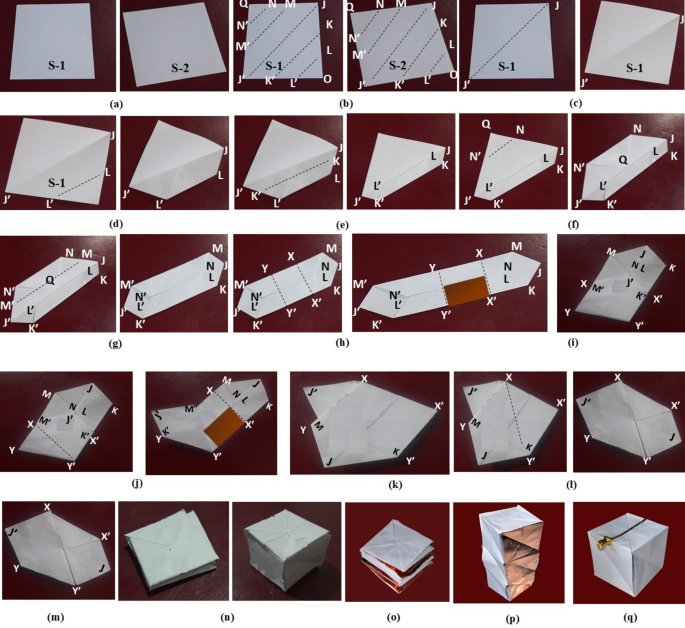

Step by step design stages of origami magic cube design process for the driven and parasitic elements.

The driven monopole radiator in MC-2 consists of a copper strip with length L = 0.3λ and width Wm=0.016λ attached to the top surface. Its ground plane with Lg=0.13λ is integrated on the interior of MC-2, where λ = 150 mm at 2 GHz. Similarly, parasitic elements MC-1 and MC-3 employ conducting surfaces on two sides.

The proposed design uses a standard 0.65 mm thick, 50 mm × 50 mm paper sheet for structural support. The conductor elements are made from 0.1 mm thick copper tape with a conductivity of 4.4 × 105 S/m25.

Fig. 2
Fig. 2
Full size image

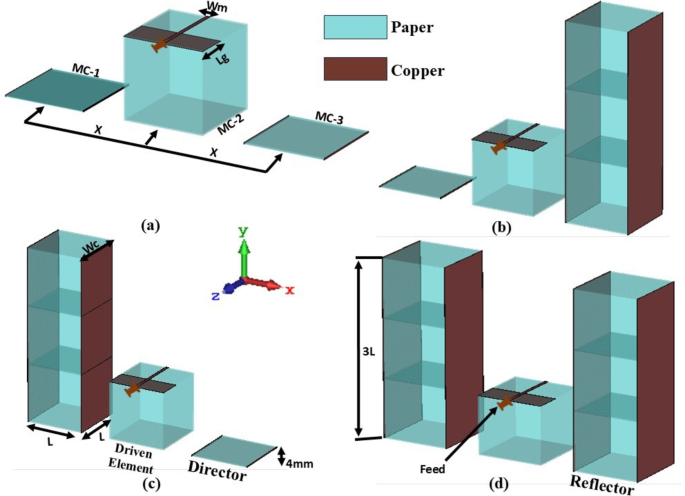

Proposed deployable origami pattern reconfigurable antenna design for various state arrangements with L = WC = 50 mm, Lg = 20 mm, Wm = 2.5 mm, X = 76 mm (a) State-1 (b) State-2 (c) State-3 (d) State-4.

By manipulating these MCs through folding and unfolding, we achieve four distinct radiation patterns, as illustrated in Fig. 2:

  • State-1 (Fig. 2(a)): Both MC-1 and MC-3 are folded, acting as directors in a configuration similar to a Yagi antenna. They minimally affect radiation, resulting in an omnidirectional pattern from the driven element (monopole antenna) in MC-2.

  • State-2 (Fig. 2(b)): MC-1 remain folded (director), whereas MC-3 unfold (reflector). This configuration directs radiation away from the reflector side.

  • State-3 (Fig. 2(c)): MC-3 is folded (director), and MC-1 unfolds (reflector). The radiation pattern is similar to that of State-2 but in the opposite direction.

  • State-4 (Fig. 2(d)): Both MC-1 and MC-3 are unfolded (reflectors). Compared with other states, the radiation pattern becomes bidirectional, with a slight decrease in bandwidth and a gain enhancement of 1 dB.

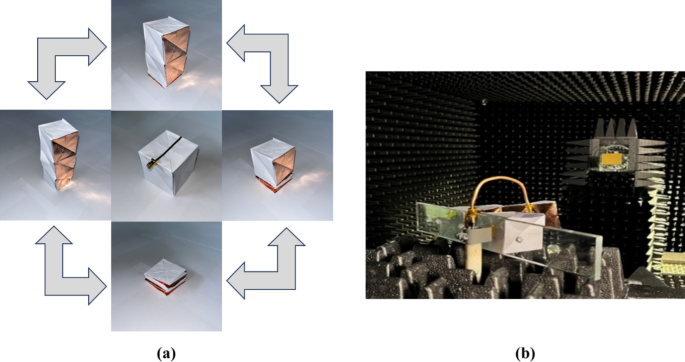

Figure 3(a) shows the fabricated prototype demonstrating the folding/unfolding mechanism of origami magic cube structure for reconfigurable states. As can be seen the parasitic magic cube structure consisting of 3 magic cubes in stack configuration can be manually folded/unfolded in 3 steps. The feed magic cube consisting of single magic cube remains in unfolded configuration for all operating states. The testing of fabricated model has been conducted in an anechoic chamber with setup shown in Fig. 3(b).

Fig. 3
Fig. 3
Full size image

Fabricated Magic Cube structure (a) Magic Cube folding/unfolding stages (b) Measurement setup.

Figure 4 shows the fabricated prototype operating in four reconfigurable states. Figure 4(a) shows state 1 configuration where both parasitic MC are folded. Figure 4(b) shows state 2 configuration where the left parasitic MC is folded while right parasitic MC is unfolded. Similarly Fig. 4(c) shows state 3 configuration where left parasitic MC is unfolded while right parasitic MC is folded. Figure 4(d) shows the proposed model in state 4 configuration where both left, and right parasitic MCs are unfolded.

Fig. 4
Fig. 4
Full size image

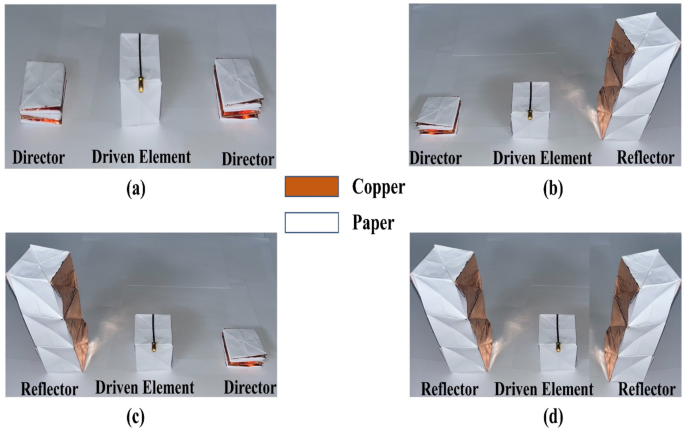

Fabricated prototypes in different state configurations : (a) State-1 (b) State-2 (c) State-3 (d) State-4.

Parametric analysis

A comprehensive parametric study was conducted to optimize the performance and size of the proposed antenna design. We first investigated the impact of the design parameters on the antenna’s reflection coefficient. The paper substrate thickness \(\:{T}_{s}\:\)was varied from 0.1 mm to 0.7 mm, and a thickness of 0.65 mm was found to be optimal for achieving good impedance matching at an operating frequency of 2 GHz (Fig. 5(a)).

Similarly, varying the interelement spacing X between the central and side elements (from 50 mm to 85 mm) led to an optimal value of 76 mm (Fig. 5(b)). Additionally, the effect of the copper sheet width WC on impedance matching was also studied, as shown in Fig. 5(c).

Fig. 5
Fig. 5
Full size image

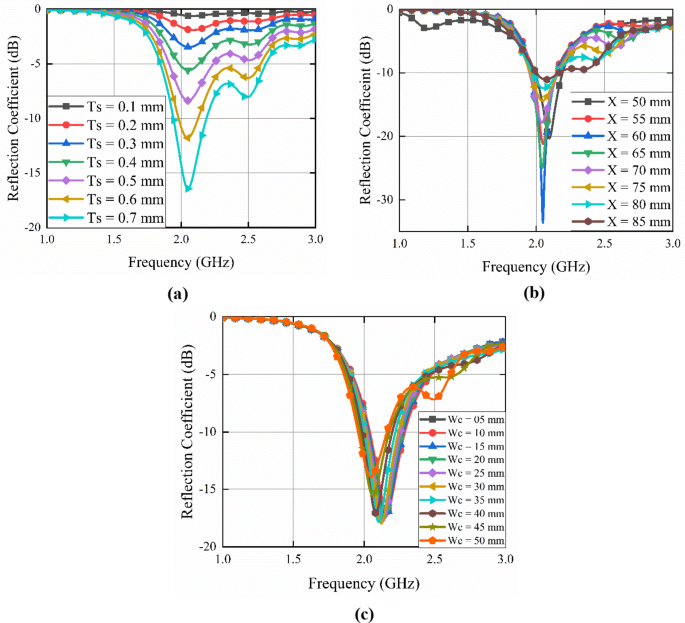

Reflection coefficient of the proposed antenna (a) variation with substrate thickness (Ts), (b) variation with interelement spacing (X) between magic cubes and (c) variation with copper width (WC).

Next, we analyzed the effect of the copper sheet width WC on the gain (Fig. 6(a)). The maximum gain was achieved for WC = 50 mm, whereas the minimum gain was observed for WC = 5 mm. A gain variation of almost 1 dB for every 5 mm change in WC for all four states (1, 2, 3, 4) of the design can be observed. To achieve an optimal balance between size and performance, the effect of the number of magic cubes on the gain for all states was studied. Figure 6(b) shows that three stacked magic cubes provide the highest gain.

Fig. 6
Fig. 6
Full size image

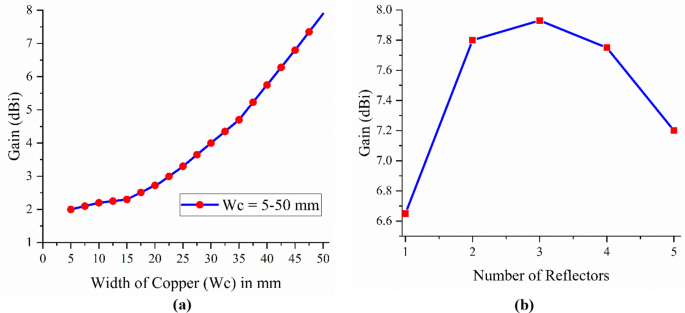

(a) Effect of the copper width (WC) on the gain of the proposed antenna. (b) Effect of the number of magic cubes (MC-1 and MC-2 when used as reflectors) on the gain of the proposed antenna.

Results and discussion

The surface current distribution of the proposed antenna, as shown in Fig. 7, plays a critical role in determining its radiation pattern. This is evident across the four distinct states.

In State 1 (Fig. 7(a)), the current distribution is concentrated primarily on the monopole radiator located on MC-2. This results in an omnidirectional radiation pattern, meaning that the antenna emits signals with equal strength in all directions. Notably, the minimal current on MC-1 and MC-3 is in this state.

State 2 (Fig. 7(b)) introduces a change. Current excitation extends from the main monopole radiator on MC-2 to the left-side element, MC-3. This additional current causes MC-3 to act as a reflector, pushing the maximum radiation pattern toward the left side in the direction of MC-2.

State 3 (Fig. 7(c)) shares similarities with State 2 in terms of current flow on the main monopole radiator (MC-2). However, in this state, current is present on the right-side element, MC-1, rather than MC-3. Consequently, the omnidirectional pattern observed in State 1 transforms into a directional pattern with the maximum radiation pushed toward the right side in the direction of MC-3.

Finally, in State 4 (Fig. 7(d)), the current is excited on all three elements: the main monopole radiator (MC-2) and both parasitic elements (MC-1 and MC-3). This configuration enhances radiation in opposite directions from MC-1 and MC-3, leading to a bidirectional radiation pattern.

Fig. 7
Fig. 7
Full size image

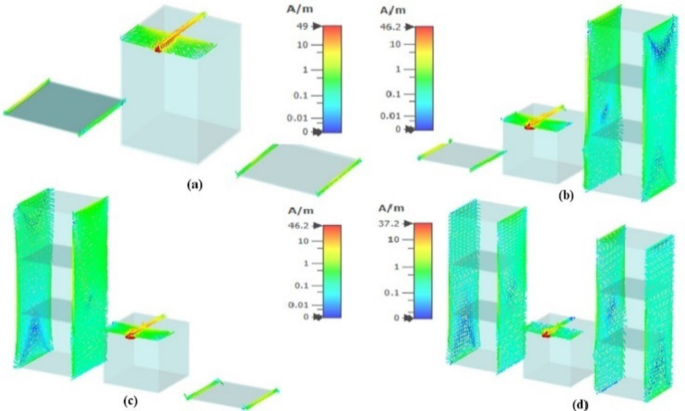

Surface current distributions for various states, i.e., (a) State-1 (b) State-2 (c) State-3 (d) State-4.

The proposed antenna exhibits different radiation patterns depending on the folding configuration of the parasitic elements (directors/reflectors). The 3D radiation patterns shown in Fig. 8 further illustrate how configuration choices influence performance. With folded parasitic elements (State-1), the antenna exhibits an omnidirectional pattern (Fig. 8(a)). The pattern becomes directional with changes in the main lobe direction when either one or both parasitic magic cubes are unfolded (Fig. 8(b-d)). State-1 shows a gain of 3.41 dBi and an omnidirectional pattern. Likewise, in State-2, the antenna exhibits a gain of 7.94 dBi, and the main lobe points to 90° with a 3 dB beam width of 62°. Figure 8(c) illustrates state 3, which is similar to State-2 except for the direction of maximum radiation in the opposite direction. Finally, in State-4, the antenna shows bidirectional behavior and a gain of 9.07 dBi, and the main lobe points toward 88° and 92°, with a 3 dB beamwidth recorded as 51°.

Figure 9(a) compares the simulated and measured reflection coefficients for State-1, where both parasitic elements act as directors. The slight frequency shift and reduced antenna size due to the folded elements are evident. Figure 9(b) and 9(c) compare the results for States 2 and 3, where the parasitic elements act as directors and reflectors alternatively. State-3 has a similar pattern to State-2, with the main radiation direction flipped due to the swapped configuration. Figure 9(d) shows the reflection coefficient for State-4, where both elements act as reflectors. The slight left shift is due to the increased size of the antenna with unfolded elements. We designed the antenna to operate at 2 GHz however as the main radiating structure is a resonating element it can be easily scaled to any frequency band by changing its electrical length or by using some other origami substrate like Polyethylene terephthalate (PET). For adapting the design to higher frequencies than 2 GHz the overall antenna size will decrease whereas its overall size will increase for lower frequency applications.

Fig. 8
Fig. 8
Full size image

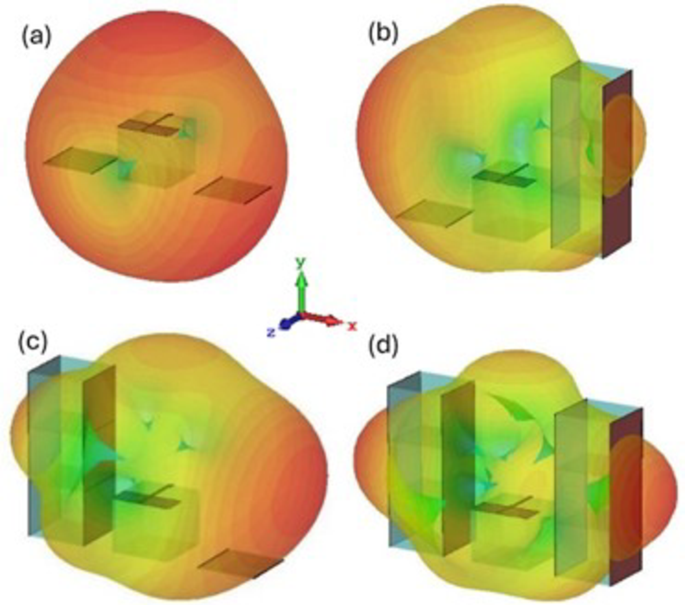

3D radiation pattern of the proposed design for four different states: (a) State 1, (b) State 2, (c) State 3, and (d) State 4.

Fig. 9
Fig. 9
Full size image

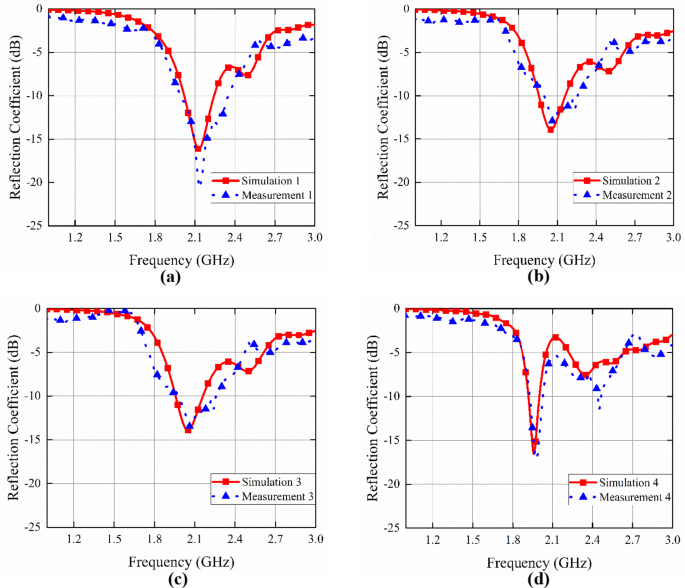

Simulated and measured reflection coefficients for different states: (a) State 1 (b) State 2 (c) State 3 (d) State 4.

The normalized simulated and measured radiation patterns in the E-plane (similar for all states and showing donut-shaped behavior) are presented in Fig. 10.

Fig. 10
Fig. 10
Full size image

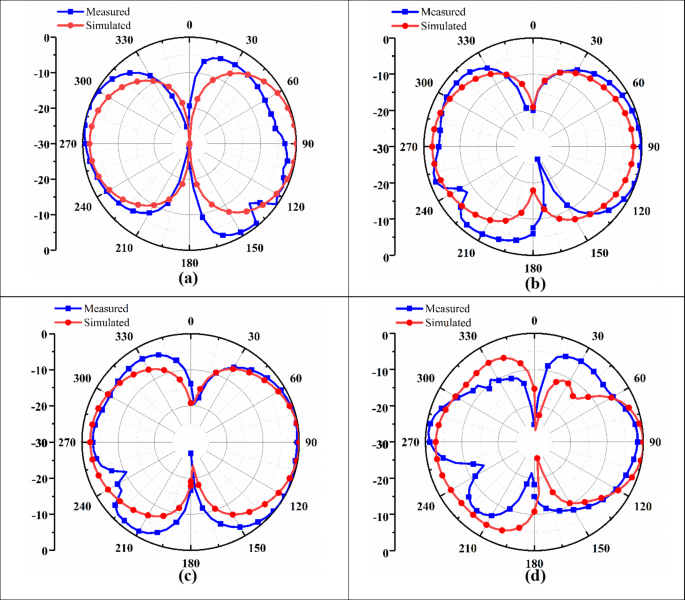

Simulated and measured normalized radiation patterns in the E-Plane for different States: (a) State 1 (b) State 2 (c) State 3 (d) and State 4.

Fig. 11
Fig. 11
Full size image

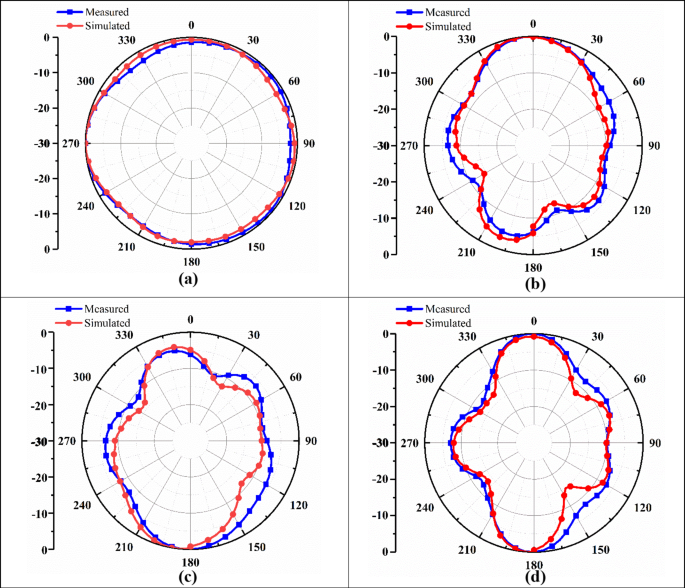

Simulated and measured normalized radiation patterns in the H-Plane for different States: (a) State 1 (b) State 2 (c) State 3 (d) and State 4.

The normalized simulated and measured radiation patterns in the H-plane are presented in Fig. 11. State-1 exhibits omnidirectional behavior, whereas States-2 and 3 show directional behavior with beam switching capabilities of ± 90° and a 3 dB beam width of 62°. Finally, State-4 exhibits a bidirectional pattern with the main lobe at 88° and 92° and a 3 dB beam width of 51°. The final optimized variables with their optimum values are summarized in Table I.

Table 1 Optimization of the antenna parameters.
Full size table
Table 2 Comparison with state-of-the-art methods.
Full size table

Table 2 compares our proposed design with other reconfigurable antenna design types. Our proposed design offers several advantages over existing origami-based reconfigurable antenna designs. In27, the antenna height changes in frequency, but its large size (100 mm × 100 mm base, 273 mm height) hinders deployment in certain applications. Similarly, the SMP hinge antenna in22 offers good gain at moderate cost; it requires a hot plate for actuation, limiting its practicality. The design in25 lacks reconfigurability but achieves compactness and improved directivity solely through actuation. The DNA-inspired antenna in26 offers optimal gain, but its square substrate restricts its use on curved surfaces. The conical spiral antenna in28 achieves frequency and polarization reconfiguration, but its planar stage dimensions and intricate fabrication steps pose challenges. In contrast, our proposed design stands out for its simplicity, low cost, and significantly high gain, making it a compelling choice for diverse conformal and IoT applications.

Conclusion

This work introduces a versatile, deployable pattern-reconfigurable origami antenna capable of switching its radiation pattern across four distinct states. It can be easily folded and unfolded, making it ideal for portable and space-constrained applications. The proposed antenna is cost-effective as readily available copper tape is used as the conductor part, and standard print paper is employed as the substrate part of the antenna. The origami-inspired design allows for rapid deployment, saving time and effort. The antenna’s radiation pattern can be dynamically adjusted to optimize performance for different scenarios. The proposed antenna can steer its beam to different intended locations by just folding the mechanism.

The innovative origami magic cube design, which is fabricated from a simple sheet of paper and copper tape by simple folding or unfolding, can direct its beam between ± 90° with a 62° 3 dB beam width in State-2 and State-3 and demonstrate a bidirectional pattern by pointing its beam at 88° and 92° with a 3 dB beam width of 51°, respectively. It achieves a maximum gain of 9 dBi with an impedance bandwidth of 10.5%. These features are combined to create a compact, deployable antenna solution with remarkable adaptability for diverse wireless communication needs.

Beyond its cost-effectiveness, the simplicity and reconfigurability inherent in origami-based designs hold the potential to revolutionize wireless technology. Specifically, this antenna’s ability to reconfigure its radiation pattern direction is a valuable tool for a range of indoor applications. In environments such as warehouses and factories, it can facilitate real-time equipment tracking and movement monitoring. This is just a glimpse into the vast potential of this reconfigurable antenna and its impact on the future of indoor wireless communication.
