Fig. 21
From: Experimental and numerical study on post-fire self-healing concrete for enhanced durability

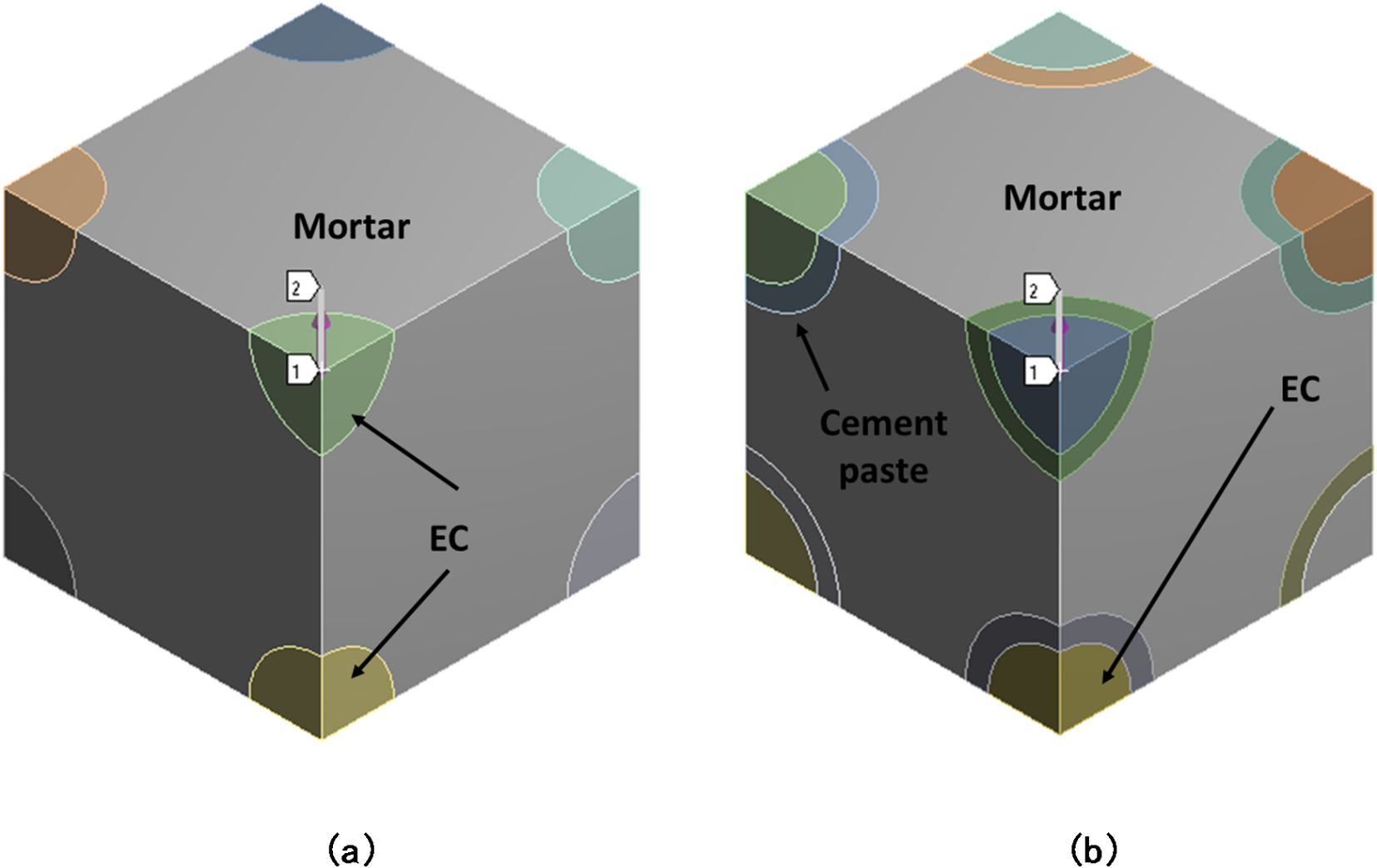

The body-centred FE model used for transient thermal analysis of the concrete samples (a) EC_CBC_10 and (b) ECC_CP_10.
