Introduction

Marine heavy metal pollution refers to the contamination of the ocean caused by certain heavy metals entering through various channels. Currently, the heavy metal elements primarily polluting marine environments include Hg, Cd, Pb, Zn, Cr, and Cu. Metals such as Cu, Fe, and Zn can serve as cofactors for some proteins and enzymes; however, excessive heavy metals can lead to cellular damage. Cu is involved in a variety of metabolic processes within organisms, acting as a cofactor for at least 30 types of redox enzymes1. Research indicates that after a 7-day exposure to 100 µM Cu, the metal accumulates predominantly within the cell walls, triggering stress responses, such as leaf wilting, thylakoid membrane damage, and a decrease in the levels of photosynthetic pigments like chlorophyll a and phycobilin2. Fe, Cu, and Zn are present in enzymes that remove reactive oxygen species, which partially associate with the thylakoid membranes3.

Macroalgae are important primary producers in coastal areas, primarily found in the intertidal zone and below. They contribute approximately 10% of marine primary productivity and have significant potential for carbon dioxide fixation4,5,6. However, human industrial activities still rely on coal, oil, natural gas, and other fossil fuels, which will inevitably continue to emit greenhouse gases such as carbon dioxide These gases absorb heat in the atmosphere, leading to a net increase in heat within the Earth’s system, with the oceans storing over 90% of the excess heat generated by greenhouse gas emissions7. The rise in ocean temperatures impacts the salinity, pH, and dissolved oxygen levels in marine environments, subsequently affecting marine life. Against the backdrop of a significant increase in seawater temperature (average + 0.80 °C), the coverage of macroalgae has declined, particularly over the past decade8.

Temperature is one of the important environmental factors affecting the growth and survival of macroalgae in the ocean. Changes in global temperatures and the specificity of habitats mean that algae are also affected by extreme environmental factors. Environmental conditions such as seawater temperature, nutrient levels, and wave erosion in intertidal zones significantly impact the rise and distribution of macroalgae9,10. Different types of algae have varying optimal temperature ranges, and the ideal growth temperature of macroalgae is related to the geographical area in which they are found11. Research indicates that when the temperature is below 25 °C, the absorption rate of ammonia nitrogen increases with rising temperatures12. When the temperature is lower than 25 °C, the growth rate of Sargassum horneri, Ulva lactuca, and Sargassum fusiforme increases with the temperature increases, but when the temperature is higher than 25 °C, the growth stops and decay appears13. Research shows that algae have a stronger antioxidant system under low-temperature stress. The photosynthetic components in their photosystem II (PSII), including the light-harvesting antenna, reaction center, electron donor side, and receptor side, can be damaged to varying degrees under low-temperature conditions, which also leads to a reduction in the expression levels of related proteins14. During high temperatures, algae activate heat shock responses that can harm the cellular membrane system, impacting enzyme activity and chlorophyll synthesis within the cells15. The photosynthetic activity of algae cultured under both low and high temperatures may also be suppressed and compensated via different mechanisms involving photosystem I (PSI) and mitochondrial oxidative phosphorylation16.

However, research on the effects of Cu at different temperatures on macroalgae, such as U. lactuca, is relatively scarce, providing an important entry point for our studies. Ulva lactuca belongs to the green algae division and is an important marine alga. It plays a crucial role in ecosystems, such as carbon fixation and oxygen release, and due to its rich nutritional components, it has extensive applications in agriculture, medicine, food, and industry17. As people increasingly focus on nutrition and health, the market demand for U. lactuca has been gradually rising, making it particularly important to explore its ability to adapt to different environmental conditions. Our current hypothesis is that temperature variations may significantly affect the growth and physiological processes of photosynthesis in U. lactuca, laying the groundwork for in-depth research. The main aim of this experiment is to investigate the effects of Cu on the growth, photosynthetic physiology, and chlorophyll fluorescence parameters of U. lactuca under different temperature conditions. By conducting Cu pollution experiments at varying temperatures, we can observe U. lactuca’s response mechanisms to heavy metal Cu under different thermal conditions, specifically including changes in growth rate, photosynthetic efficiency, chlorophyll content, and chlorophyll fluorescence characteristics. This will not only help us understand U. lactuca’s adaptability to environmental stress but also reveal the vulnerability and resilience of marine ecosystems in the face of pollution and climate change.

Materials and methods

Algal samples

Ulva lactuca were collected from the intertidal zone in Qingdao, Shandong Province, China, in May 2023, and were subsequently transported back at 4 °C to the laboratory. To remove sediment and epiphytic algae, the samples were washed thoroughly with sterilized seawater. Healthy algal specimens were then cultured in sterilized seawater supplemented with 60 μM NaNO3 and 8.0 μM NaH2PO4 to meet the nutritional requirements for their normal growth at 150 μmol photons m−2 s−1 of 20 °C, with a light/dark cycle of 12:12 h. The culture medium was renewed every 2 days.

Experimental design

After 3 days of pre-cultivation, 0.05 g of the algae was transferred into a flask containing 500 mL of sterilized seawater and cultured under aeration in a GXZ-300C intelligent lighting incubator, following the research methods described by Wang et al.18. The sterilized seawater was similarly enriched with 60 μM NaNO3 and 8.0 μM NaH2PO4 to ensure the algae had adequate nutrition for normal growth19. The experiment used three different Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu) and temperatures (10 °C, 15 °C, and 20 °C) to explore their effects on algal growth and photosynthetic physiological characteristics. Cu concentration was selected based on the concentration of Cu found in the Bohai Sea and Port Adelaide, South Australia, with a Cu concentration of 1.92 μg L−1 and 64.64 μg L−1, respectively20,21. Natural seawater from the Yellow Sea without added CuSO4 (Cu concentration of 1.28 μg L−1) was used as a control (low Cu treatment). Analysis was conducted using a flame-less graphite furnace atomic absorption spectrometer22. The optimal growth temperature for U. lactuca is between 15 and 20 °C23. However, factors such as extreme weather conditions, water depth, and seasonal fluctuations often lead to temperature variations in spring and autumn. Based on this, the culture temperatures were set to 10 °C, 15 °C, and 20 °C, respectively. The light intensity and light/dark cycle remained consistent with those used during pre-cultivation, and the sterilized seawater was also replaced every 2 days. After the relative growth rate (RGR), was measured every 2 days, and stabilized after 1 week of cultivation, the rate of photosynthesis, respiration rate, chlorophyll content, and fluorescence parameters were measured.

Measure of growth

RGR was calculated every 2 days by weighing the algae after removing surface moisture with a paper towel to measure the fresh weight. The RGR was calculated according to Ma et al.19.

Measurement of the rates of photosynthesis and respiration

The net photosynthesis and respiration rates of thalli were measured by a Clark-type oxygen electrode (YSI Model 5300A, USA). The algae were cut into approximately 1 cm squares, and 0.02 g samples were placed into a reaction chamber containing 8 mL of culture seawater. 150 µmol photons m−2 s−1 were used in this experiment, with the temperature set to that of the respective algal treatments. The samples were dark-adapted in the reaction chamber for 5 min, during which the initial values were recorded. Measurements were taken every 60 s until the difference stabilized, and the decrease in O2 was used to calculate the respiration rate. Following this, the net photosynthesis rate was measured under culture light intensity and temperature, using the same experimental procedure as for the respiration rate. The calculation formula is according to Xu et al.23 as follows:

$${\text{P}} = 60 \times {\text{a}} \times {\text{d}} \times {\text{V}}/{\text{m}}$$

where a represents the oxygen solubility of seawater at different culture temperatures, d represents the difference of change of O2 per minute, V represents the volume of seawater in the reaction chamber, and m represents the fresh weight of the algae.

Chlorophyll fluorescence measurements

Fluorescence parameters of the thalli were determined using a chlorophyll fluorescence instrument (AP100-C). After subjecting the algae samples to dark adaptation for 20 min, they were placed in plastic cuvettes. The actinic light was set to simulate growth light intensity, allowing for the measurement of relative electron transport rate (rETR), light response curves, and rapid fluorescence kinetic curves (OJIP), from which radar plot-related data were calculated (Table 1).

$${\text{rETR}}\;\left( {\upmu {\text{mol}}\,{\text{e}}^{ - 1} \,{\text{m}}^{ - 2} \,{\text{s}}^{ - 1} } \right) = 0.5 \times {\text{Yield}} \times {\text{PAR}}$$
Table 1 OJIP transient parameters related to JIP-test.
Full size table

The yield indicates the effective photochemical quantum yield of PSII in response to illumination, with 0.5 representing the percentage of absorbed light relative to the total incident light. The PAR indicates the intensity of the photochemical light. After exposure to six different light intensities (0, 200, 400, 600, 800, and 1000 150 μmol photons m−2 s−1), the light response curve of thalli was measured, and the maximum relative electron transport rate (rETRmax), light utilization efficiency (α), and light saturation intensity (Ik) were obtained through curve fitting24,25.

Determination of the pigment content

About 0.02 g algal sample was treated in the dark at 4 °C with 10 mL of anhydrous methanol for 24 h to extract the chlorophyll. The absorbance of the samples was measured at 652 nm, and 665.2 nm using a UV–visible spectrophotometer (Ultravist 3300 Pro, Amersham Biosciences Ltd. Sweden). The contents of chlorophyll (Chl a) a and Chl b were calculated according to the methodology described by Porra et al.26.

Data analysis

The results were expressed as the mean ± standard deviation. Data were processed using Origin 9.0 software, three replicates were taken for each treatment. A 95% confidence interval was set for all tests. Lowercase letters represent the significant difference among the Cu concentrations at the same temperature (P < 0.05). Uppercase letters represent the significant difference among the temperatures at the same Cu concentration (P < 0.05). Visualization of the clustering heat map analysis of growth and photosynthetic physiological parameters was performed using TBtools software27.

Results

Growth rates

At 10 °C, compared to LCu, the RGR of thalli under MCu and HCu decreased by 23.85% and 52.09%, respectively (P < 0.05) (Fig. 1). At 15 °C, compared to LCu, the RGR in MCu and HCu conditions decreased by 22.38% and 32.95%, respectively (P < 0.05); at 20 °C, compared to LCu, the RGR in HCu conditions decreased by 26.96% (P < 0.05). When comparing RGR under LCu at 10 °C, the rates increased by 53.08% and 65.89% at 15 °C and 20 °C, respectively (P < 0.05). For MCu, at 10 °C, RGR increased by 55.92% and 113.66% at 15 °C and 20 °C, respectively (P < 0.05). Under HCu, when compared to the RGR at 10 °C, the rates increased by 114.22% and 152.88% at 15 °C and 20 °C, respectively (P < 0.05).

Fig. 1
figure 1

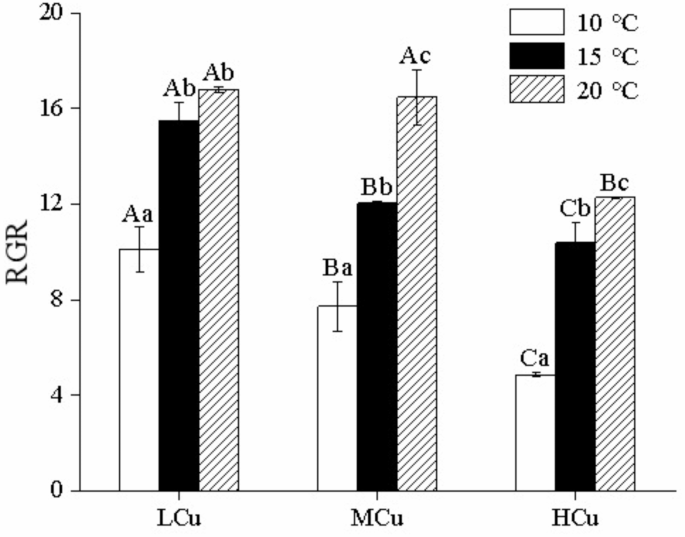

Relative growth rate of U. lactuca at different temperatures (10 °C, 15 °C, and 20 °C) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu). Values represent the mean ± SD (n = 3). Different letters represent significant differences (P < 0.05) between different Cu concentrations at the same CO2 concentration. Uppercase letters indicate the analysis of variance for each parameter under different Cu concentrations at the same temperature, while lowercase letters indicate the analysis of variance for each parameter under different temperatures at the same Cu concentration. The horizontal line indicated significant differences among CO2 concentrations while maintaining the same Cu concentrations (P < 0.05).

Full size image

Photosynthesis and respiration rates

At 10 °C, compared to LCu, the net photosynthetic rate of the thalli decreased by 35.22% and 51.94% under MCu and HCu, respectively (P < 0.05) (Fig. 2A). At 15 °C, compared to LCu, the net photosynthetic rate increased by 8.36% under MCu (P < 0.05), while it decreased by 31.07% under HCu (P < 0.05); at 20 °C, the net photosynthetic rate decreased by 18.95% under HCu compared to LCu (P < 0.05). In the case of LCu, the net photosynthetic rates increased by 103.72% and 104.97% at 15 °C and 20 °C, respectively, compared to the rate at 10 °C (P < 0.05). Under MCu, the net photosynthetic rates increased by 240.79% and 242.55% at 15 °C and 20 °C compared to 10 °C, respectively (P < 0.05). Under HCu, when compared to the net photosynthetic rate at 10 °C, the rates increased by 192.18% and 245.67% at 15 °C and 20 °C, respectively (P < 0.05).

Fig. 2
figure 2

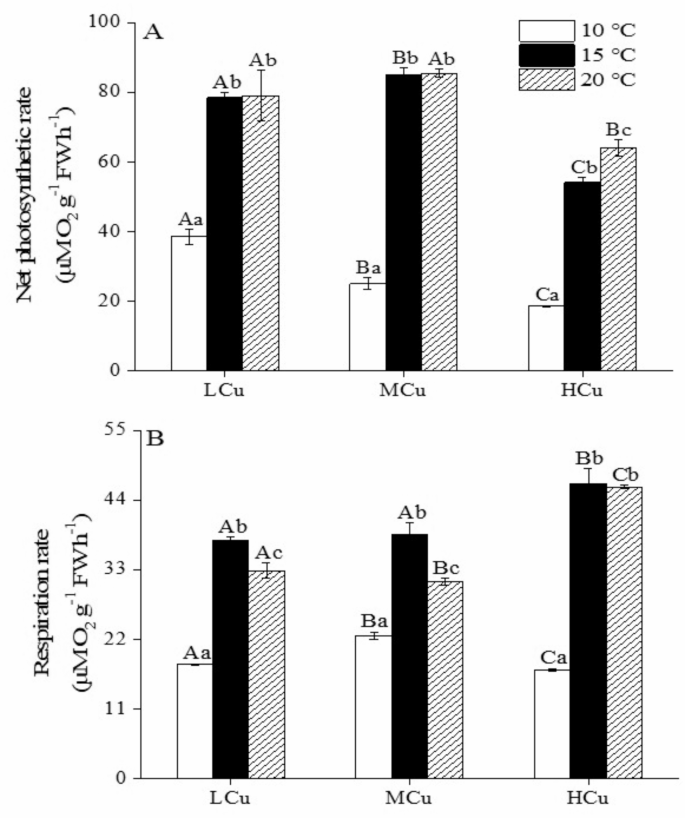

Photosynthetic rate (A) and respiration rate (B) of U. lactuca at different temperatures (10 °C, 15 °C, and 20 °C) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu). Values represent the mean ± SD (n = 3). Different letters represent significant differences (P < 0.05) between different Cu concentrations at the same CO2 concentration. Uppercase letters indicate the analysis of variance for each parameter under different Cu concentrations at the same temperature, while lowercase letters indicate the analysis of variance for each parameter under different temperatures at the same Cu concentration. The horizontal line indicated significant differences among CO2 concentrations while maintaining the same Cu concentrations (P < 0.05).

Full size image

At 10 °C, compared to LCu, the respiratory rate of thalli increased by 25.14% under MCu (P < 0.05), while it decreased by 4.75% under HCu (P < 0.05) (Fig. 2B). At 15 °C, compared to LCu, the respiratory rate increased by 23.97% under HCu (P < 0.05); at 20 °C, compared to LCu, the respiratory rate decreased by 5.31% under MCu and increased by 40.31% under HCu (P < 0.05). In LCu conditions, respiratory rates increased by 108.87% and 82.40% at 15 °C and 20 °C, respectively, compared to that at 10 °C (P < 0.05). Under MCu, the respiratory rates increased by 71.27% and 38.01% at 15 °C and 20 °C compared to 10 °C, respectively (P < 0.05). Under HCu, when compared to the respiratory rate at 10 °C, the rates increased by 171.83% and 168.68% at 15 °C and 20 °C, respectively (P < 0.05).

Chlorophyll fluorescence parameters

At 10 °C, no significant difference was observed in the maximum relative electron transport rate (rETRmax) of thalli compared to LCu under MCu and HCu conditions (P > 0.05) (Fig. 3 and Table 2). At 15 °C, rETRmax decreased by 22.50% and 31.42% under MCu and HCu conditions, respectively, compared to LCu (P < 0.05); at 20 °C, rETRmax decreased by 18.00% and 26.93% under MCu and HCu conditions, respectively, compared to LCu (P < 0.05). In LCu, rETRmax increased by 86.39% and 278.86% at 15 °C and 20 °C, respectively, compared to rETRmax at 10 °C (P < 0.05). Under MCu, rETRmax increased by 59.33% and 242.69% at 15 °C and 20 °C, respectively, compared to 10 °C (P < 0.05). Under HCu, rETRmax increased by 31.00% and 183.73% at 15 °C and 20 °C, respectively, compared to 10 °C (P < 0.05).

Fig. 3
figure 3

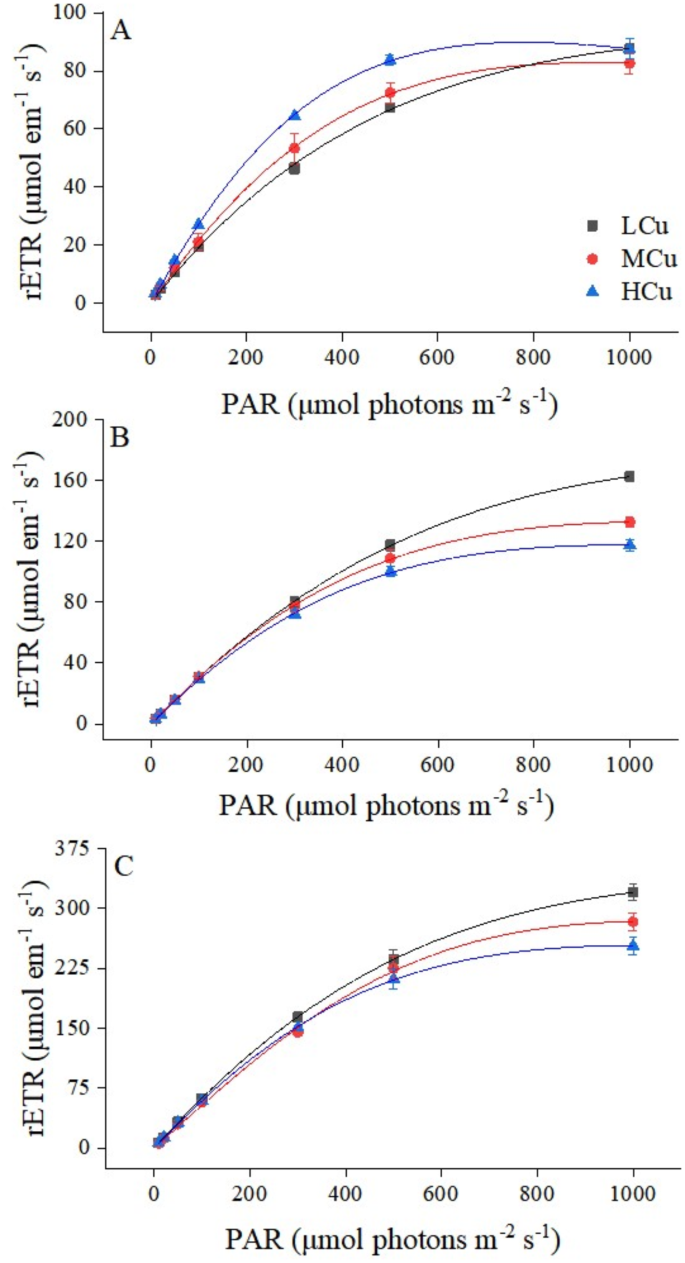

The rapid light curve of U. lactuca at different temperatures (10 °C, 15 °C, and 20 °C) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu).

Full size image
Table 2 The maximum relative electron transport rate (rETRmax), the efficiency of electron transport (α), and the saturating irradiance (Ik) of the rapid light curve of U. lactuca at different temperatures (10 °C, 15 °C, and 20 °C) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu). Different letters represent significant differences (P < 0.05)  between different Cu concentrations at the same CO2 concentration. Uppercase letters indicate the analysis of variance for each parameter under different Cu concentrations at the same temperature, while lowercase letters indicate the analysis of variance for each parameter under different temperatures at the same Cu concentration.
Full size table

At 10 °C, the efficiency of electron transport (α) of thalli increased by 42.86% under HCu compared to LCu (P < 0.05) (Fig. 3 and Table 2). At 15 °C, there was no significant difference in α between MCu and HCu compared to LCu (P > 0.05); however, at 20 °C, α decreased by 17.91% under MCu compared to LCu (P < 0.05). In LCu, α increased by 52.38% and 219.05% at 15 °C and 20 °C, respectively, compared to α at 10 °C (P < 0.05). Under MCu, α increased by 139.13% at 20 °C compared to 10 °C (P < 0.05). Under HCu, α increased by 3.33% and 110% at 15 °C and 20 °C, respectively, compared to 10 °C (P < 0.05).

At 10 °C, the saturating irradiance (Ik) decreased by 30.34% under HCu compared to LCu (P < 0.05) (Fig. 3 and Table 2). At 15 °C, Ik decreased by 22.92% and 27.98% under MCu and HCu conditions, respectively, compared to LCu (P < 0.05); at 20 °C, Ik decreased by 22.11% under HCu compared to LCu (P < 0.05). In LCu, Ik increased by 21.59% and 19.98% at 15 °C and 20 °C, respectively, compared to Ik at 10 °C (P < 0.05). Under MCu, Ik increased by 45.17% at 20 °C compared to 10 °C (P < 0.05). Under HCu, there was no significant difference in Ik at 15 °C and 20 °C compared to 10 °C (P > 0.05).

Chlorophyll a fluorescence OJIP transient curves and spider plots of JIP parameters

At 10 °C, the J, I, and P phase values of LCu were higher than those of MCu and HCu, with similar increases in the J, I, and P phase values of MCu and HCu. At 15 °C, the P phase value of LCu was higher than that of MCu and HCu, with the J and I phase increases of MCu being similar to those of LCu, while the J, I, and P phases of HCu were the lowest. At 20 °C, the J, I, and P phase values of LCu were the highest, and the J, I, and P phases of MCu and HCu showed a similar upward trend (Fig. 4).

Fig. 4
figure 4

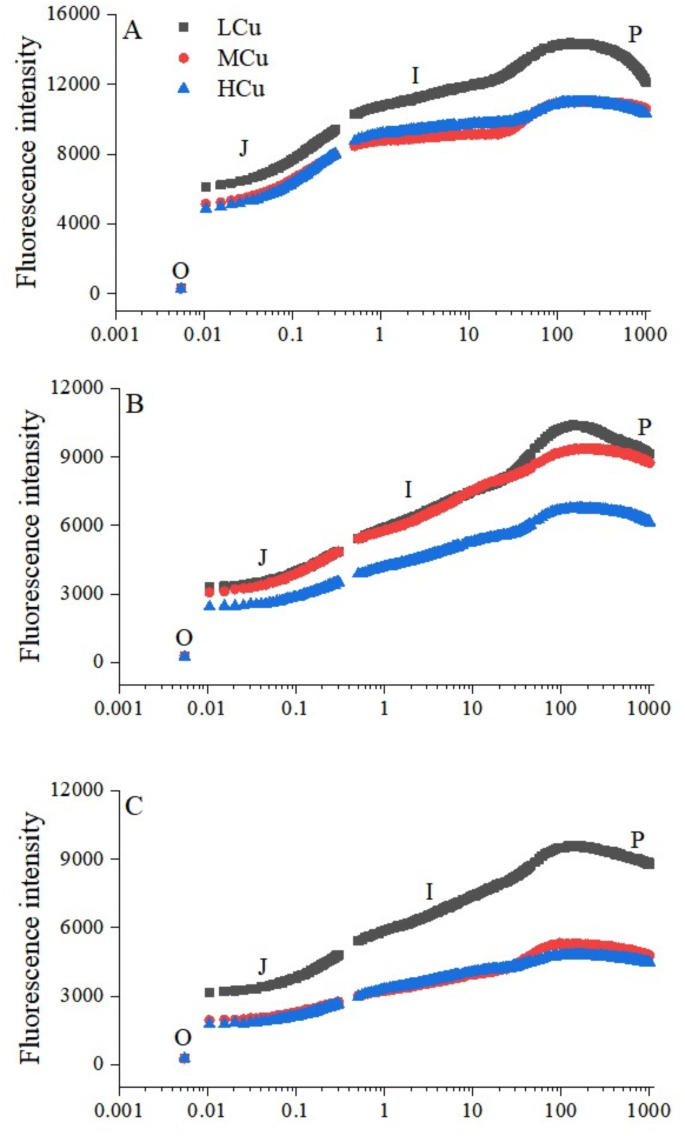

Chlorophyll a fluorescence OJIP transient curves of Ulva lactuca at different temperatures (10 °C, 15 °C, and 20 °C) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu). Each step in the figure indicates the minimal fluorescence intensity when all PSII reaction centers (RC) are open (the O step), the intensity at 2 ms (the J step), the intensity at 30 ms (the I step), and the maximal intensity when all PSII RCs are closed (the P step).

Full size image

Based on the parameters derived from the OJIP curve, relevant fluorescence parameter values were calculated, resulting in a radar chart (Table 1 and Fig. 5). From the chart, it could be observed that at 10 °C, the ABS/RC, DIo/RC, and REo/RC of MCu were higher than those of LCu and HCu. At 15 °C, the ETo/CSm, TRo/CSm, DIo/CSm, and ABS/CSm of HCu were significantly higher than those of LCu and MCu. At 20 °C, the ΦRo and REo/RC of HCu reached their lowest values, while the ABS/RC, TRo/RC, ETo/RC, and REo/RC of MCu reached their highest values, indicating that under HCu conditions, the algal cells absorbed more energy but failed to dissipate it completely, resulting in some damage to the algal cells.

Fig. 5
figure 5

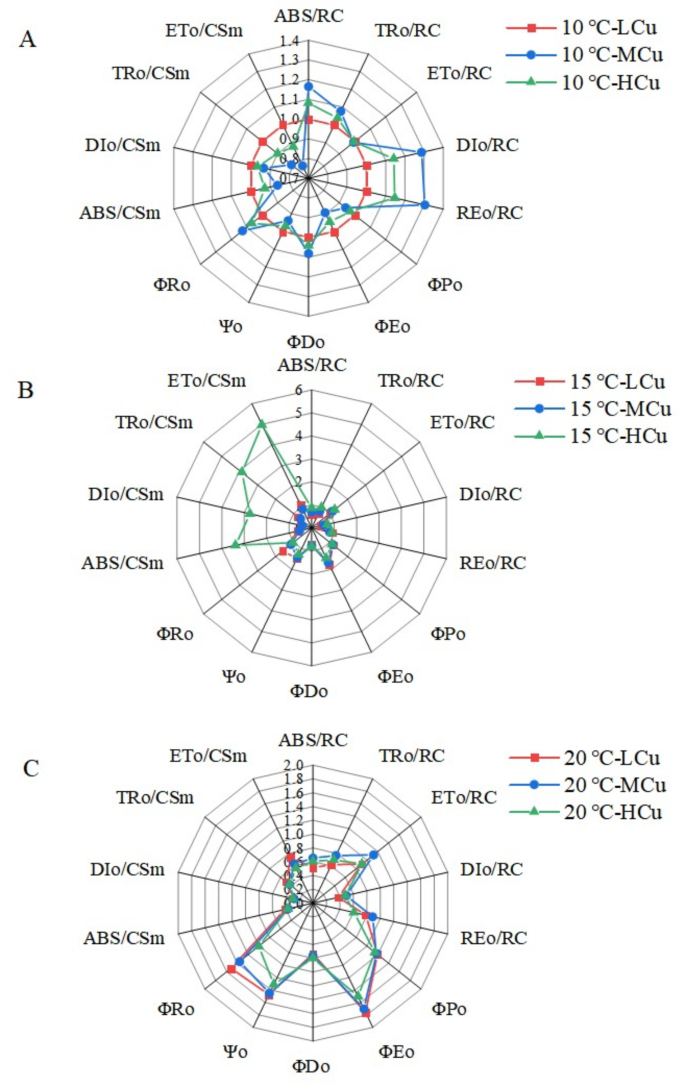

Spider plots of JIP parameters deduced from chlorophyll a fluorescence OJIP transient curves of Ulva lactuca at different temperatures (10 °C, 15 °C, and 20 °C) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu). For each parameter, the value of the control (closed circle) is set as 1.

Full size image

Pigment contents

At 10 °C, compared to LCu, the Chl a of thalli decreased by 8.58% under high copper concentration (HCu) (P < 0.05) (Fig. 6A). At 15 °C, compared to LCu, the Chl a of thalli decreased by 8.04% under HCu conditions. At 20 °C, compared to LCu, the Chl a of thalli decreased by 10.98% and 16.59% under MCu and HCu conditions respectively (P < 0.05). When under LCu, the Chl a of the algae increased by 22.39% and 43.92% at 15 °C and 20 °C respectively compared to the Chl a at 10 °C (P < 0.05). Under MCu, the Chl a of the algae increased by 24.34% and 37.68% at 15 °C and 20 °C respectively compared to the Chl a at 10 °C (P < 0.05). Under HCu, the Chl a of the algae increased by 23.12% and 31.31% at 15 °C and 20 °C respectively compared to the Chl a at 10 °C (P < 0.05).

Fig. 6
figure 6

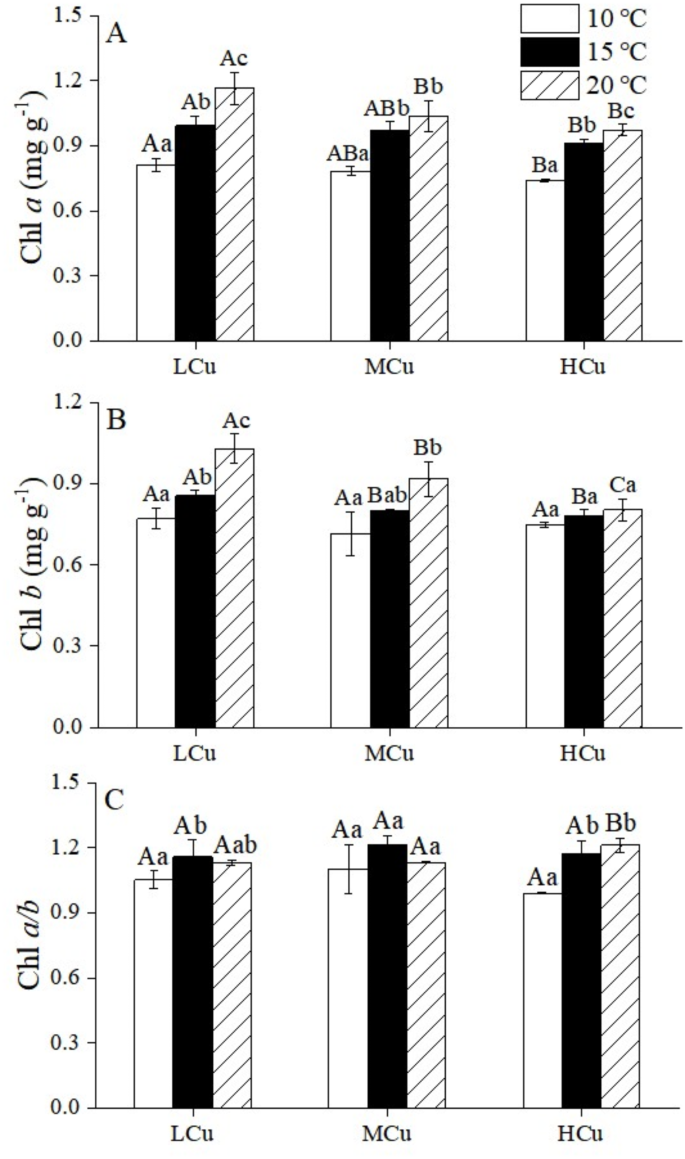

The contents of Chl a (A), Chl b (B), and Chl a/b rate (C) of U. lactuca at different temperatures (10 °C, 15 °C, and 20 °C) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu). Values represent the mean ± SD (n = 3). Different letters represent significant differences (P < 0.05) between different Cu concentrations at the same CO2 concentration. Uppercase letters indicate the analysis of variance for each parameter under different Cu concentrations at the same temperature, while lowercase letters indicate the analysis of variance for each parameter under different temperatures at the same Cu concentration. The horizontal line indicated significant differences among CO2 concentrations while maintaining the same Cu concentrations (P < 0.05).

Full size image

At 10 °C, there was no significant difference in Chl b of thalli under MCu and HCu compared to LCu (P > 0.05) (Fig. 6B). At 15 °C, compared to LCu, the Chl b of thalli decreased by 6.40% and 8.98% under MCu and HCu conditions respectively (P < 0.05); at 20 °C, compared to LCu, the Chl b of thalli decreased by 11.03% and 22.01% under MCu and HCu conditions respectively (P < 0.05). Under LCu, the Chl b of the thalli increased by 11.02% and 33.53% at 15 °C and 20 °C respectively compared to the Chl b at 10 °C (P < 0.05). Under MCu, the Chl b of the thalli increased by 11.94% and 27.97% at 15 °C and 20 °C respectively compared to the Chl b at 10 °C (P < 0.05). Under HCu, there was no significant difference in Chl b of the algae at 15 °C and 20 °C compared to the Chl b at 10 °C (P > 0.05).

At 10 °C and 15 °C, there was no significant difference in the Chl a/b ratio of thalli under MCu compared to LCu (P > 0.05) (Fig. 6C). At 20 °C, compared to LCu, the Chl a/b ratio of Ulva increased by 7.09% under HCu conditions (P < 0.05). Under LCu, the Chl a/b ratio of the algae increased by 10.25% and 7.65% at 15 °C and 20 °C respectively compared to the Chl a/b ratio at 10 °C (P < 0.05). Under MCu, there was no significant difference in the Chl a/b ratio of the algae at 15 °C and 20 °C compared to the Chl a/b ratio at 10 °C (P > 0.05). Under HCu, the Chl a/b ratio of the algae increased by 18.26% and 22.38% at 15 °C and 20 °C respectively compared to the Chl a/b ratio at 10 °C (P < 0.05).

Cluster heatmap analysis

Through cluster heatmap analysis (Fig. 7), the physiological and photosynthetic parameters of U. lactuca under different temperatures (LT: 10 °C, MT: 15 °C, HT: 20 °C) and Cu concentrations (LCu, MCu, and HCu) showed significant clustering differences, categorized into two functional groups: (1) Growth and photosynthesis-related parameters: including maximum relative electron transport rate (rETRmax), electron transport efficiency (α), saturation irradiance (Ik), net photosynthetic rate, relative growth rate (RGR), Chl a, and Chl b content. (2) Stress response parameters: respiration rate and Chl a/b ratio. For growth and photosynthetic parameters, under LT-HCu, the net photosynthetic rate (color bar value close to − 2) and rETRmax (value − 1.8) significantly decreased. The RGR (value − 2.0) reached its lowest level. At HT-MCu, the photosynthetic efficiency peaked, with the net photosynthetic rate (value close to 2) reaching its maximum. Under HT-LCu, the RGR (value close to 1) was significantly higher than other high-temperature treatments. For stress response parameters, the respiration rate in the MT-HCu group sharply increased (value 2). In the HT-HCu group, the respiration rate also rose (value 1.5), but photosynthetic parameters collapsed entirely. The Chl a/b ratio was highest in the HT-HCu group (value 1.5). Conversely, the LT-HCu group showed a lower Chl a/b ratio (value − 2). For interactive effects of temperature and Cu, all low-temperature treatments (LT-LCu, LT-MCu, LT-HCu) exhibited significantly reduced Ik and Chl b content, with weak Cu concentration effects. In the HT-HCu group, parameters such as net photosynthetic rate, RGR, rETRmax, α, and Chl a/b ratio deteriorated (values mostly below − 1.5), while the respiration rate peaked. The MT-MCu group showed intermediate parameter values (e.g., net photosynthetic rate near 0), indicating that moderate temperature partially alleviated Cu toxicity, though medium Cu still caused mild photosynthetic inhibition.

Fig. 7
figure 7

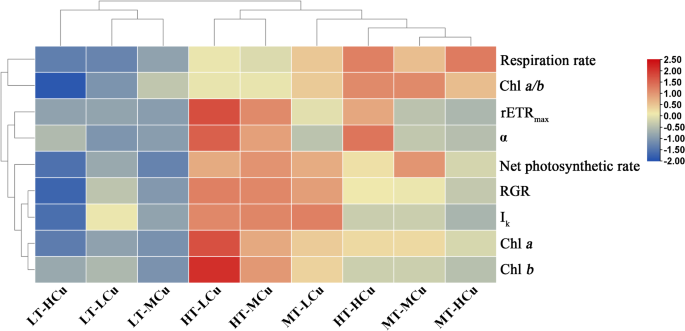

Cluster heatmap analysis of the relative growth rate, net photosynthetic rate, respiration rate, Chl a content, Chl b content, Chl a/b ratio, maximum relative electron transport rate (rETRmax), electron transport efficiency (α), and saturating irradiance (Ik) of U. lactuca under different temperatures (10 °C, low temperature, LT; 15 °C, medium temperature, MT; 20 °C, high temperature, HT) and Cu concentrations (natural seawater, LCu; 16 μg L−1, MCu; 32 μg L−1, HCu).

Full size image

Discussion

Photosynthesis is a complex metabolic activity in living organisms; it is a biological pathway that can convert light energy and is also an important component of the Earth’s carbon cycle. Macroalgae can concentrate heavy metals to a significant extent. Generally, the accumulation of specific metals in plants depends on their uptake ability and the functionality of intracellular binding sites28. The cell wall of plant cells contains proteins and carbohydrates that can bind with metal ions. When the binding sites on the cell wall become saturated with metal ions, heavy metal ions from metabolic processes can accumulate in large quantities within the cell, potentially leading to toxic effects that impact cell growth and metabolism29. Growth is the comprehensive manifestation of photosynthesis in algae under heavy metal stress30. The results of this study show that at the same temperature, the RGR of thalli declined as the concentration of Cu increased. At 10 °C, the decrease in growth rate in the HCu condition compared to the LCu condition was the most pronounced, indicating that the growth was inhibited by the increase in Cu concentration. This is consistent with the findings of Kondzior and Butarewicz31, who observed that under increasing Cu concentrations, Chlorella vulgaris continued to grow, but its growth was significantly inhibited. Bajguz32 also noted that heavy metals could suppress the growth of Chlorella vulgaris. Han et al.33 compared the Cu tolerance of two green algae species Ulva pertusa and U. armoricana. They found that exposure to Cu concentrations of 25–50 μg L−1 did not affect the growth of U. armoricana, but the growth of U. pertusa was significantly reduced. The difference in Cu sensitivity between the two algae species could influence their survival in coastal waters, thereby affecting the composition of coastal communities. Under the same Cu conditions, with the temperature increased, the RGR of the algal gradually rose. When at relatively low temperatures, the RGR increased with rising temperature, showing significant differences, which indicated that higher temperatures alleviate the toxic effects of Cu on algae and promote the growth of thalli. These findings were consistent with the studies by Ma et al.18. On the early life history of kelp, Leal34 pointed out that while ocean warming had no significant impact on the early life history of kelp, the addition of heavy metal Cu caused a moderate negative effect on the stages of meiosis and spore germination. Cu is one of the essential trace elements for plant growth; it plays a role not only in the antioxidative mechanisms of photosynthesis but also in the catalytic processes of many enzymes that are crucial for algal growth and development. In the process of photosynthesis, Cu helps maintain the stability of the electron transport chain, thereby ensuring that algae can capture light energy and convert it into chemical energy. However, when the concentration of Cu exceeds the tolerance level of algal, it may trigger a series of adverse reactions35. Research indicated that excess Cu interfered with various physiological processes in photosynthetic cells, particularly the functions of the photoreaction systems. The D1 protein, as a vital component of the photoreaction center, bears the pressure of photooxidation; excessively high concentrations of Cu may make it more susceptible to damage35,36. Damage to the D1 protein has direct consequences on the photosynthetic efficiency of macroalgae, subsequently affecting algal growth and Yield37.

Under conditions of 10 °C, the net photosynthetic rate of thalli decreased with increasing Cu concentration, which was consistent with the RGR results, indicating that the growth of thalli was suppressed by Cu concentration. In the conditions of 15 °C and 20 °C, there were no significant differences in the net photosynthetic rate between the LCu and MCu conditions, but both were higher than the net photosynthetic rate under HCu conditions, which was roughly similar to the RGR results, indicating that high concentrations of Cu inhibit the photosynthetic rate of thalli, thereby suppressing its growth. This might be due to the toxicity of Cu primarily affecting photosynthesis; when the Cu concentration in seawater was too high, Cu could replace Fe to form a “sulfur-iron cluster”, leading to electron overflow, which impacted the photosynthesis and respiration of algal, causing cellular damage38. The respiration rate of thalli reached its peak under HCu conditions at 15 °C and 20 °C, further illustrating that respiration could dissipate excess energy within algal, mitigating Cu-induced damage. This result was consistent with research by Jiang et al.39, which found that when treating thalli with three concentrations of Cd, increasing Cd concentrations significantly raised the respiration rate while pigment content decreased, indicating an increased energy demand for detoxifying heavy metals. The effect of heavy metal Cd on the growth of thalli may be linked to the suppression of pigment synthesis, downregulation of light energy utilization efficiency, reduction in photosynthetic rate, and increased respiration rate, subsequently leading to a decrease in organic matter accumulation and inhibited growth. Temperature and Cu had significant effects on the photosynthetic activity of Scenedesmus quadricauda40. Cu reduced the Fv/Fm ratio, increased the production of reactive oxygen species (ROS), and caused severe physiological damage to the cells.

Under three identical temperature conditions, both Chl a and Chl b showed a decreasing trend with increasing Cu concentration. The reduction in chlorophyll content might be due to heavy metals causing chlorophyll denaturation, preventing photons from being absorbed and transferred to the reaction center39. This experiment is consistent with the findings of Hindarti41, where the content of Chl a and carotenoids in Nitzschia sp. decreased after treatment with heavy metals Cu and Cd. In this study, under LCu, MCu, and HCu conditions, the content of Chl a and Chl b increased with rising temperatures, suggesting that temperature alleviated the toxic effects of Cu on U. lactuca. Huang42 studied Chlorella and found that at low temperatures, the damage from membrane lipid peroxidation was greater than at high temperatures. High temperatures could promote the synthesis of superoxide dismutase in the antioxidant enzyme system, while low temperatures enhance the synthesis of catalase, indicating that the varying sensitivity of different antioxidant enzymes to temperature ensures the antioxidant capacity of algal cells at different temperatures42. At 10 °C, the rETRmax and Ik were highest under low Cu treatment, indicating the highest potential maximum relative electron transfer efficiency and tolerance to strong light. Under HCu, the efficiency of light energy utilization was highest, but the tolerance to strong light was lowest; at 15 °C and 20 °C, the relative electron transfer rate was highest under low Cu treatment and lowest under HCu. The increase in temperature improved the efficiency of light energy utilization, leading to an increase in chlorophyll content and enhanced photosynthesis, thereby increasing the RGR of U. lactuca. This was similar to the findings of Huang43, which indicated that low temperatures, along with high light exposure at low temperatures, might cause the closure of the PSII reaction center in Gracilaria, reducing PSII activity and effective light energy conversion efficiency, ultimately inhibiting algal growth to a certain extent. The OJIP curve primarily demonstrates the changes in fluorescence at various points of the sample, reflecting variations in the primary photochemical reactions of PSII, as well as changes in the structure and state of the photosynthetic system. In this study, after 20 min of dark treatment, the OJIP curve of U. lactuca showed an overall upward trend. Under 10 °C conditions, MCu and LCu had a significant impact on the OJIP curve of U. lactuca, with DIo/RC, REo/RC, and ABS/RC all higher than LCu, indicating that increased Cu concentration stressed the reaction center, increasing its thermal dissipation energy. This might be due to high concentrations of heavy metal stress damaging the reaction active center of PSII, reducing the number of active centers and causing some to close, while also inhibiting electron transfer from PSII QA− to the PQ pool, resulting in toxicity to both the electron donors on the donor side and the electron acceptors on the acceptor side of PSII, thereby suppressing photosynthesis42. In this study, with increasing temperature, the parameters of the PSII reaction center in thalli also continuously increased, indicating that temperature promoted the activity of the PSII reaction center, thereby enhancing photosynthesis. This is consistent with the findings of Zhong et al.14, demonstrating that PSII’s ability to transfer electrons downstream through the electron chain strengthens, increasing the energy captured from light used for electron transfer.

The clustered heatmap thoroughly analyzed the growth and photosynthetic physiological parameters of U. lactuca under varying temperature and Cu concentration conditions. It was evidenced that when high temperature and elevated Cu concentration occurred simultaneously, parameters such as net photosynthetic rate, RGR, and rETRmax significantly declined, respiratory rate peaks, and the Chl a/b ratio increased, indicating that the algae entered an irreversible stress state characterized by energy metabolism imbalance. In all low-temperature treatments (10 °C), Ik and Chl b content significantly decreased, and the variation in Cu concentration (LCu, MCu, HCu) had a lesser impact on them. Low temperature combined with high Cu further inhibited photosynthesis (net photosynthetic rate color scale − 2) and growth (RGR color scale − 2.0), but stress response parameters (such as respiratory rate) did not significantly increase, indicating that low temperature itself was the primary cause of physiological inhibition in the algae. Under MT-MCu conditions, photosynthetic parameters fell between those of LT-LCu and HT-HCu, demonstrating that a medium temperature environment could partially mitigate the effects of Cu stress. However, medium Cu still resulted in a slight decrease in photosynthetic efficiency, suggesting a nonlinear interaction between Cu toxicity and temperature.

Conclusions

At the same temperature, the RGR of U. lactuca significantly decreased with increasing Cu concentration. However, under the same Cu concentration conditions, the RGR of the algae gradually increased with rising temperatures. Furthermore, compared to the net photosynthesis rate and chlorophyll content at 10 °C, the increase in net photosynthesis rate and chlorophyll content at 15 °C and 20 °C under low Cu concentration conditions were significantly smaller than the decreases observed at the same temperatures under high Cu concentration conditions. These results indicated that high concentrations of Cu inhibit algal growth at the same temperature, while a moderate increase in temperature could alleviate the toxic effects of Cu on the algae under the same Cu treatment. Such findings not only help us understand the adaptability of U. lactuca to environmental stress but also reveal the vulnerability and resilience of marine ecosystems in the face of pollution and climate change.
