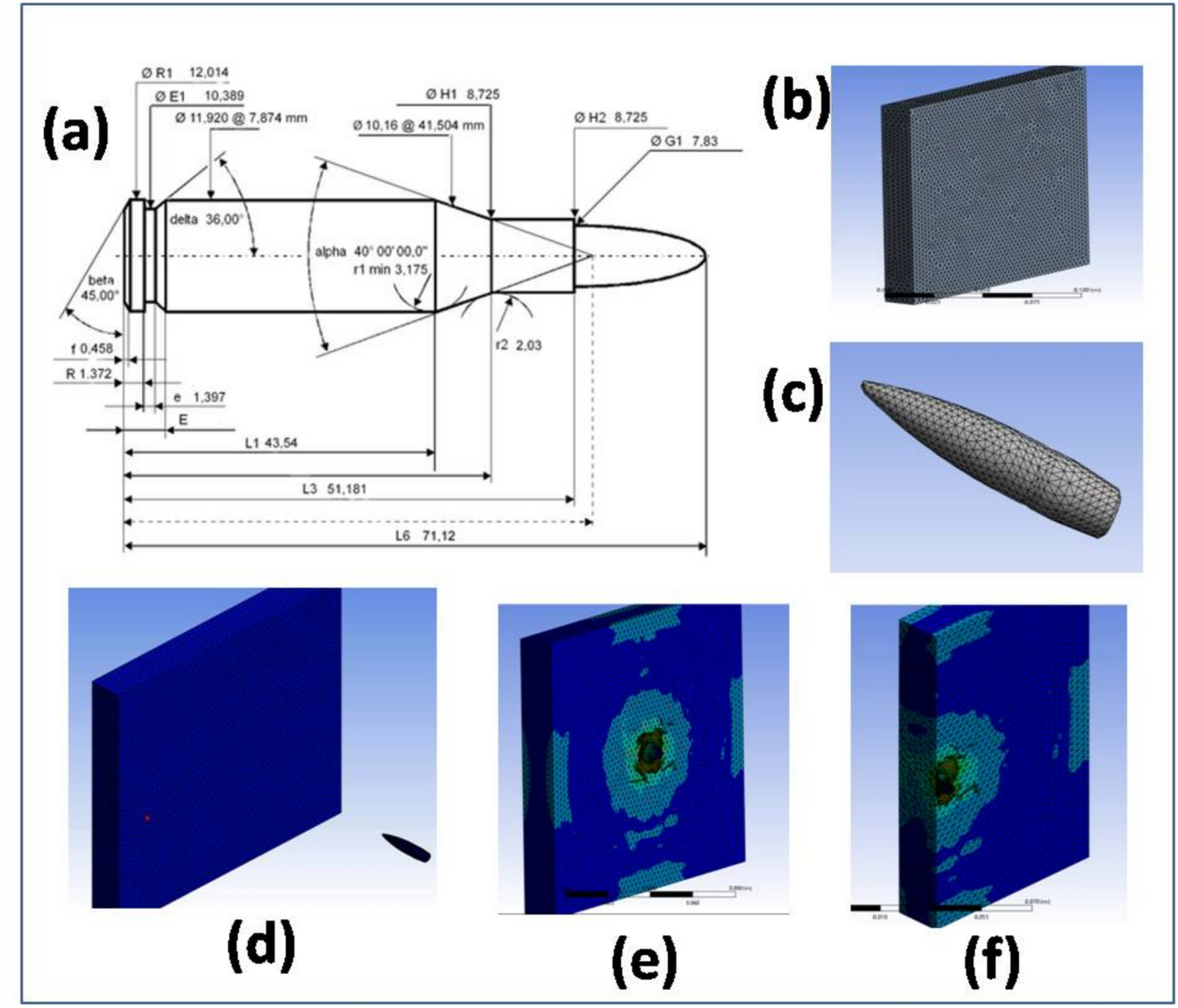

(a) details the dimensions of the 7.62 × 51 mm NATO Ball (Ball M80) projectile. (b) and (c) show the meshed target plate (150 mm × 150 mm × 10 mm) and the projectile, essential for finite element analysis. (d) Presents the initial setup for the ballistic impact simulation, ensuring accurate alignment. (e) Displays the stress distribution on the target plate post-impact, indicating areas of high stress. (f) Shows the deformation and stress analysis, highlighting regions of maximum deformation and potential failure points.
