Fig. 8

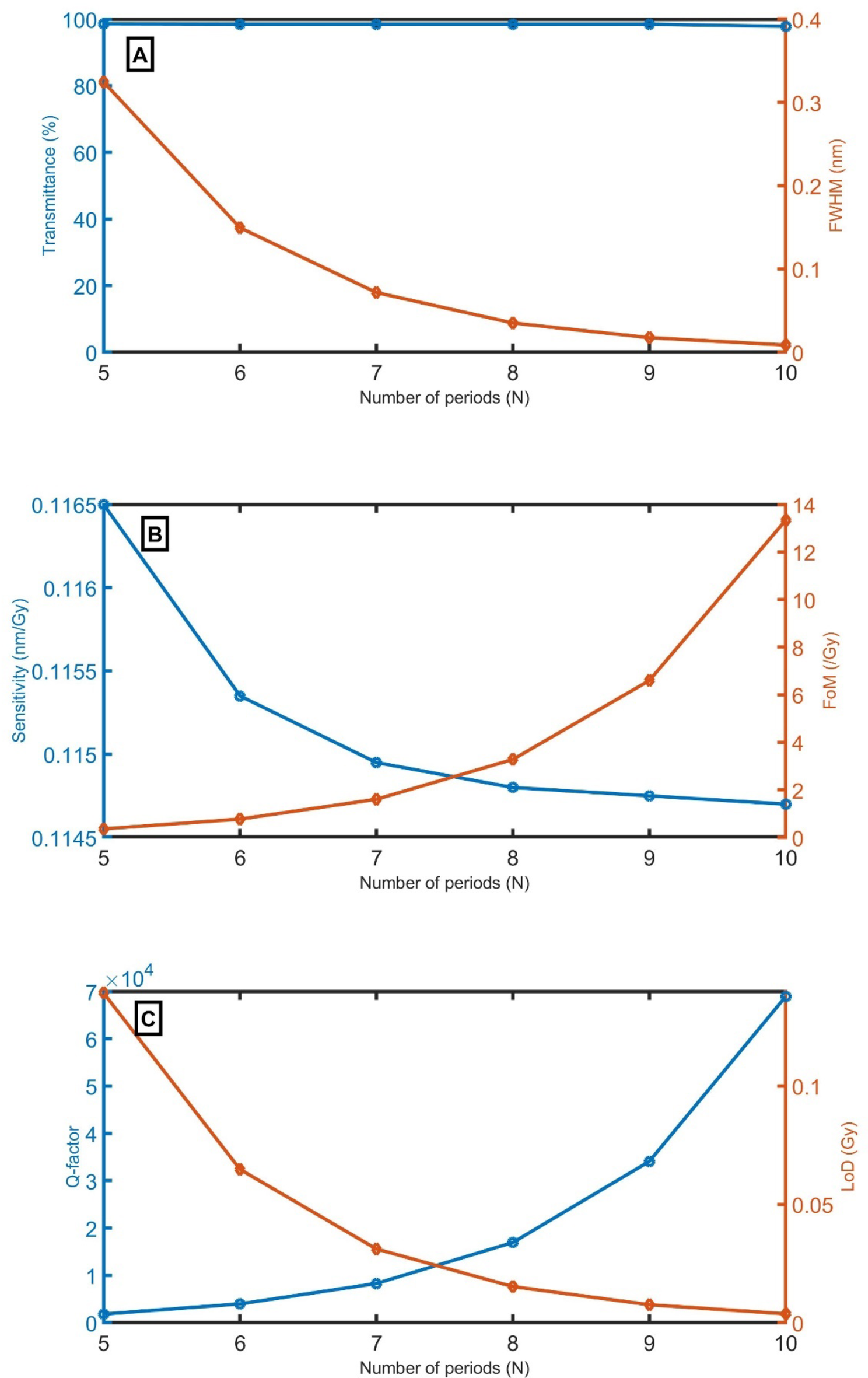

(A) Transmittance and FWHM at 0 Gy, (B) sensitivity and FoM, and (C) Q and LoD of the proposed CS-PC versus N (\({d}_{H}=200\:nm\), \({d}_{L}=150\:nm\), \({d}_{D}=110\:nm\), and \(P=30\%\)).
Fig. 8 | Scientific Reports
(A) Transmittance and FWHM at 0 Gy, (B) sensitivity and FoM, and (C) Q and LoD of the proposed CS-PC versus N (\({d}_{H}=200\:nm\), \({d}_{L}=150\:nm\), \({d}_{D}=110\:nm\), and \(P=30\%\)).
