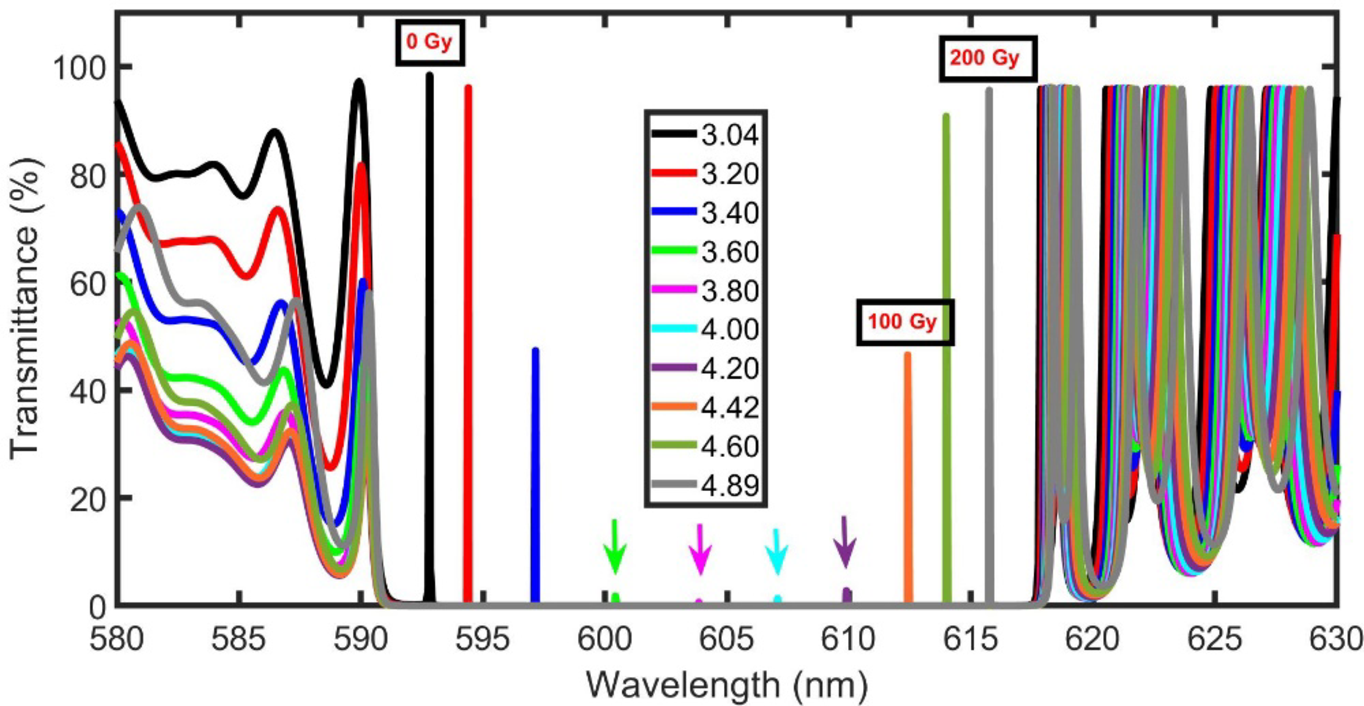

Fig. 9

Transmittance of the proposed CS-PC by changing the RIs of PSi doped with PNCEO defect from 3.04 (0 Gy) to 3.02, 3.40, 3.60, 3.80, 4.00, 4.20, 4.42 (100 Gy), 4.60, and 4.89 (200 Gy) at \({d}_{H}=200\:nm\), \({d}_{L}=150\:nm\), \({d}_{D}=110\:nm\), \(N=9\), and \(P=30\%\).
