Fig. 12
From: A new H6 neutral point clamped transformerless photo voltaic inverter

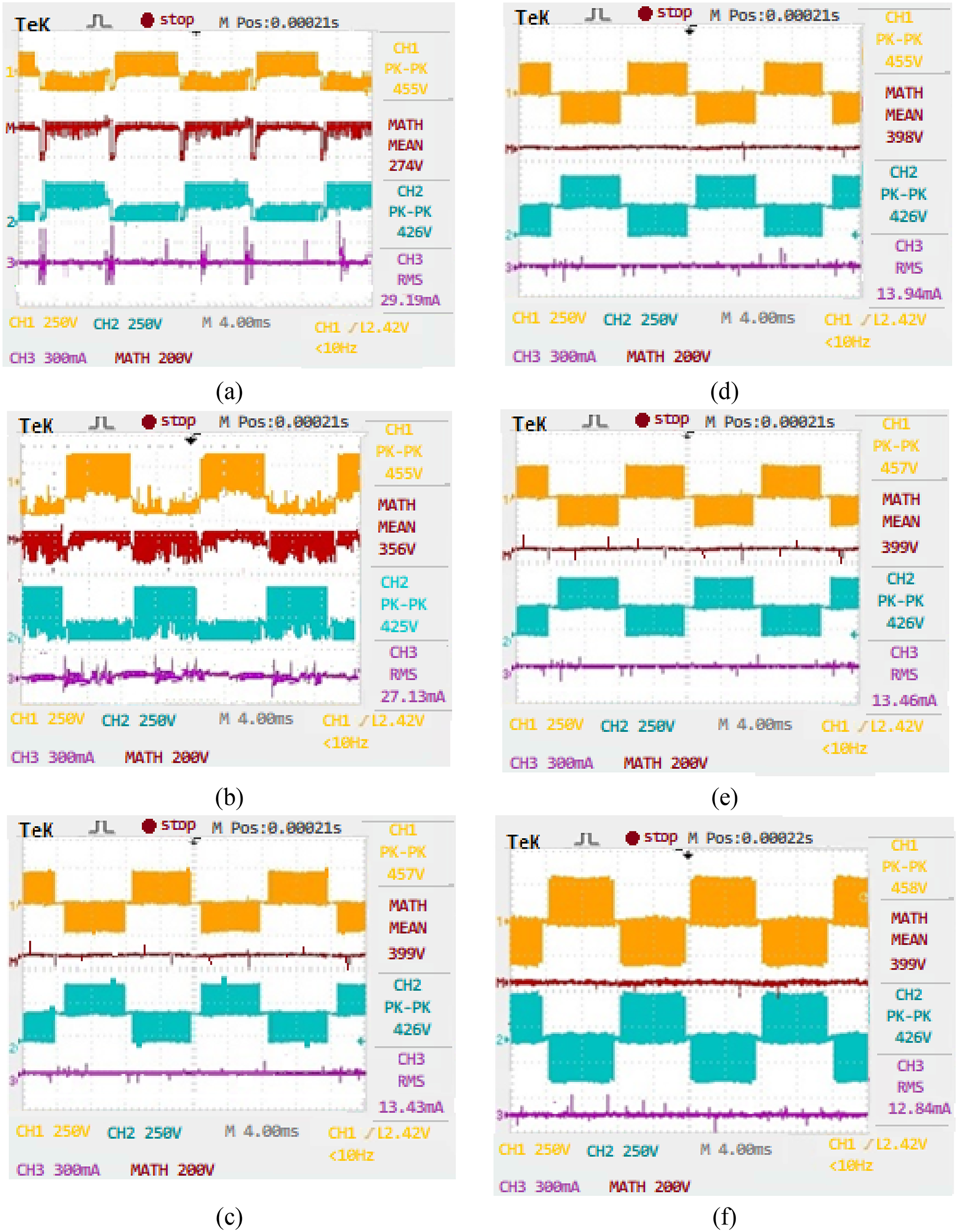

Experimental results of VAN, 2Vcm, VBN, and CM-LC (ileak) for (a) Heric, (b) HBZVR, (c) HBZVSCR, (d) PN-NPC, (e) H6-I and (f) proposed H6-D TL-PVI topologies.
Fig. 12 | Scientific Reports
