Fig. 3
From: A new H6 neutral point clamped transformerless photo voltaic inverter

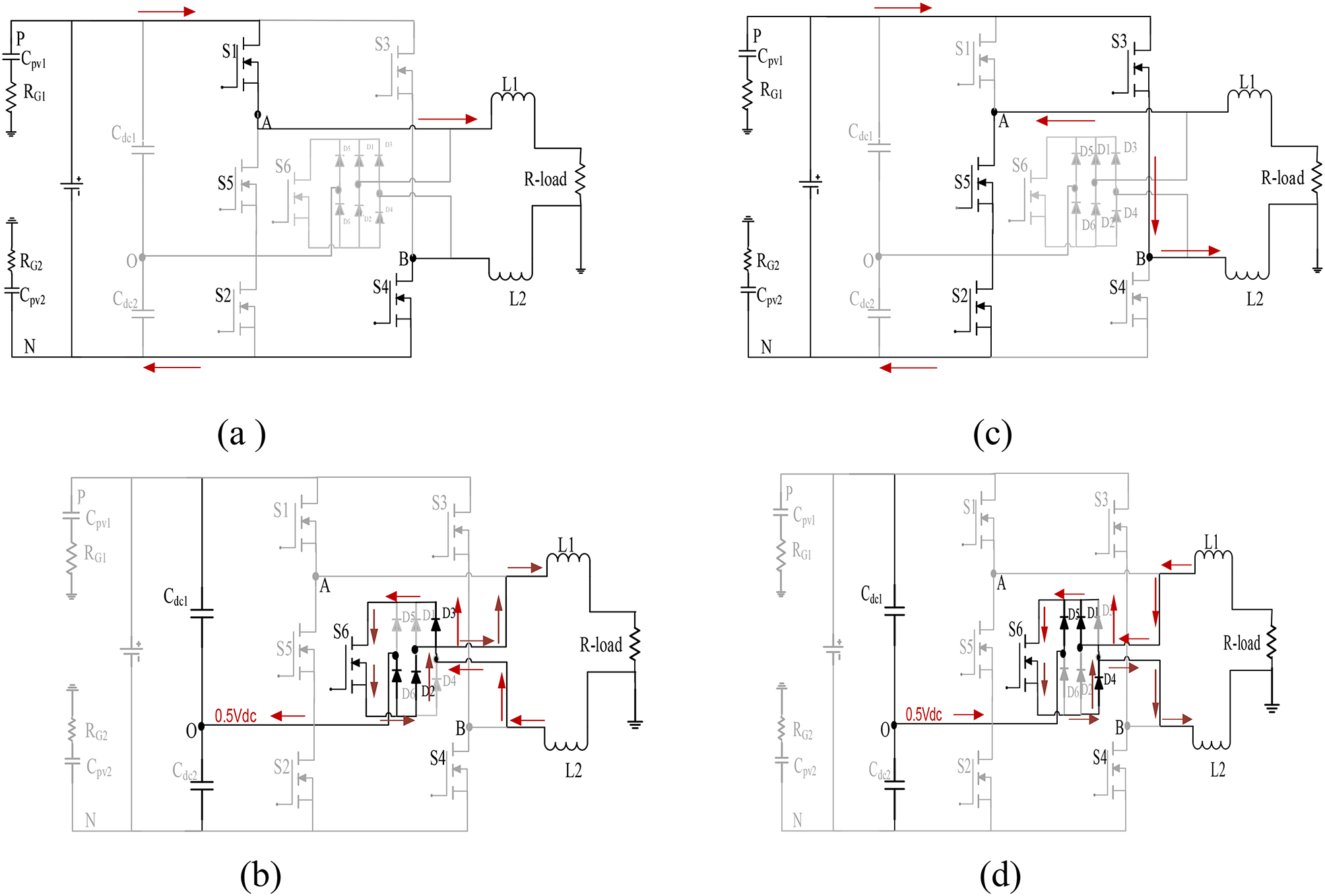

Operating modes for the H6-D TL-PVI: (a) Active conduction period. (b) Active freewheeling in positive half period (PHP). (c) Active conduction and (d) Active freewheeling in negative half period (NHP).
