Fig. 5
From: A new H6 neutral point clamped transformerless photo voltaic inverter

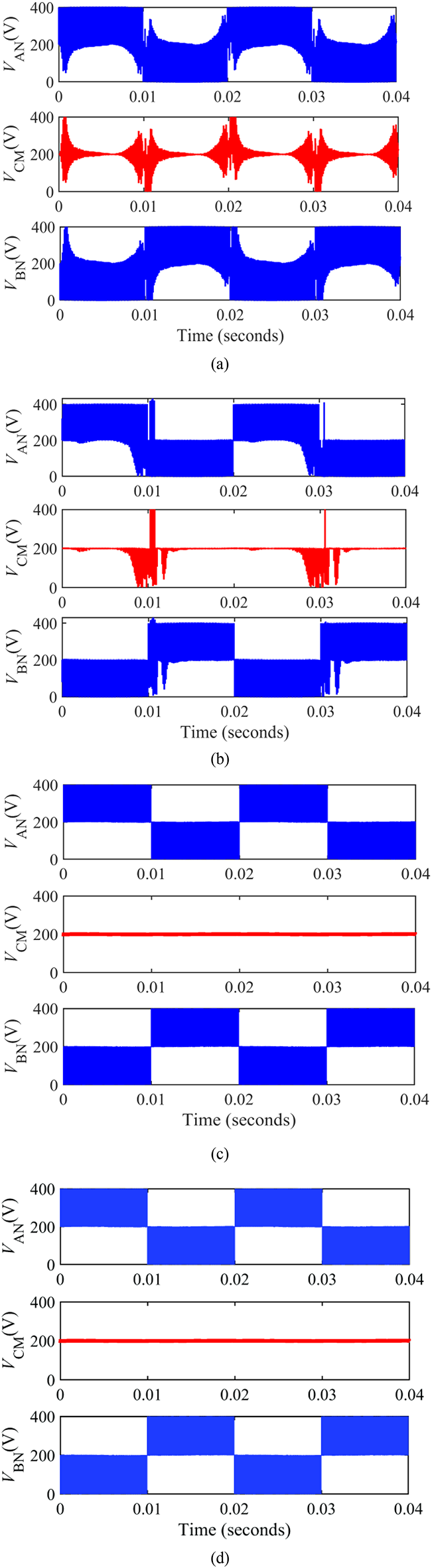

The Simulation results of VAN, VCMand VBNfor (a) HERIC, (b) HBZVR, (c) HBZVR-D, (d) PN-NPC , (e) HBZVSCR, (f) H6-I and (g) proposed H6-D TL-PVI topologies.
