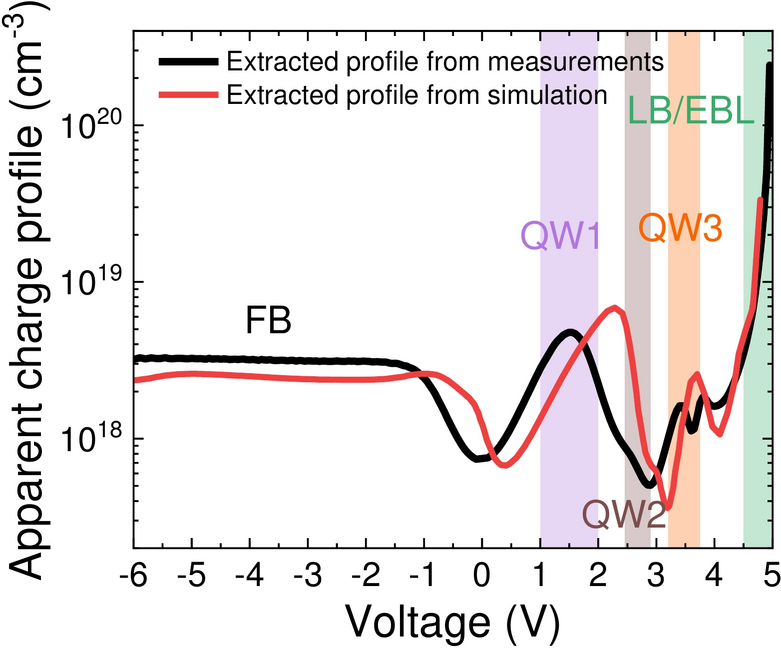

Fig. 2
From: Modeling the capacitance–voltage characteristics of AlGaN-based UV-C LEDs
Comparison between the experimental apparent charge profile as function of the applied voltage and the one obtained from the simulations without the non-idealities discussed in the following sections.
