Fig. 6
From: Climatology of Tehran surface heat Island: a satellite-based spatial analysis

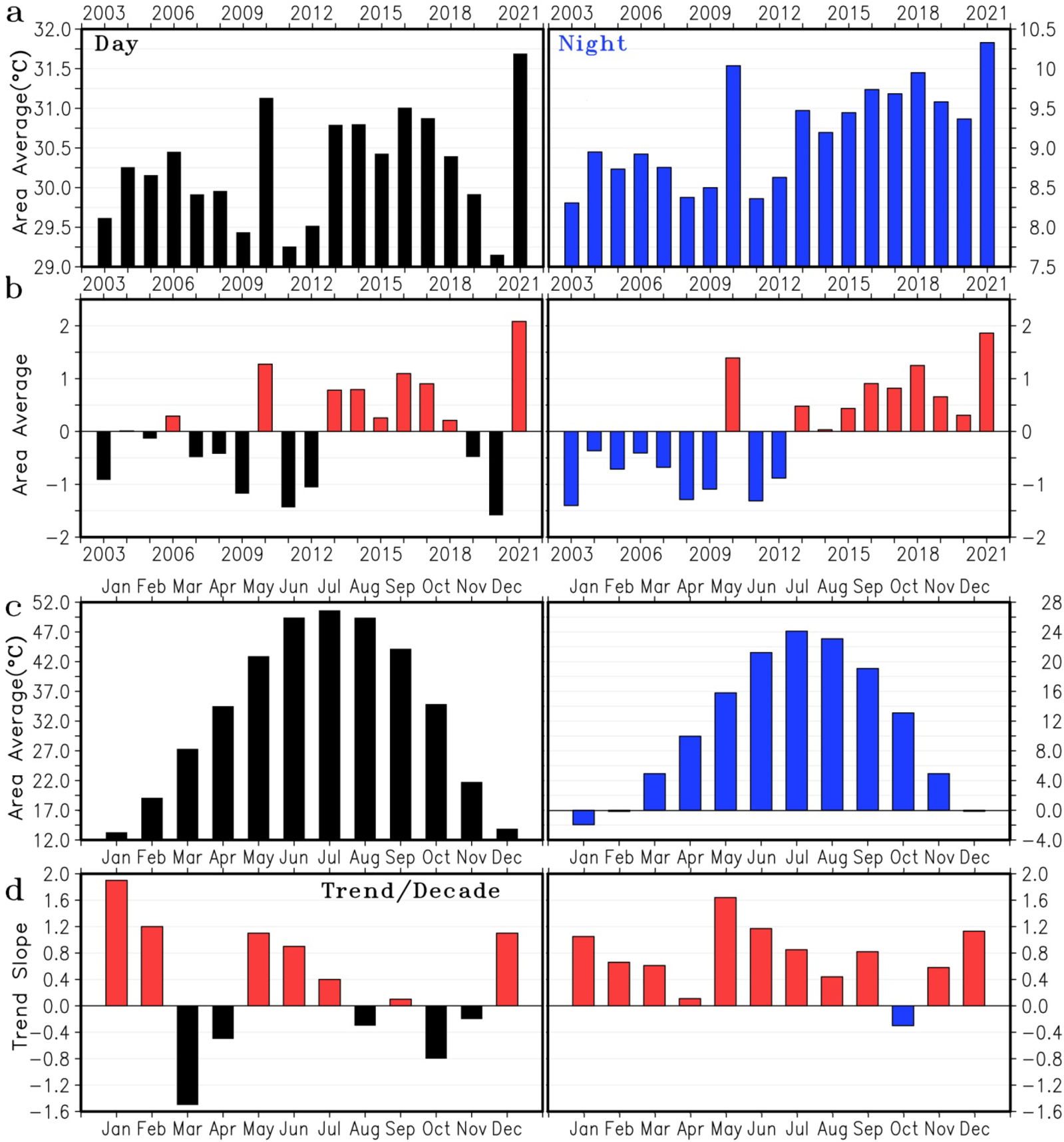

Analysis of LST in the Tehran metropolitan area, depicting (a) interannual variability, (b) standardized anomaly, (c) monthly mean LST (day and night), and (d) Sen’s trend slope. The data presented in this Figure were prepared using Earth data. Cite: AppEEARS Team. Application for Extracting and Exploring Analysis Ready Samples (AppEEARS). Version X.X. NASA EOSDIS Land Processes Distributed Active Archive Center (LP DAAC), USGS/Earth Resources Observation and Science (EROS) Center, Sioux Falls, South Dakota, USA. URL link: https://appeears.earthdatacloud.nasa.gov. Subsequently, the data were modified using Climate Data Operators (CDO). Version number: 2.0.4. URL link: https://code.mpimet.mpg.de (2022). The data were analyzed in Microsoft Excel. Version number: 2021, from Microsoft Corporation. URL link: https://office.microsoft.com (2021). Additionally, R. Version number: 4.3.1 was used for analysis; URL link: https://www.r-project.org (2023), along with R Studio. Version number: 2023.06.1. URL link: https://posit.co (2023). Finally, the chart was generated using the Grid Analysis and Display System (GrADS). Version number: 2.2.1.oga.1. URL link: http://cola.gmu.edu (2019). Both CDO and GrADS were utilized on Ubuntu Desktop Linux. Version number: 22.04 LTS. URL link: https://ubuntu.com (2022).
