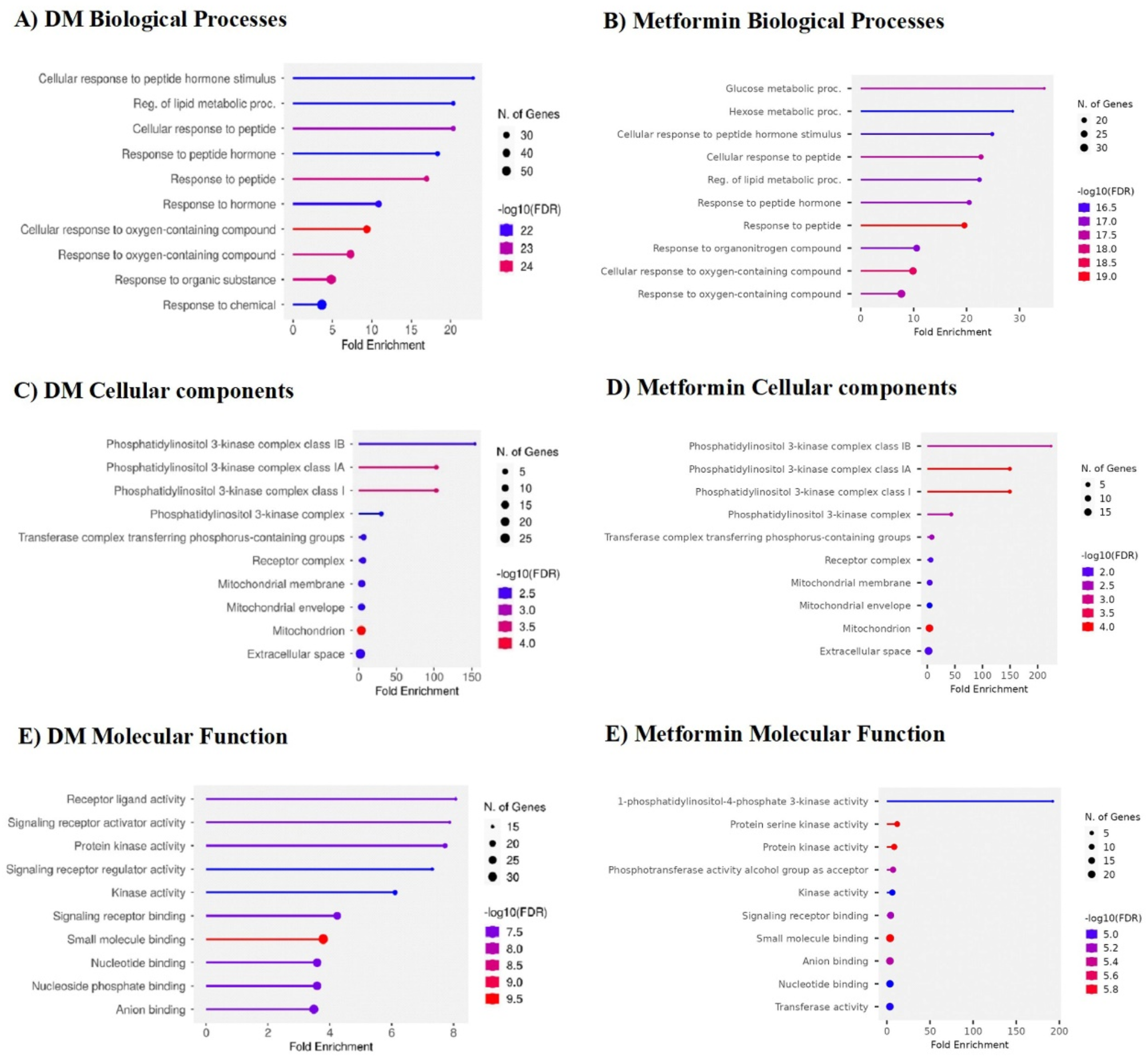

Gene enrichment analysis of the selected genes. Figures (A), (C) and E represent the biological process, molecular functions, and cellular components associated with MetS/T2DM, respectively. In contrast, Figures (B), (D), and F depict the corresponding biological processes, molecular functions, and cellular components related to the effects of metformin. The abbreviation “DM” indicates type 2 diabetes mellitus.
