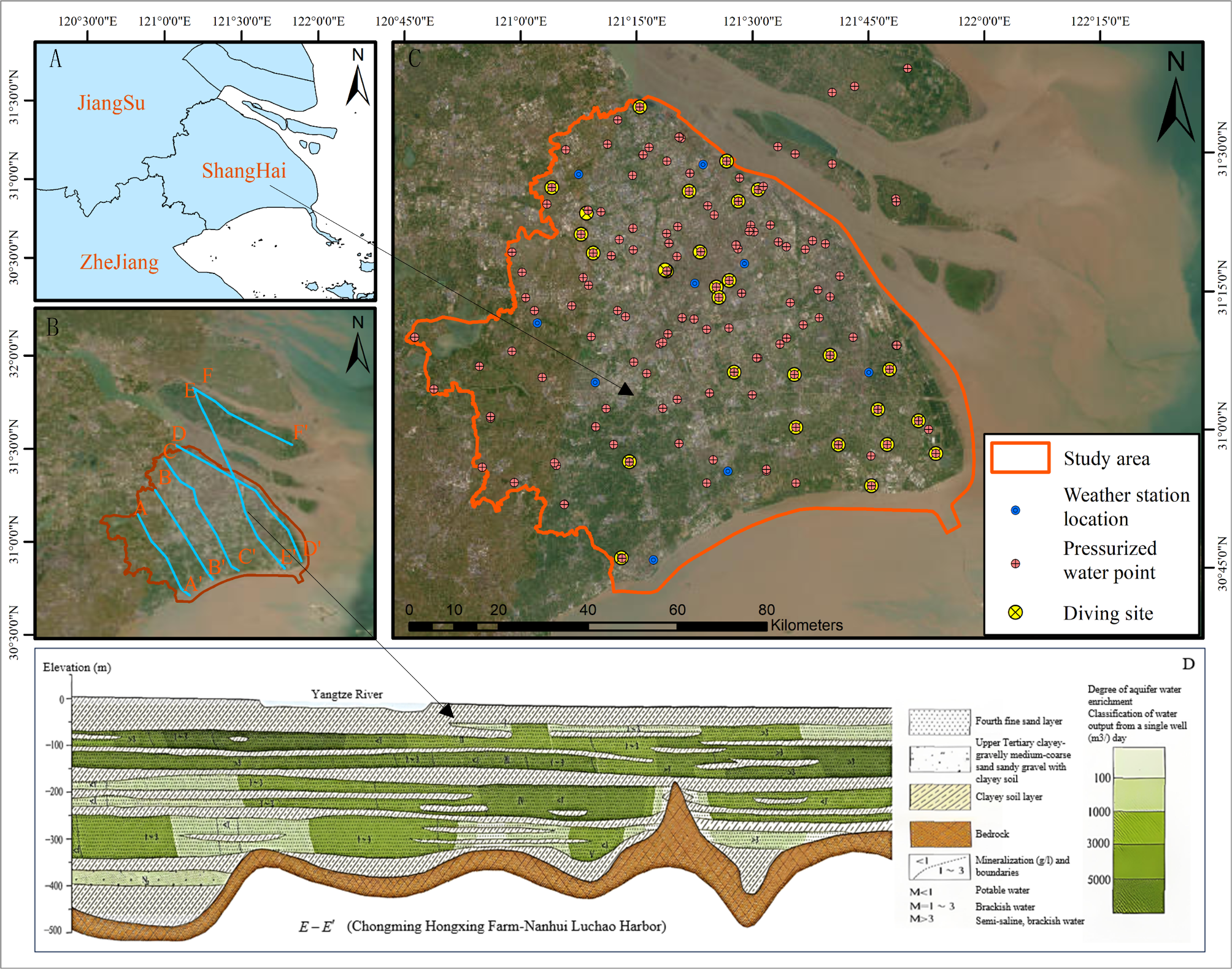

(A) Illustrates the general location of the region; (B) The hydrogeological profile information of the confined aquifer in Shanghai; (C) The location of the study area along with the positions of confined water, unconfined water, and meteorological stations; and Panel D depicts the hydrogeological profile of the confined aquifer. This information is sourced from (https://data.sigs.cn/).
