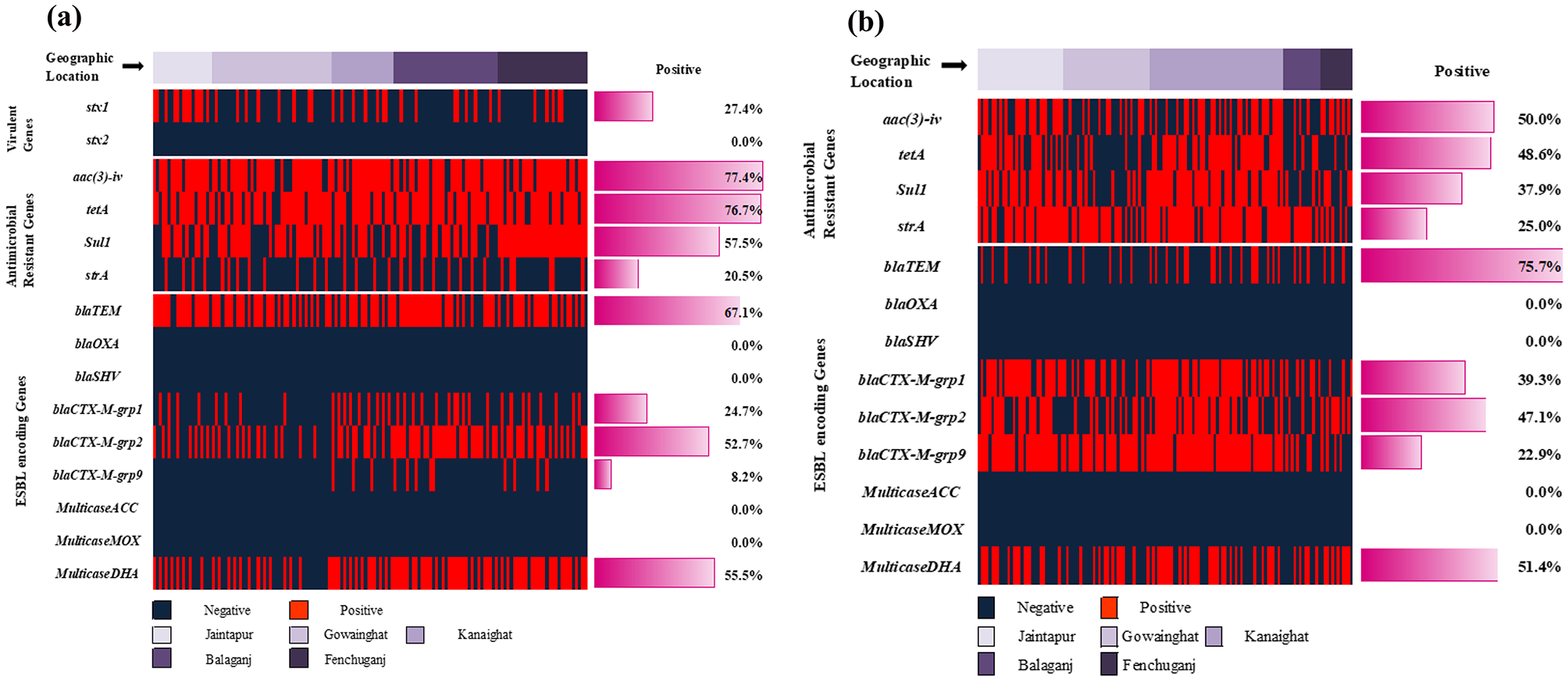

The percent of different genes in between E. coli and K. pneumoniae positive isolates. (a) Combined heatmap and bar diagram illustrating the percentages of virulence, antibiotic resistance, and ESBL-encoding genes in E. coli positive isolates; (b) The percentages of antibiotic resistance and ESBL-encoding genes in K. pneumoniae positive isolates.
