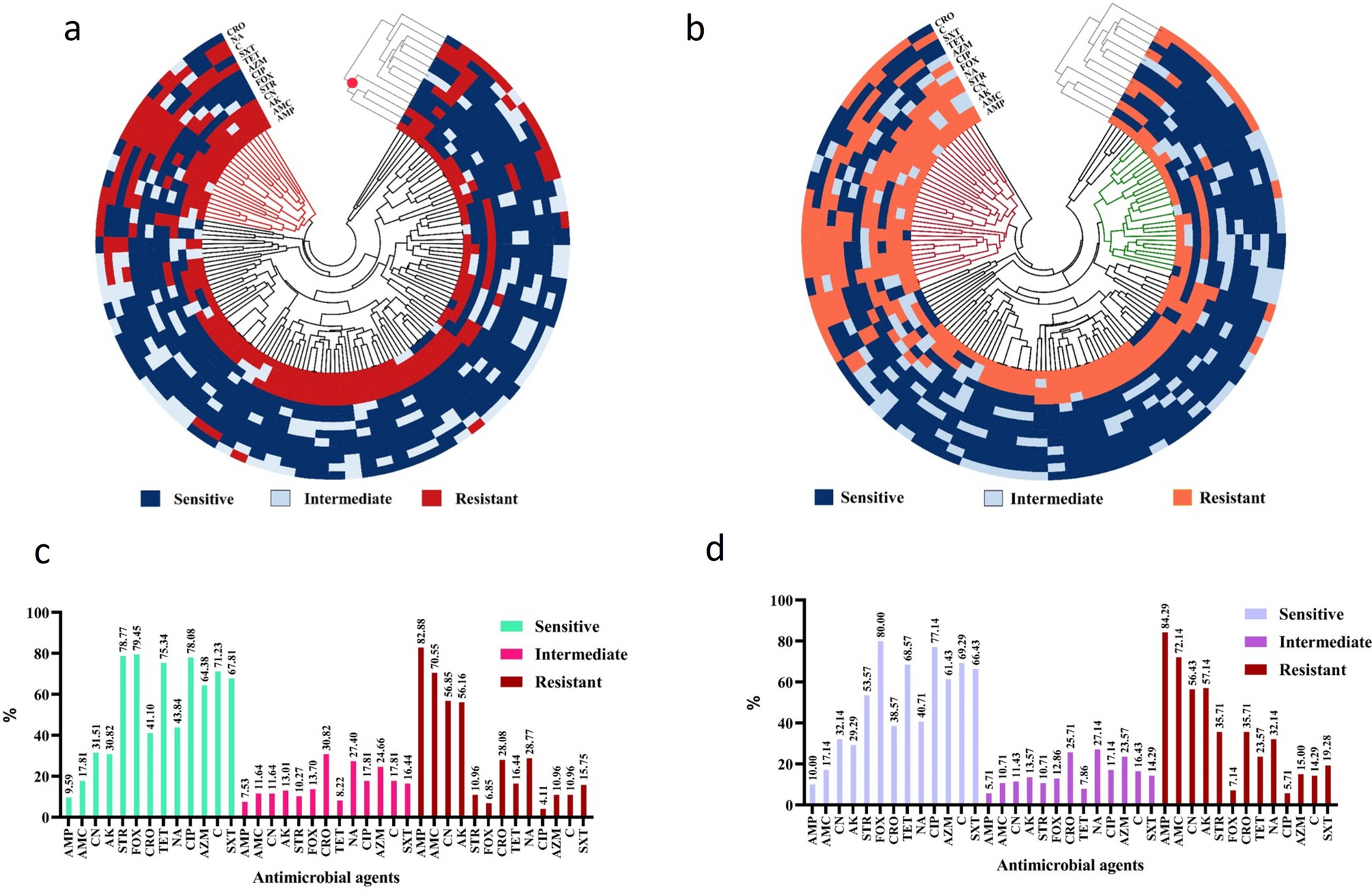

Polar heatmap and bar diagram representing the antibiogram profiles of E. coli and K. pneumoniae isolates from subclinical mastitis-positive milk samples of buffalo. (a) The sensitive, intermediate, and resistant patterns of E. coli isolates; (b) The sensitive, intermediate, and resistant patterns of K. pneumoniae isolates; (c) The bar diagram showing the percentages (%) of sensitivity, resistance, and intermediate responses to different antimicrobials for E. coli isolates; (d) The bar diagram showing the percentages (%) of sensitivity, resistance, and intermediate responses to different antimicrobials for K. pneumoniae isolates.
