Fig. 4
From: Effects of hydroxypropyl starch on intestinal health and transcriptome of geese

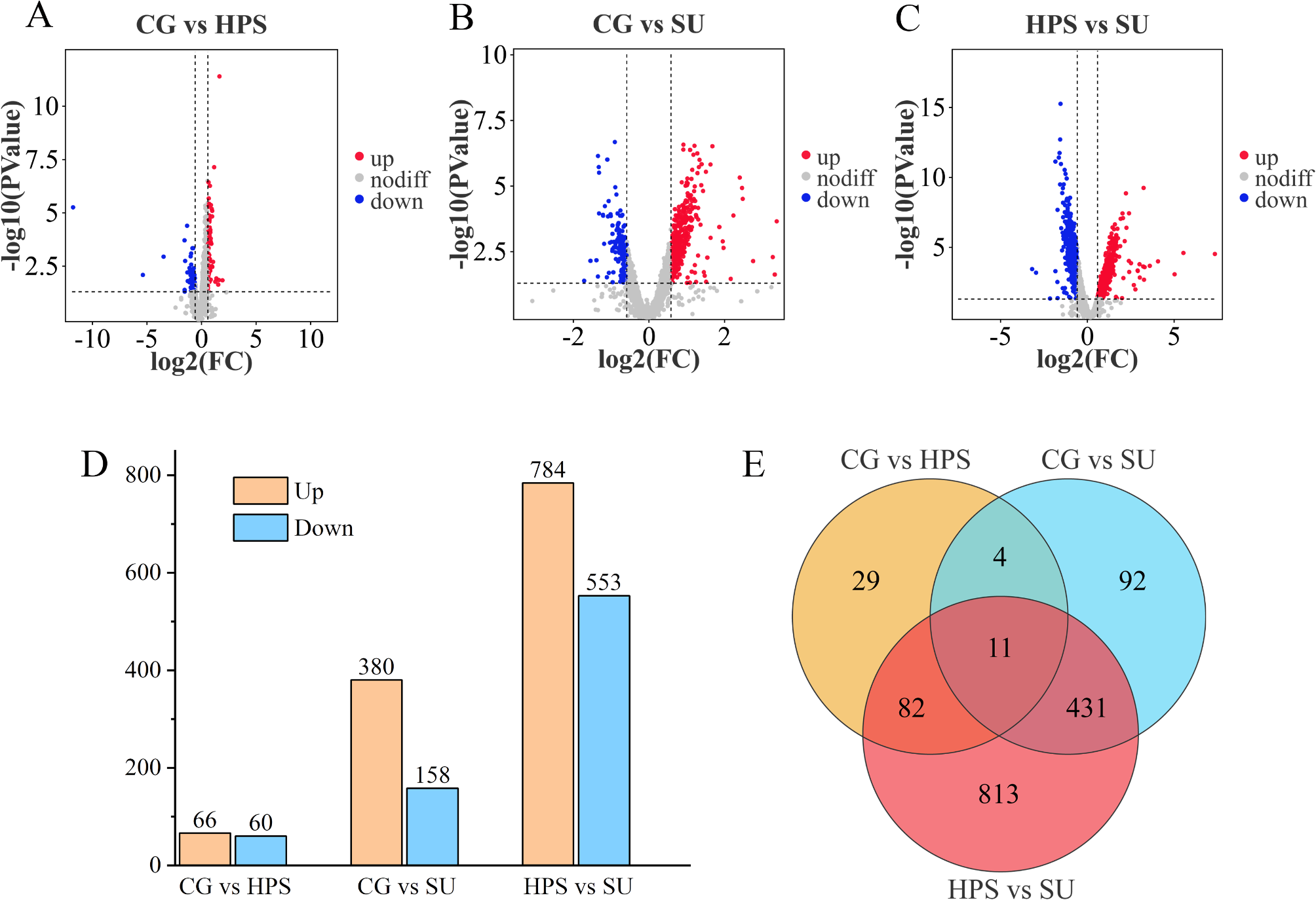

Differentially expressed genes (DEGs) under various treatment groups. (A–C) DEGs volcanic maps of CG vs. HPS, CG vs. SU, and HPS vs. SU. The X-axis represents log2(Fold Change) and the Y-axis shows the -log10 (p-value). Red dots represent up-regulated genes, blue dots represent down-regulated genes and gray dots represent genes that were not differentially expressed. (D) Distribution map of the number of DEGs between the different groups. (E) Venn diagram of the DEGs.
