Fig. 5
From: Numerical study on falling film flow outside the refrigerant tube

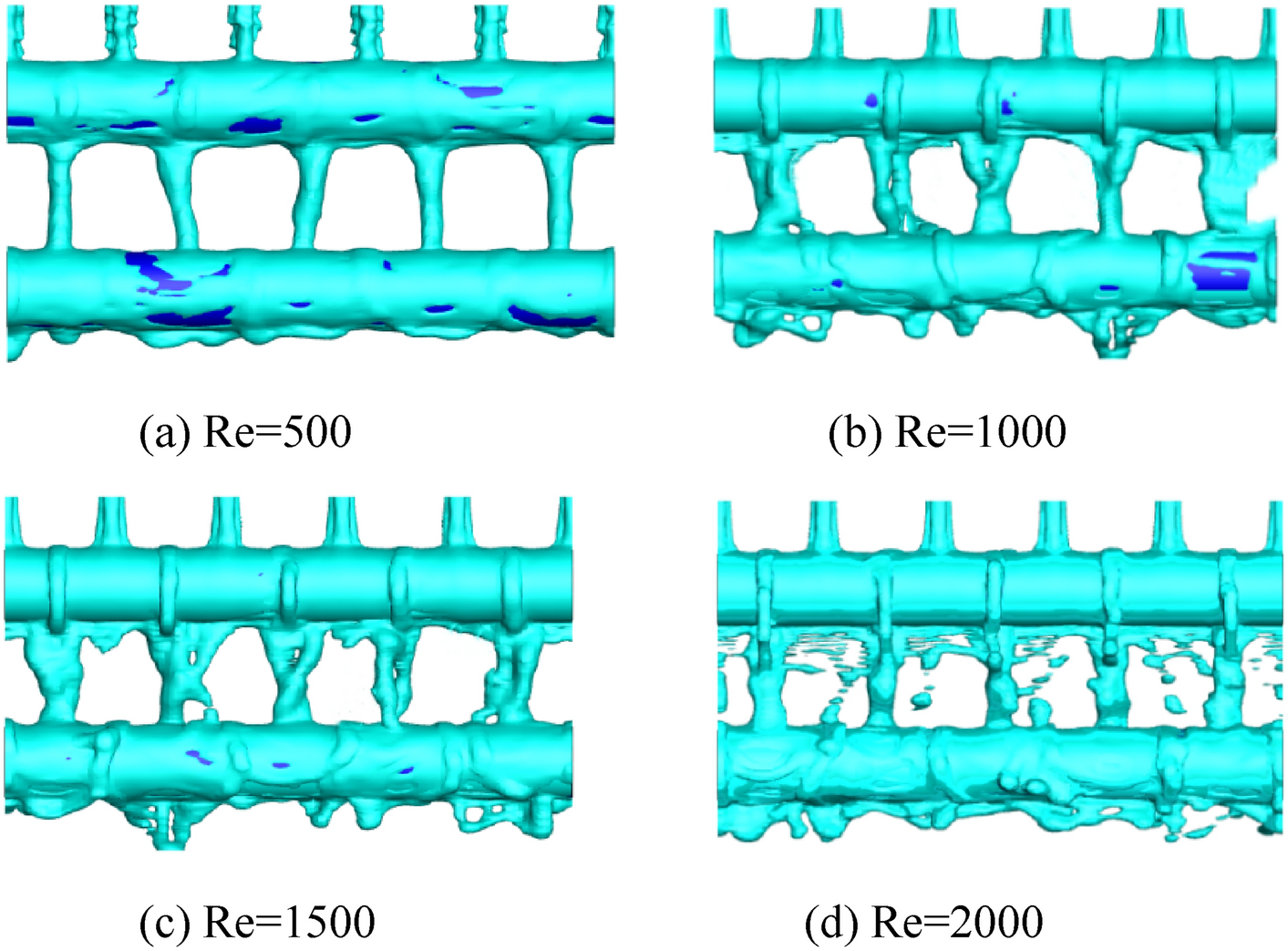

Distribution of shell-side liquid film at Re values of (a) 500, (b) 1000, (c) 1500, and (d) 2000.(Image is generated using Tecplot 360 EX 2021 R2).
