From: Gene expression profile of anoikis reveals new subtypes of liver cancer and discovery of therapeutic targets and biomarkers

Fig. 3

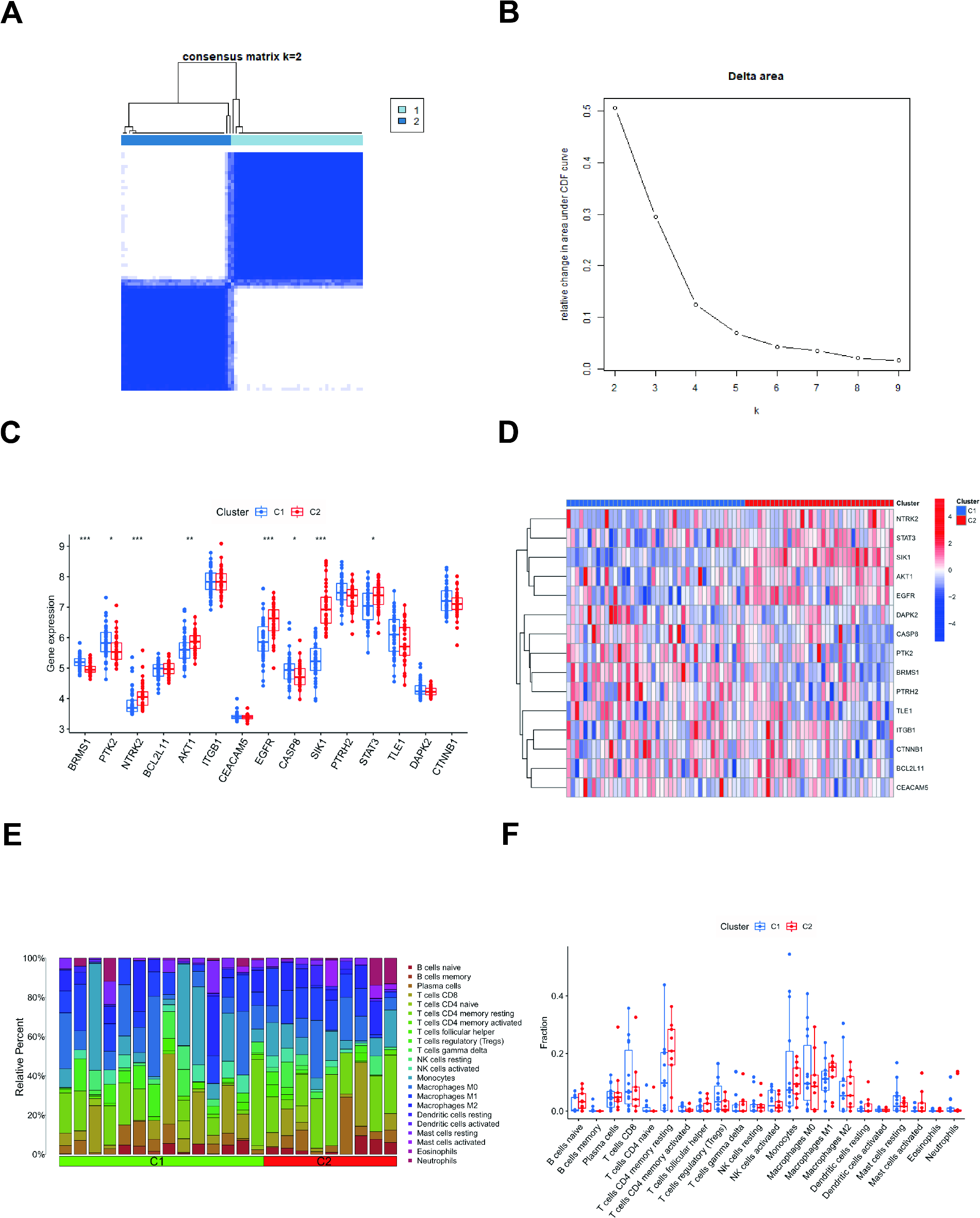

Subtyping of lover cancer according to ARGs. (A) Heatmap of cluster analysis matrix for liver cancer based on anoikis. (B) Delta area plot of cluster analysis. (C) Boxplot of expression differences of ARGs after subtyping. (D) Heatmap of differences in expression of ARGs after subtyping. (E) Barplot of the differences in the proportion of immune cells between C1 and C2 subtypes of liver cancer. (F) Boxplot of the differences in the proportion of immune cells between C1 and C2 subtypes of liver cancer. ***p < 0.001, **p < 0.01, *p < 0.05.
