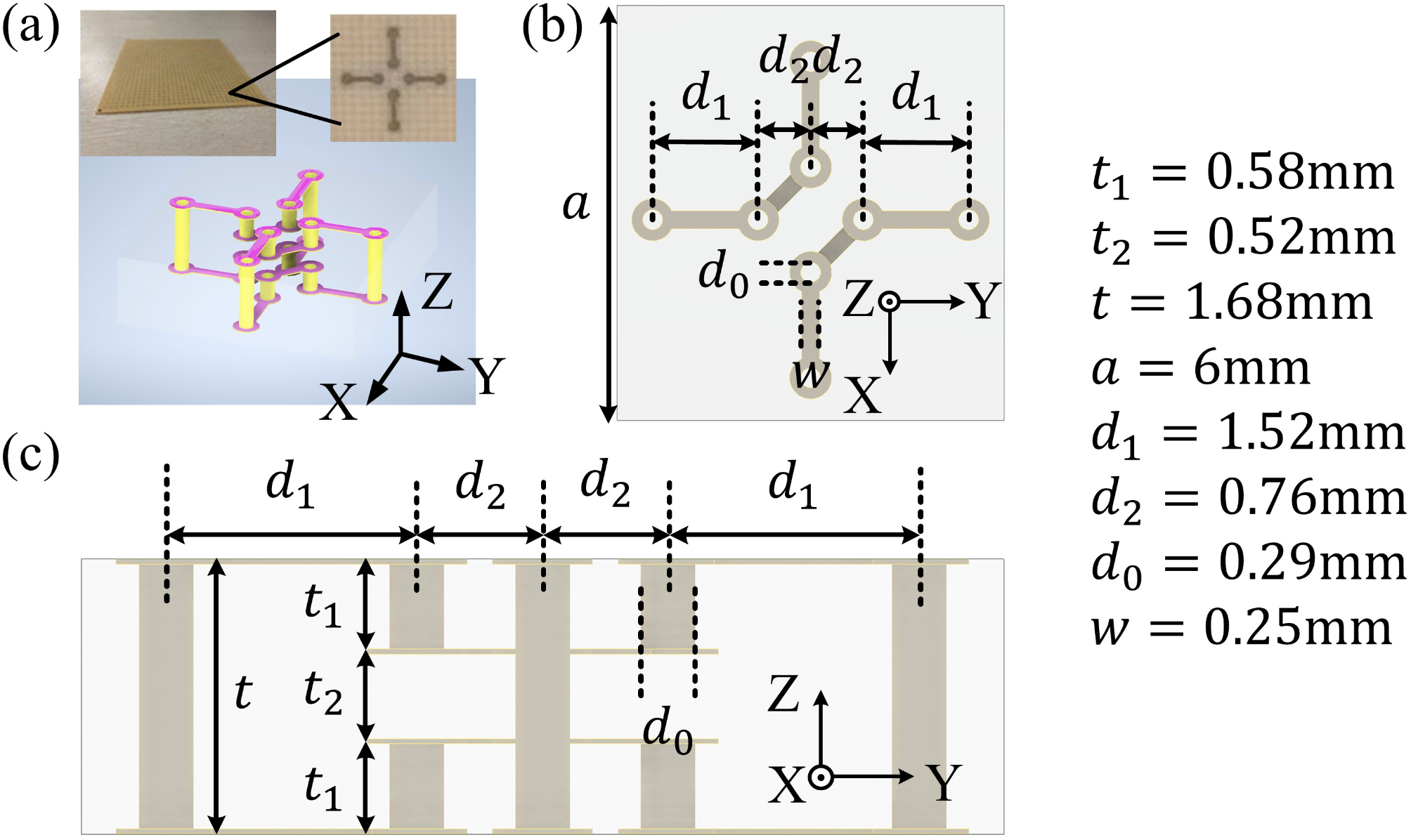

Fig. 2
From: Metamaterials with asymmetric transmission effect based on magnetic field manipulation
Prototype and dimensions of the structure in different views. (a) Prototype and periodic unit of the fabricated structure; (b) Dimensions of the structure in view Z; (c) Dimensions of the structure in view X.
