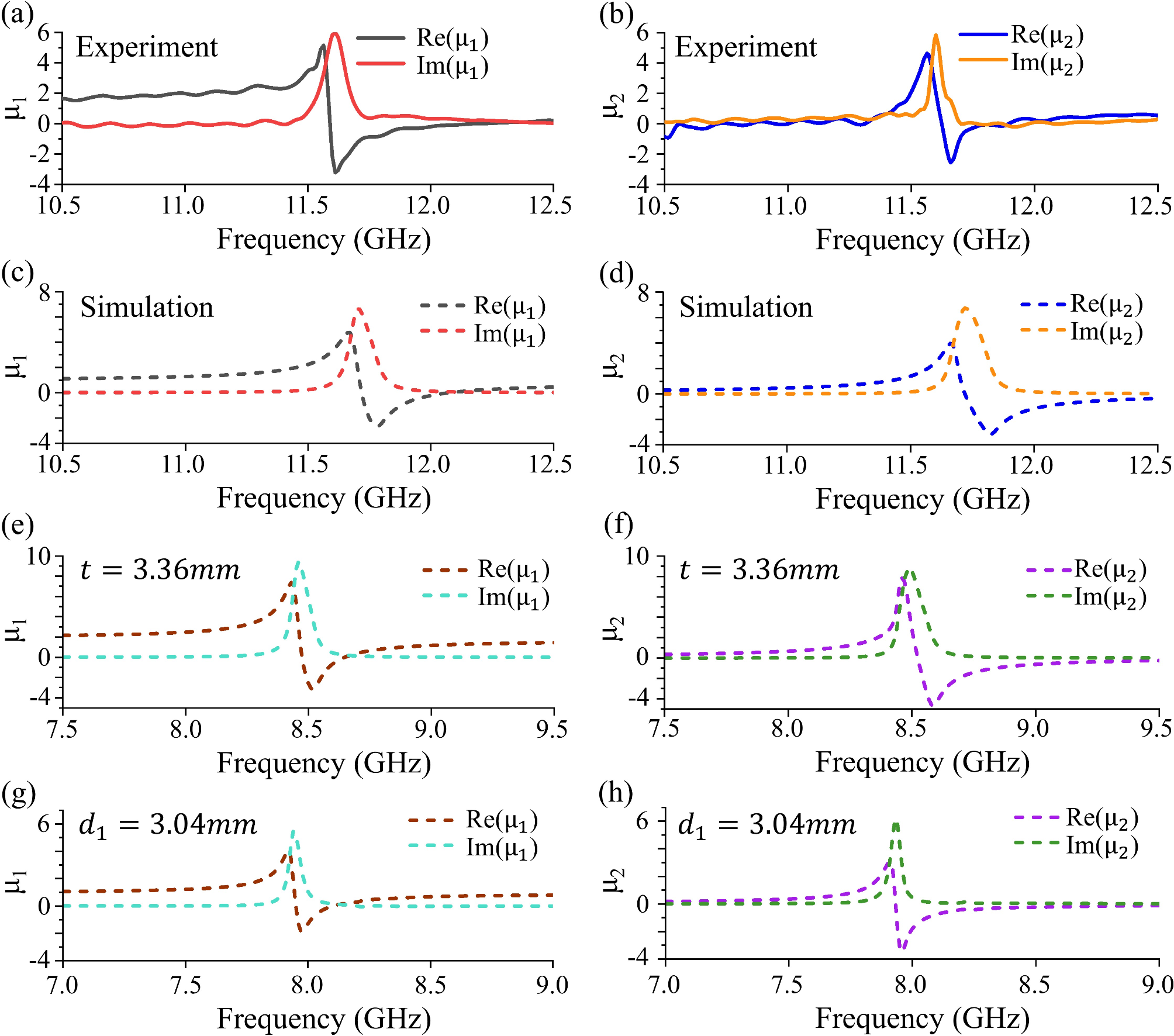

Fig. 3

Simulation and experiment results of permeability of prototype under different dimensional parameters. (a) Experiment results of \(\:{\mu\:}_{1}\) of the prototype, black and red curves represent real and imaginary part of \(\:{\mu\:}_{1}\) respectively; (b) Experiment results of \(\:{\mu\:}_{2}\) of the prototype, blue and green curves represent real and imaginary part of \(\:{\mu\:}_{2}\) respectively; (c, d) Simulation results of \(\:{\mu\:}_{1}\) and \(\:{\mu\:}_{2}\) of prototype; (e, f) Simulation results of model with twice the loop height of the prototype; (g, h) Simulation results of model with twice the loop width of the prototype.
