Fig. 6
From: Metamaterials with asymmetric transmission effect based on magnetic field manipulation

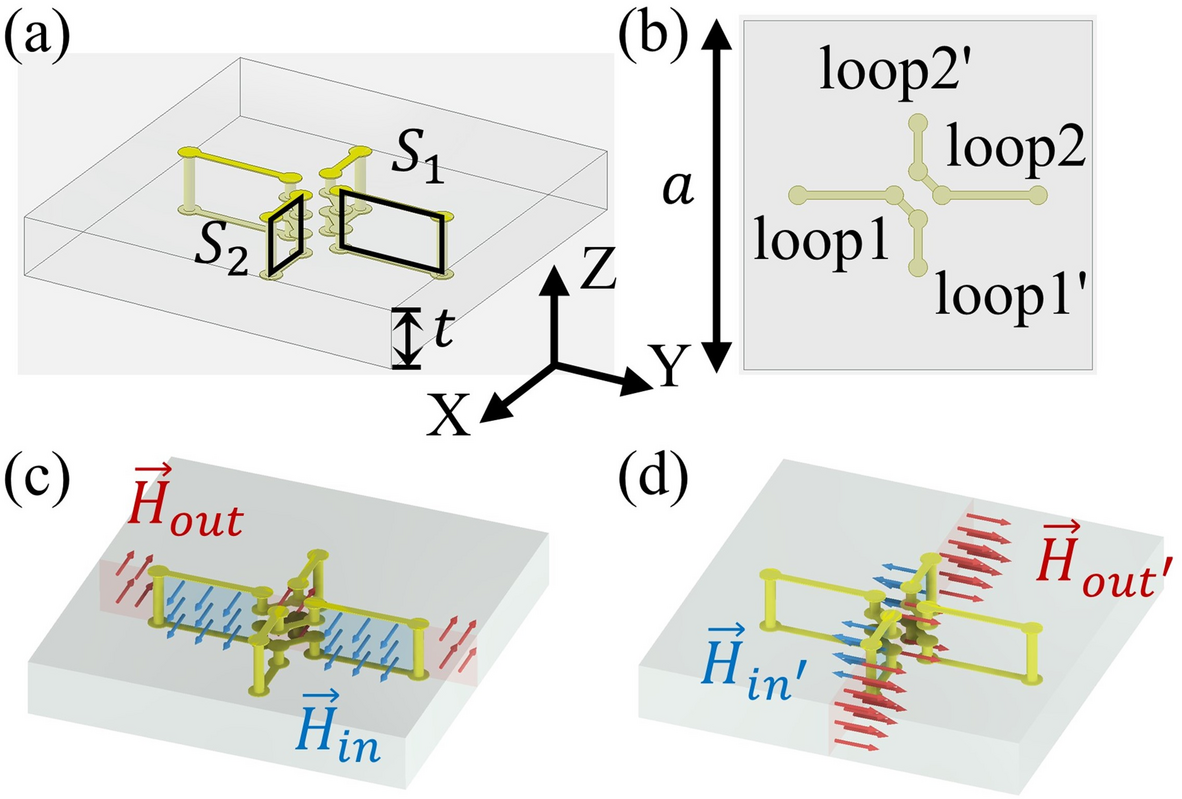

Dimensions and magnetic field of the modified asymmetric metamaterial structure in different views. (a) Periodic unit of the asymmetric metamaterial. Loop1 and loop2 has the same area of \(\:{S}_{1}\), loop1’ and loop2’ has the same area of \(\:{S}_{2}\); (b) The structure in view Z. (c) Magnetic field on x direction in the periodic unit; (d) Magnetic field on y direction in the periodic unit.
