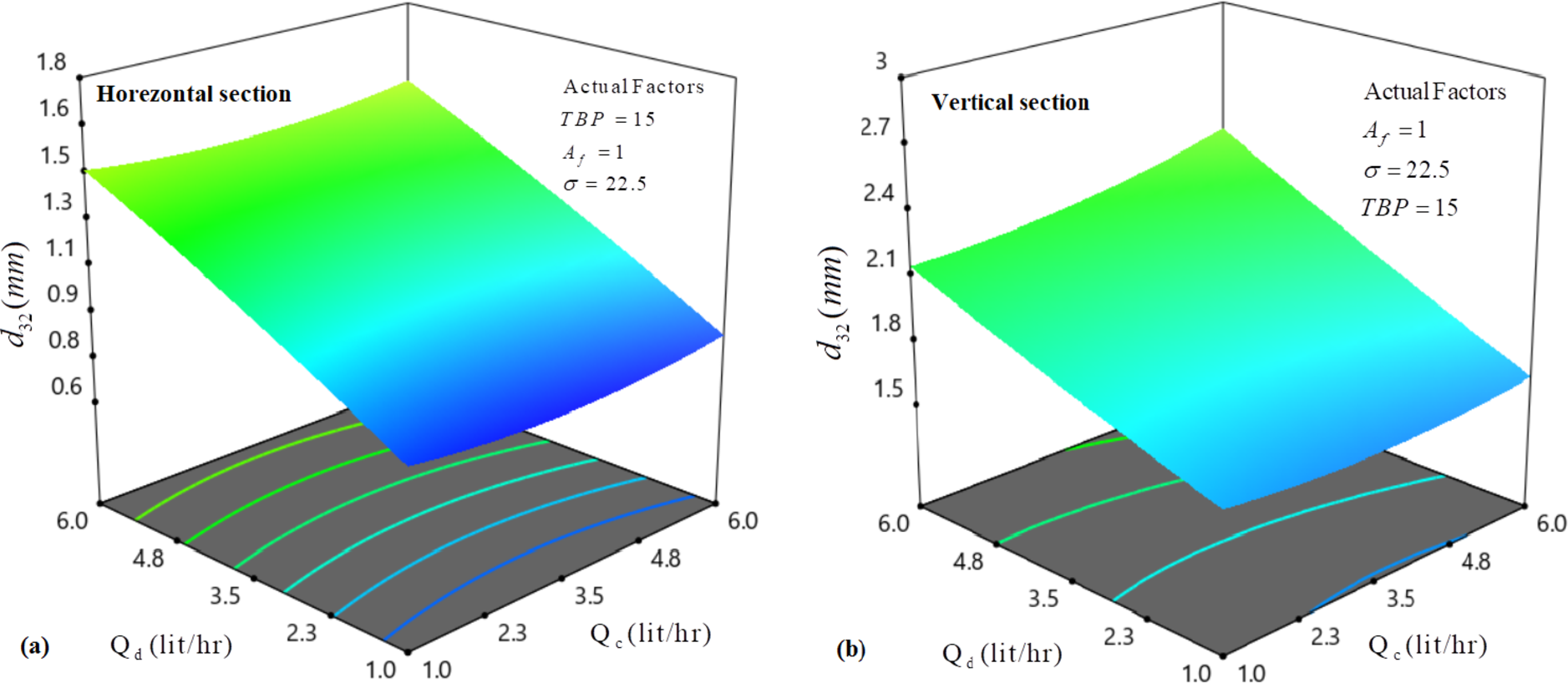

Fig. 4
The values of SMD versus the dispersed and continuous phase flow rates for (a) horizontal (b) vertical sections (TBP = 15%, σ = 22.5 Nm/m, Af = 1 cm/s).
Fig. 4 | Scientific Reports
The values of SMD versus the dispersed and continuous phase flow rates for (a) horizontal (b) vertical sections (TBP = 15%, σ = 22.5 Nm/m, Af = 1 cm/s).
