Fig. 3

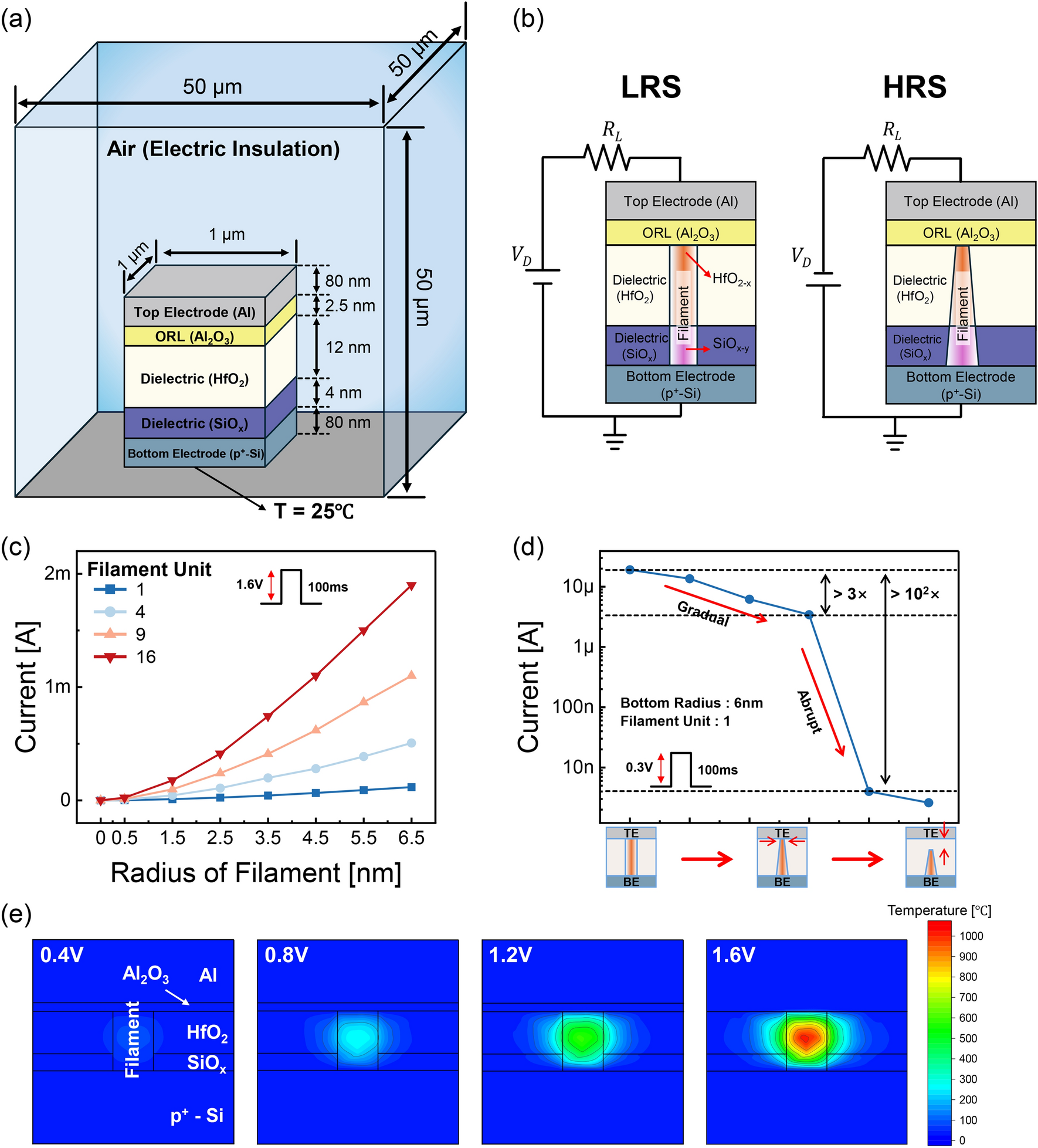

(a) Schematic of the modeled device and environment in COMSOL simulation. (b) Shape changes of the CF in the device between the LRS and HRS. (c) Simulation of current variation based on the relationship between the number of CFs. (d) Current variation resulting from changes in the CF shape and gap formation. (e) Voltage dependent Joule heating changes in CF.
