From: Biocatalytic production of 3-hydroxypropionic acid precursors using a regioselective Baeyer-Villiger monooxygenase

Fig. 2

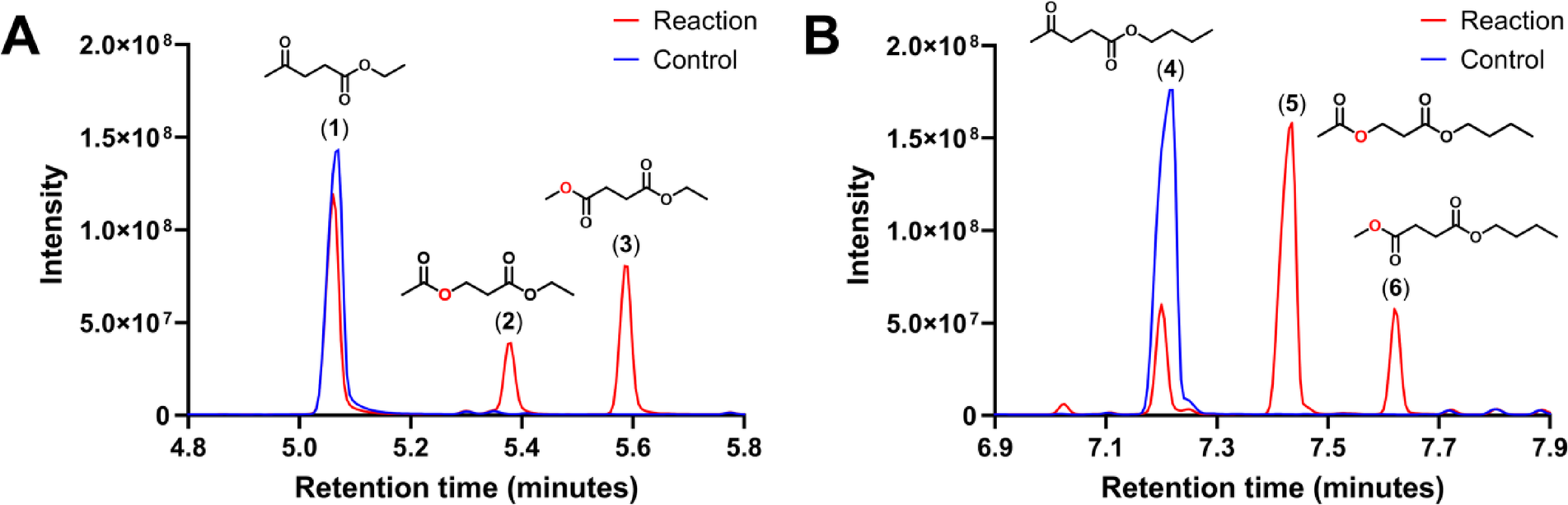

GC-MS chromatograms with peak assignment for Ar-BVMO reactions with alkyl levulinates. A Reaction with ethyl levulinate (1) in presence (red) and in absence (blue, control) of NADPH. Two products are formed: ethyl 3-acetoxypropionate (2) and ethyl methyl succinate (3). B Reaction with butyl levulinate (4) in presence (red) and in absence (blue, control) of NADPH. Two products are formed: butyl 3-acetoxypropionate (5) and butyl methyl succinate (6).
