Fig. 1

From: Comparison of feetme insoles with a motion capture system coupled to force plates for assessing gait and posture

Fig. 1

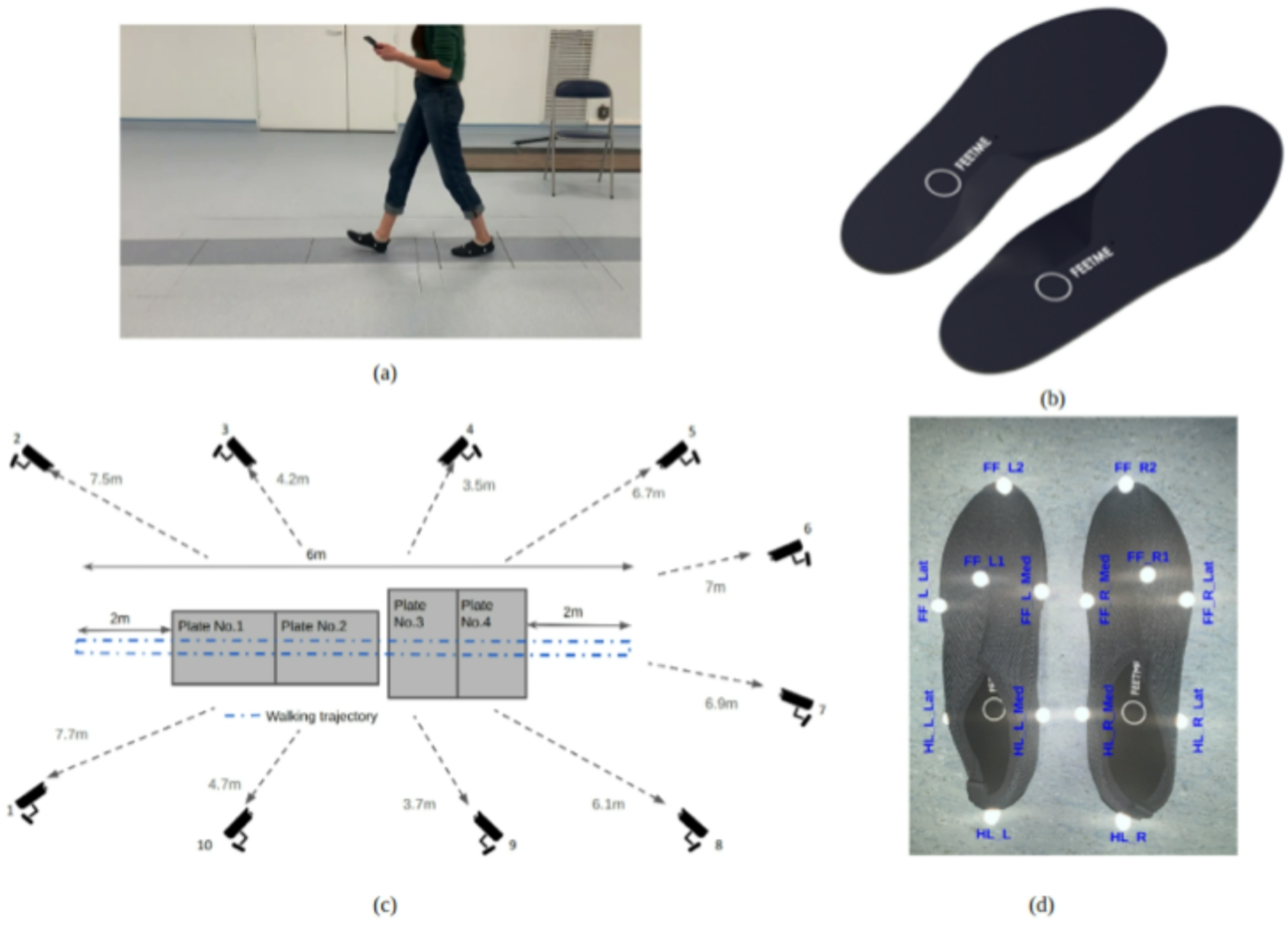

(a) Participant during non-assisted walking on force platforms with FeetMe insoles inside the shoes and reflective markers for the Vicon optoelectronic motion capture (MoCap) system attached to the outside of the shoes. (b) FeetMe insoles. (c) Schematic representation of the walk trajectory on the force plates and the position of MoCap cameras. (d) Aquashoes from Decathlon with reflective markers and FeetMe insoles inside the shoes.
