Fig. 4

From: Tumor associated chromosomal instability drives colorectal adenoma to adenocarcinoma progression based on 17 year follow up evidence

Fig. 4The alternative text for this image may have been generated using AI.

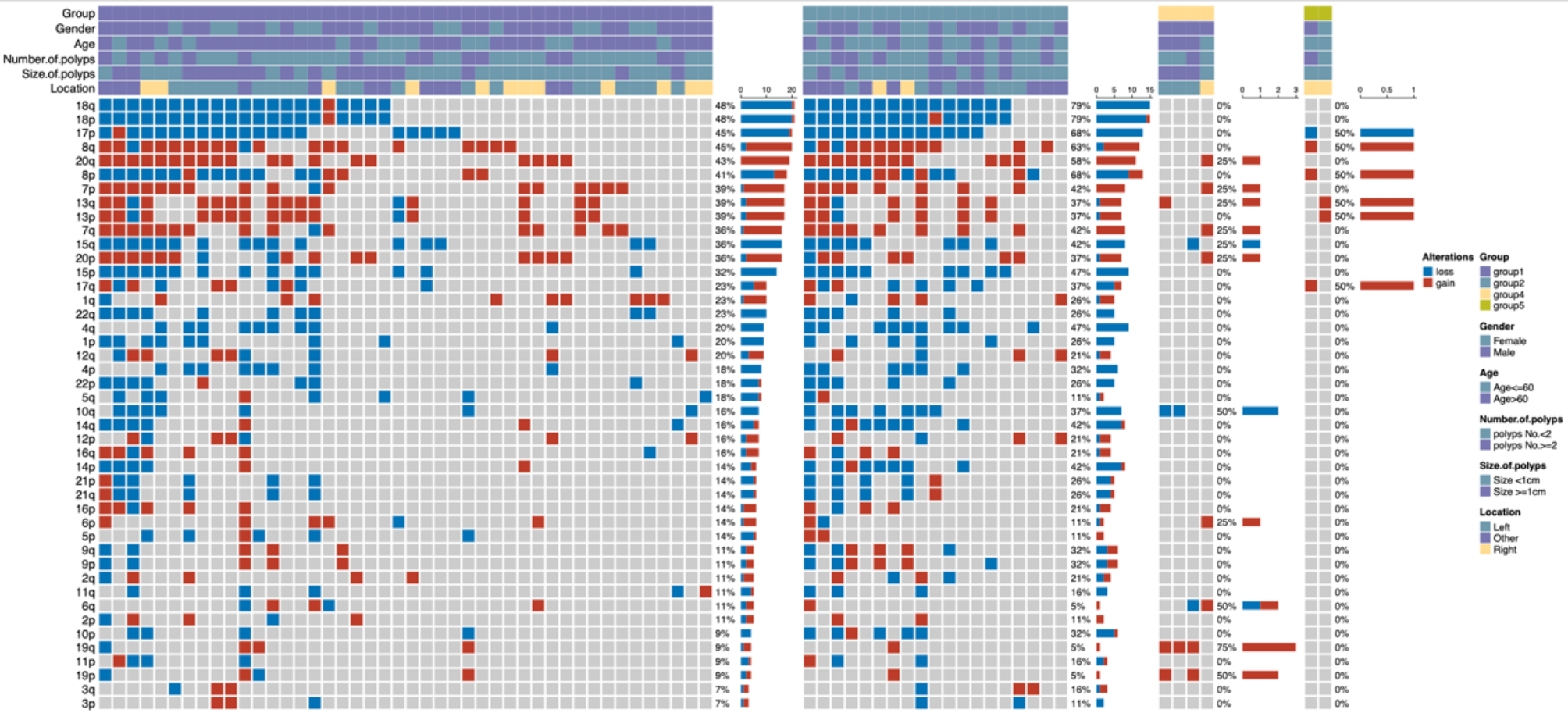

Heat map of chromosome copy-number changes in a recurrent sample from an adenoma patient after resection. The yellow color indicates copy-number gain, and blue indicates copy-number loss. Group 1 represents the presence of CIN in the first resected adenoma sample and the presence of CIN in the recurrent adenocarcinoma sample. Group 2 represents the absence of CIN in the first resected adenoma and the presence of CIN in the recurrent adenocarcinoma. Group 3 represents the absence of CIN in the first resected adenoma and the absence of CIN in the recurrent adenocarcinoma (which was not detected in this study). Group 4 represents the presence of CIN in the first resection of the adenoma and the absence of carcinoma in the recurrence. Group 5 represents the first resection of the adenoma without CIN and no carcinoma in the recurrence.
