Fig. 4
From: Staphylococcus saprophyticus prevents skin damage by inhibiting Staphylococcus aureus quorum sensing

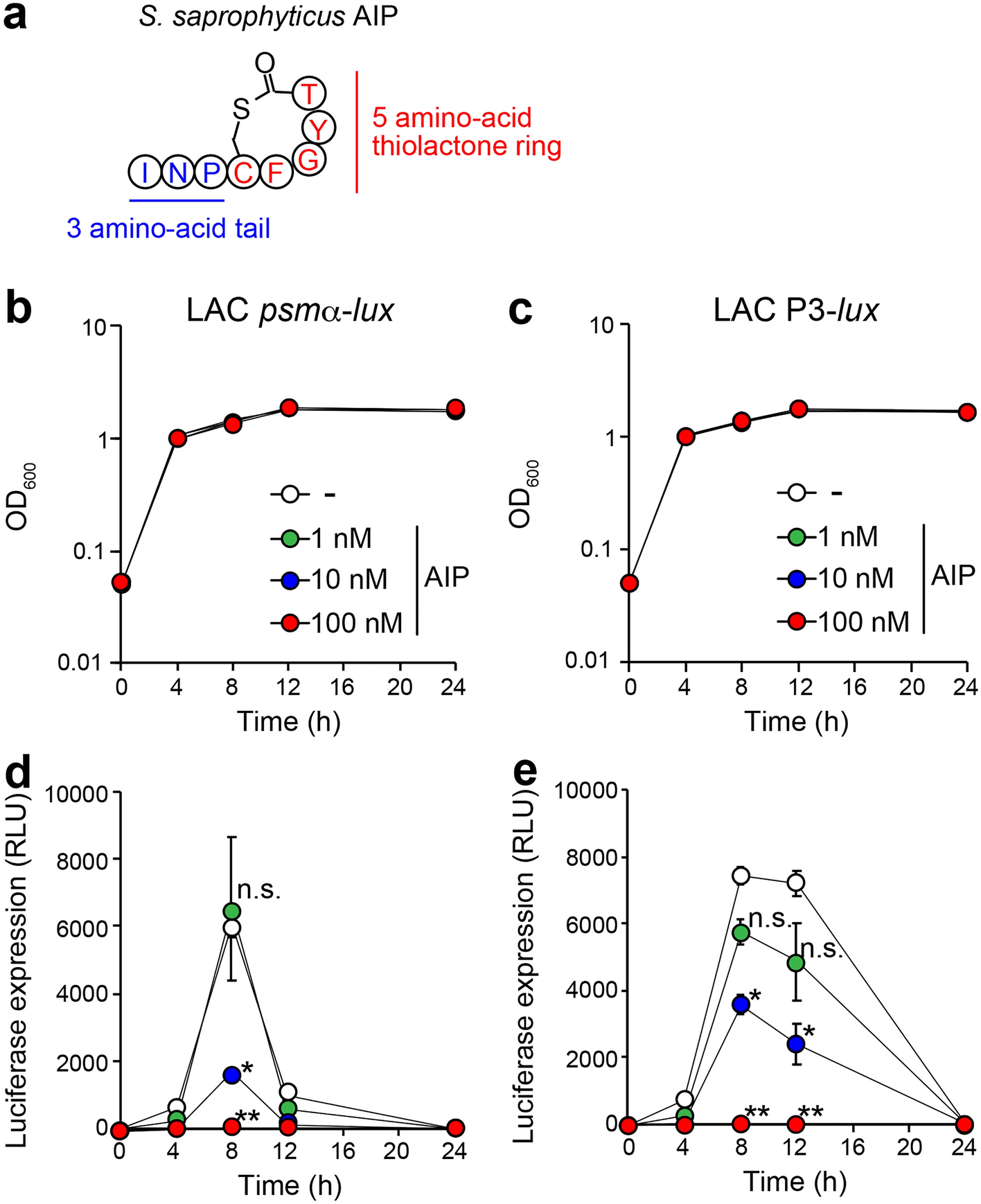

Synthetic S. saprophyticus AIP suppresses agr expression in the S. aureus LAC strain. (a) S. saprophyticus AIP structure. (b–e) S. aureus LAC psmα-lux (b, d) and P3-lux (c, e) reporter strains were cultured in TSB containing 1, 10, or 100 nM S. saprophyticus AIP for 24 h. Growth (b,c) and lux expression (d,e) over 24 h are shown. Data are mean ± SD from three independent experiments. n.s., not significant, *p < 0.05, **p < 0.01 versus DMSO (–) according to one-way ANOVA with Tukey’s correction.
