Fig. 1
From: Design, development and performance evaluation of henna harvester

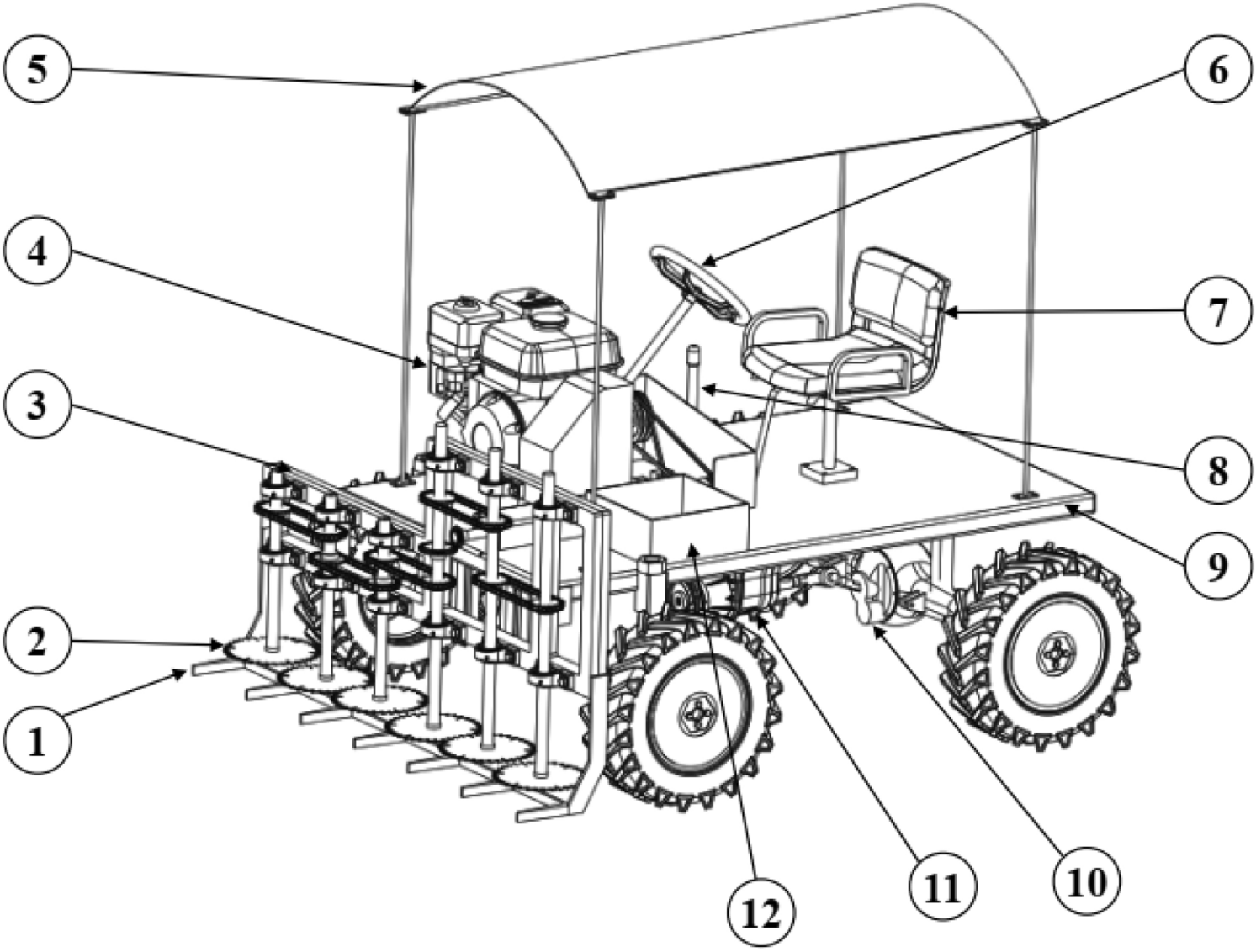

Isometric view of henna harvesting mechanism (1. Crop guider 2. Cutting blades 3. Cutting head support frame 4. Engine 5. Roof 6. Steering wheel 7.Operator’s seat 8.Speed control lever 9. Main frame 10. Differential unit 11.Gear box 12.Tool box).
