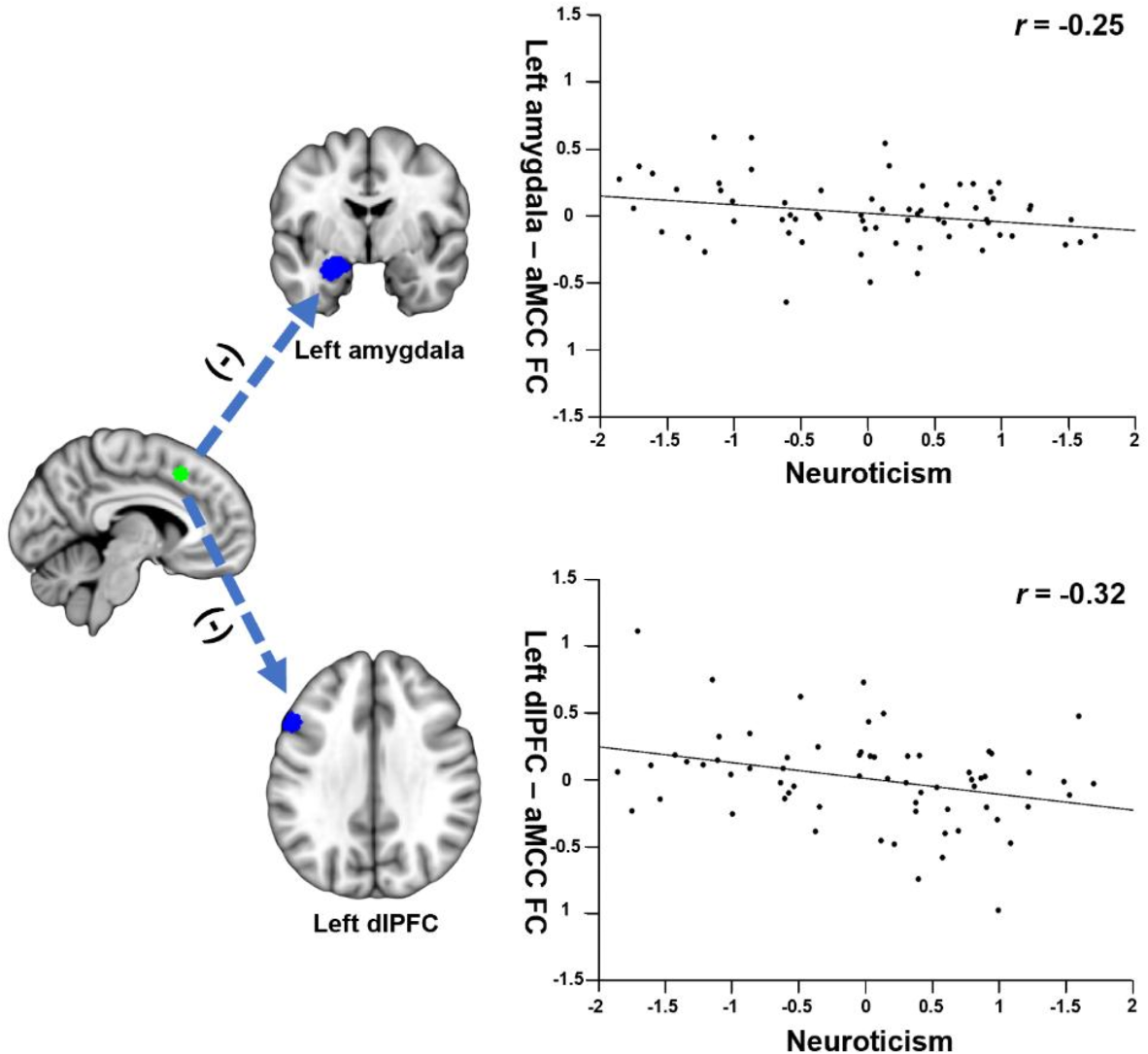

Fig. 3
From: Neuroticism modulates functional connectivity of the midcingulate cortex during emotional conflict
Functional connectivity modulated by NT. NT was associated with reduced FC between the aMCC and the left dlPFC as well as the left amygdala in EI vs. EC contrast. The green circle indicates the aMCC seed region used in the gPPI analysis; aMCC anterior midcingulate cortex, dlPFC dorsolateral prefrontal cortex, FC functional connectivity; aMCC peak MNI coordinate (x = − 6, y = 18, z = 46); left dlPFC peak MNI coordinate (x = − 52, y = 18, z = 32). Brain images were generated using MRIcroGL software (version 1.2.20220720), available at https://www.nitrc.org/projects/mricrogl.
