Fig. 3
From: RWD-DOF: a dual-degree-of-freedom reconfigurable wheel design for improved robotic mobility

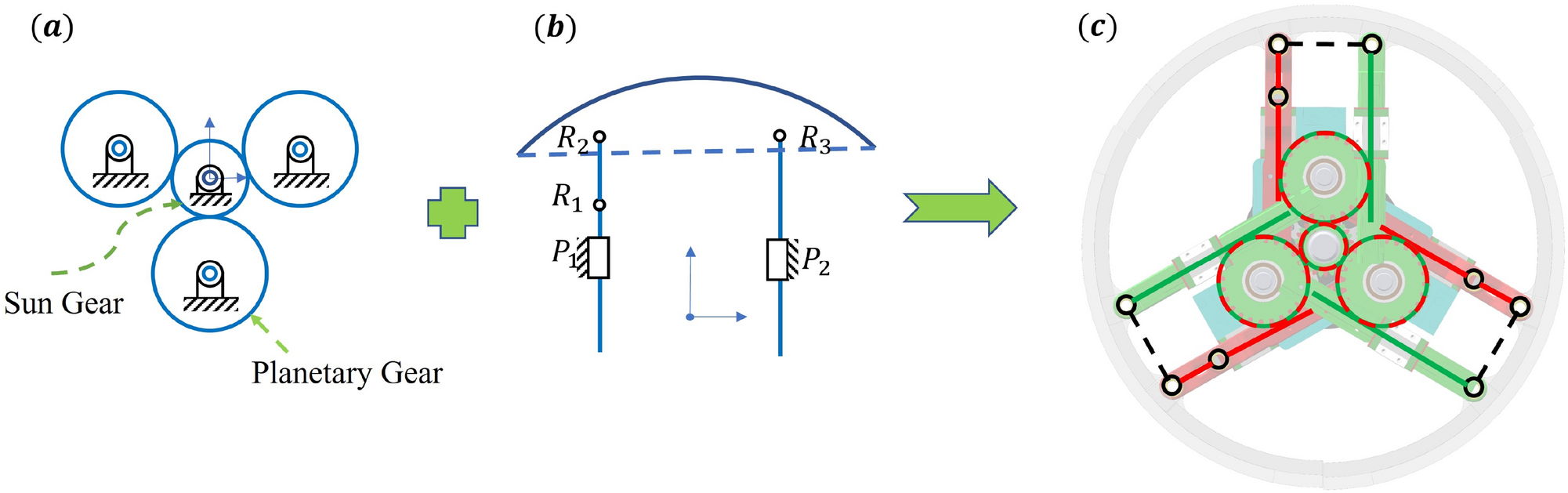

Composite structural diagram of the conceptual design of the reconfigurable wheel. (a) Planetary gear mechanisms; (b) five-bar parallel mechanism; (c) reconfigurable wheel mechanism.
