Fig. 8
From: RWD-DOF: a dual-degree-of-freedom reconfigurable wheel design for improved robotic mobility

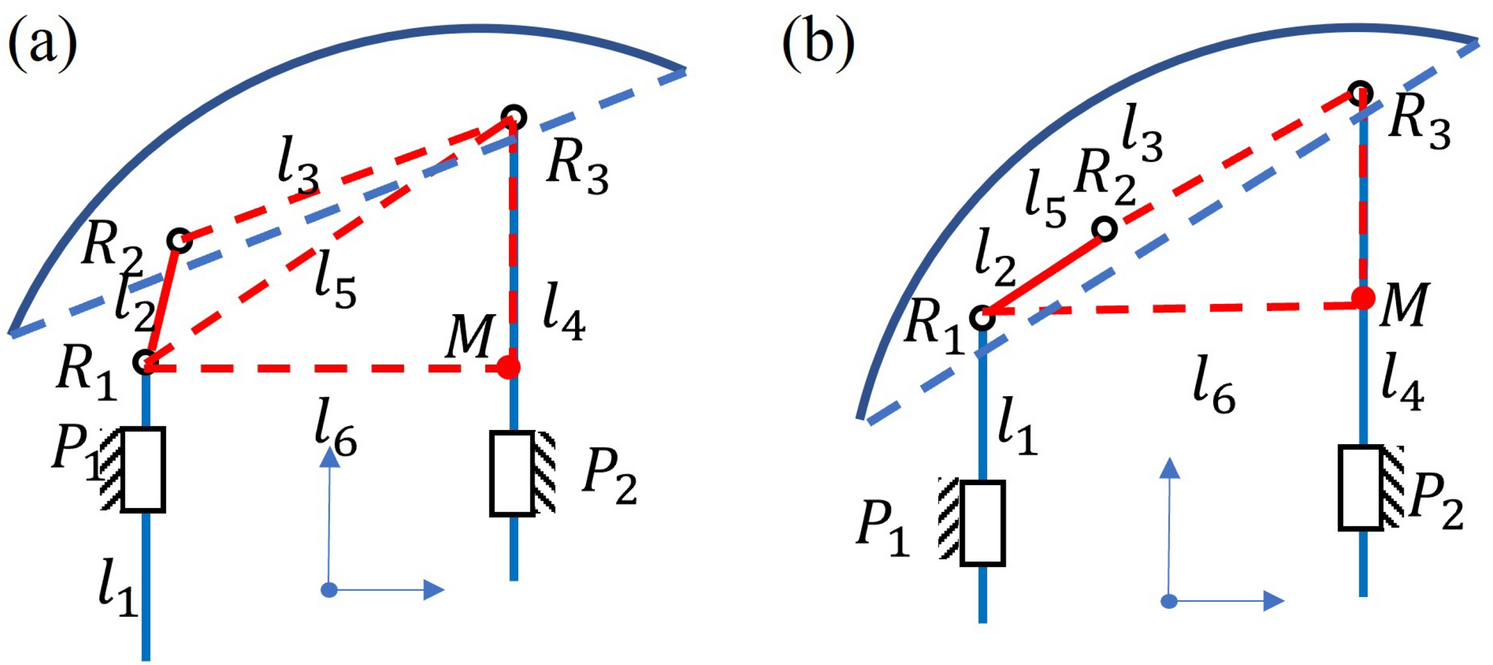

Counterclockwise movement of the rim. (a) Shows the schematic of the rim rotating counterclockwise; (b) shows the schematic when the singularity is reached.
