Fig. 6
From: Quantum contingency analysis for power system steady-state security identification

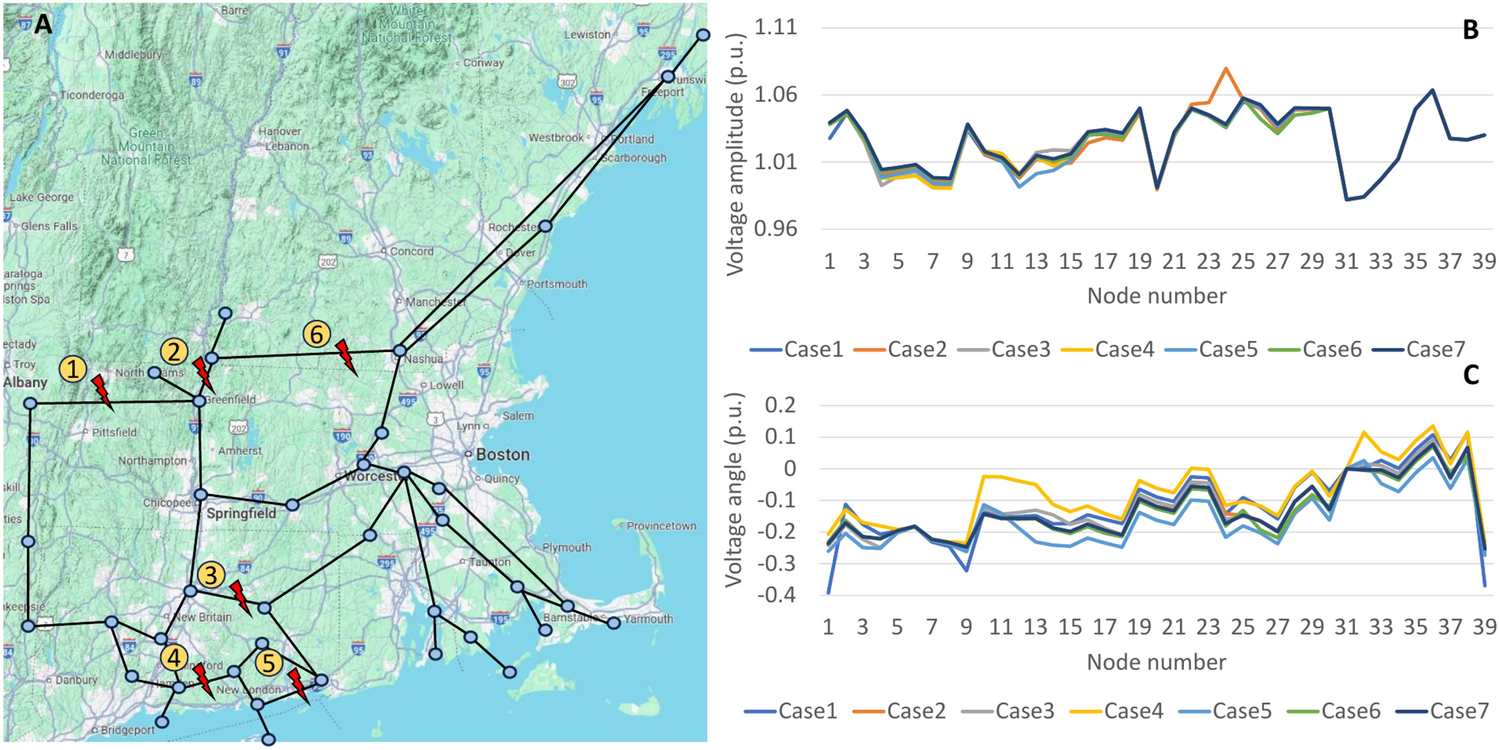

Voltage profiles of the New England system under line outages and normal operation scenarios. (A) System topology and the locations of line outages (The system topology can be found in the references30,31, the system map is printed from @2025 Google which can be found from link32). (B) Voltage amplitudes under the line outages and normal operation scenarios. Scenarios 1-6: line outages, Scenario 7: normal operation. (C) Voltage angles under the line outages and normal operation. scenarios.
