Fig. 6 | Scientific Reports

Fig. 6

From: Unveiling leaf rust resistance introgressed from non-progenitor wild species Aegilops kotschyi into hexaploid wheat

Fig. 6The alt text for this image may have been generated using AI.

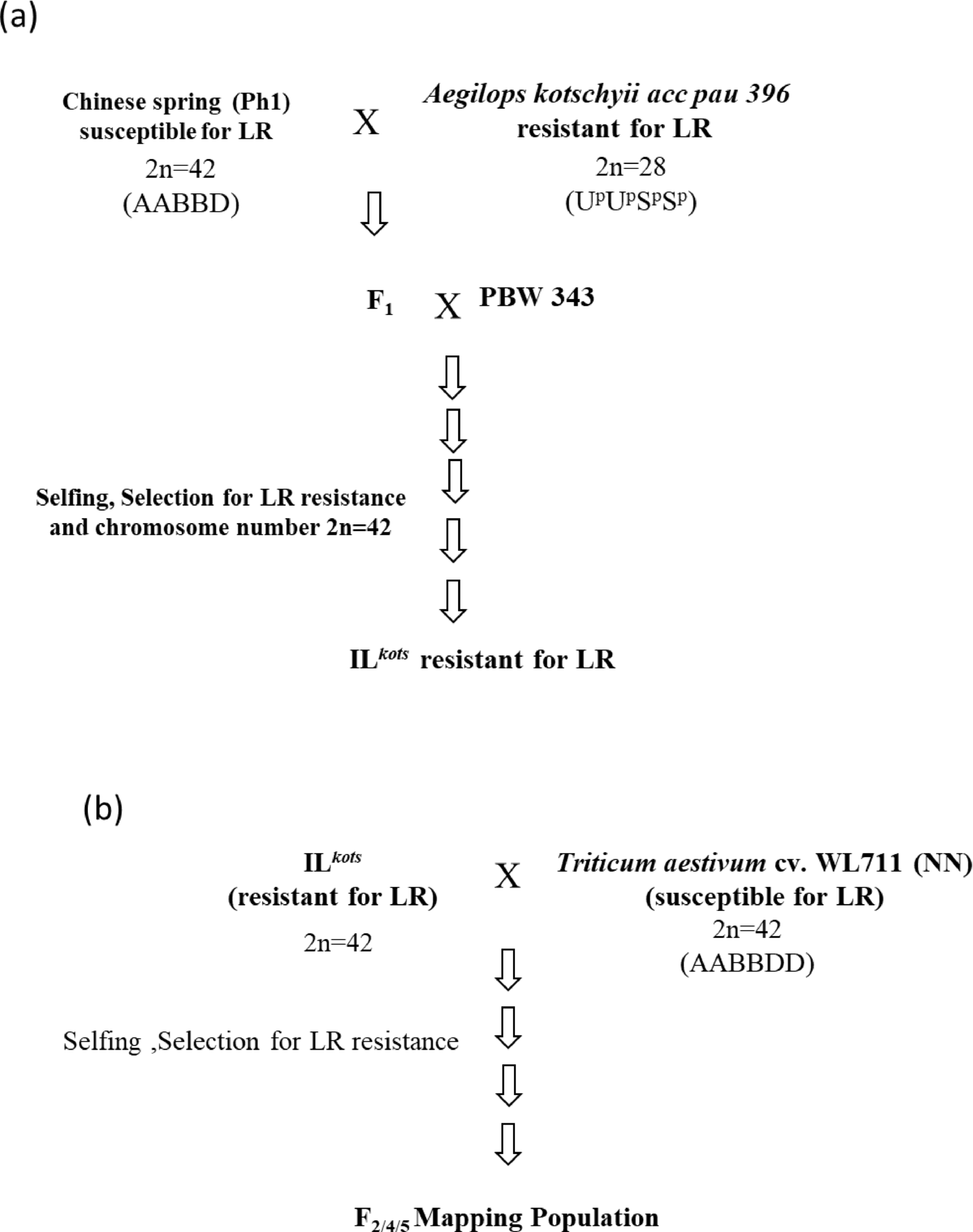

Flow chart illustrating (a) the development Introgression line and (b) the development of mapping population. (a) Leaf rust (LR) resistant Introgression line Kotschyi 396 (ILkots) was derived from wild tetraploid non-progenitor Ae. kotschyi (UUSS) accession pau 396, through first crossing with Ph1b mutant version of CS(S) and then backcrossing with LR susceptible wheat cultivar PBW343. (b) The leaf rust resistant ILkots was crossed with leaf rust susceptible cultivar WL711NN and selfed for few generations to develop mapping population.
