Fig. 11

From: Monitoring water percolation in a laboratory compacted soil dam using time-lapse electrical resistivity tomography

Fig. 11

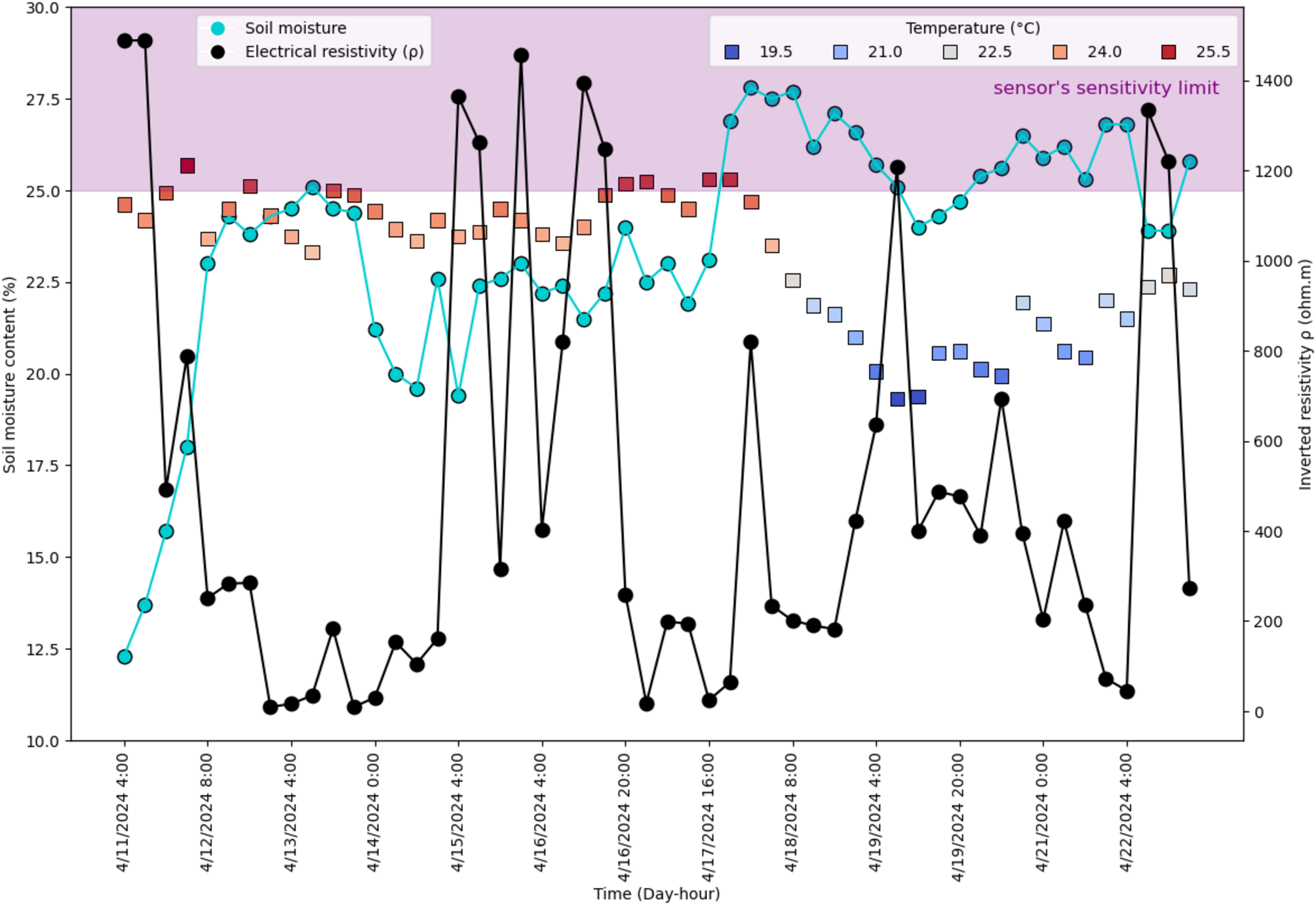

Correlation between soil moisture, inverted resistivity, and temperature for Sensor 2. Increased soil moisture led to decreased resistivity, particularly between 04/11 and 04/14. On 04/17, despite higher moisture levels, lower temperatures resulted in reduced resistivity due to decreased evaporation, highlighting the significance of temperature monitoring for dam stability.
