Fig. 10 | Scientific Reports

Fig. 10

From: Effect of vacancies on blue-colored calcium phosphate scaffolds derived from Nile tilapia bone powder

Fig. 10

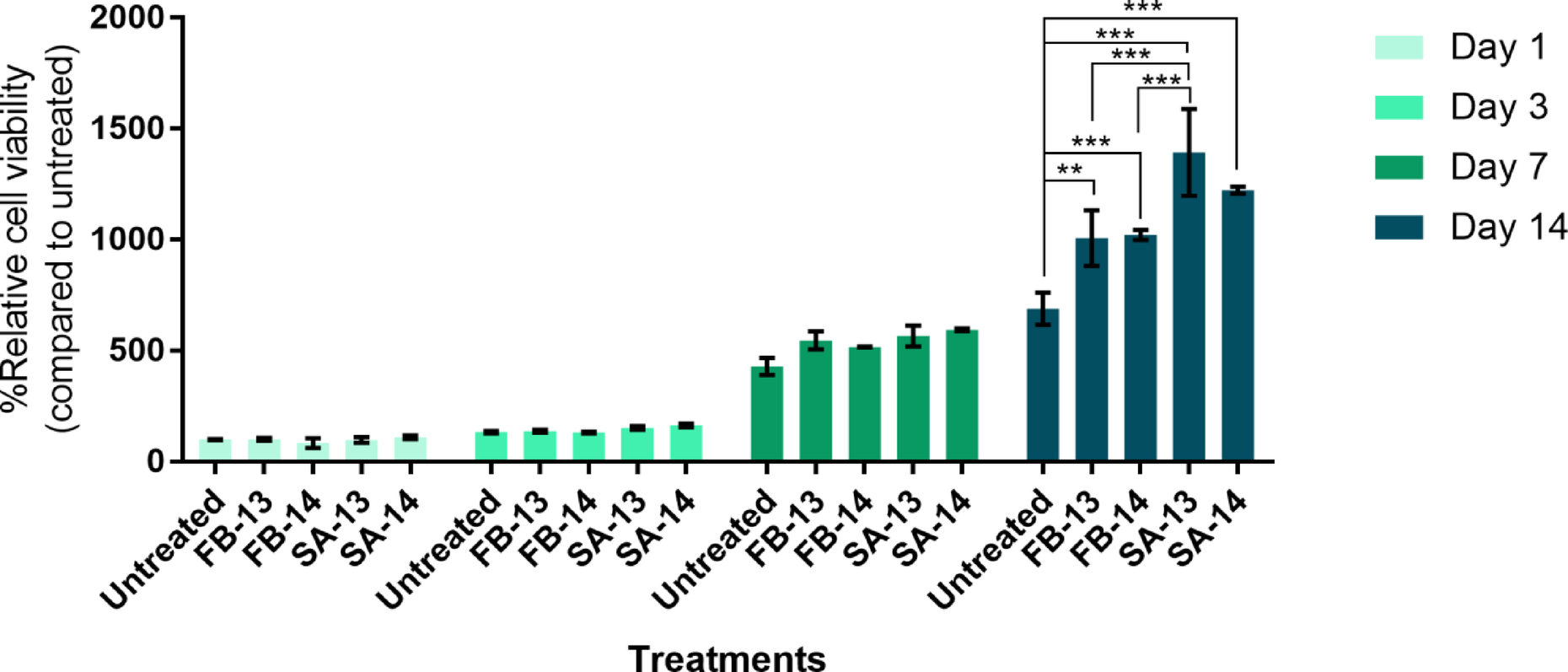

Relative cell viability (%) of MC3T3-E1 cells that were seeded onto the scaffolds made of Fishbone HAp (FB-13C and FB-14C) and commercial HAp from Sigma Aldrich® (SA-13C and SA-14C). Untreated cells were seeded into blank wells without the scaffolds. Data are expressed as mean ± SEM. Two-way ANOVA with Tukey multiple comparisons were performed. ***p ≤ 0.001, **p ≤ 0.01, and *p ≤ 0.5.
