Fig. 1
From: Research on the ejection performance of an ejector with low pressure and back pressure

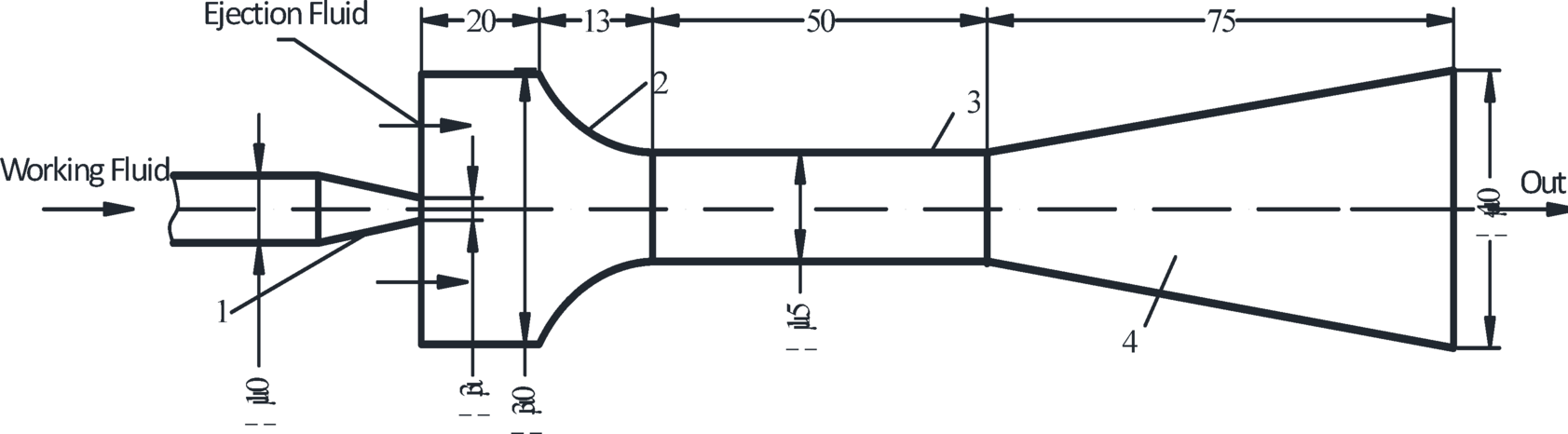

The main components of the ejector 1—Nozzle; 2—Shrink tube; 3—Mixing tube; 4—Diffuser tube.
Fig. 1 | Scientific Reports
From: Research on the ejection performance of an ejector with low pressure and back pressure
The main components of the ejector 1—Nozzle; 2—Shrink tube; 3—Mixing tube; 4—Diffuser tube.
