Fig. 1
From: The identity of implant materials governs the antimicrobial efficacy of SET-M33

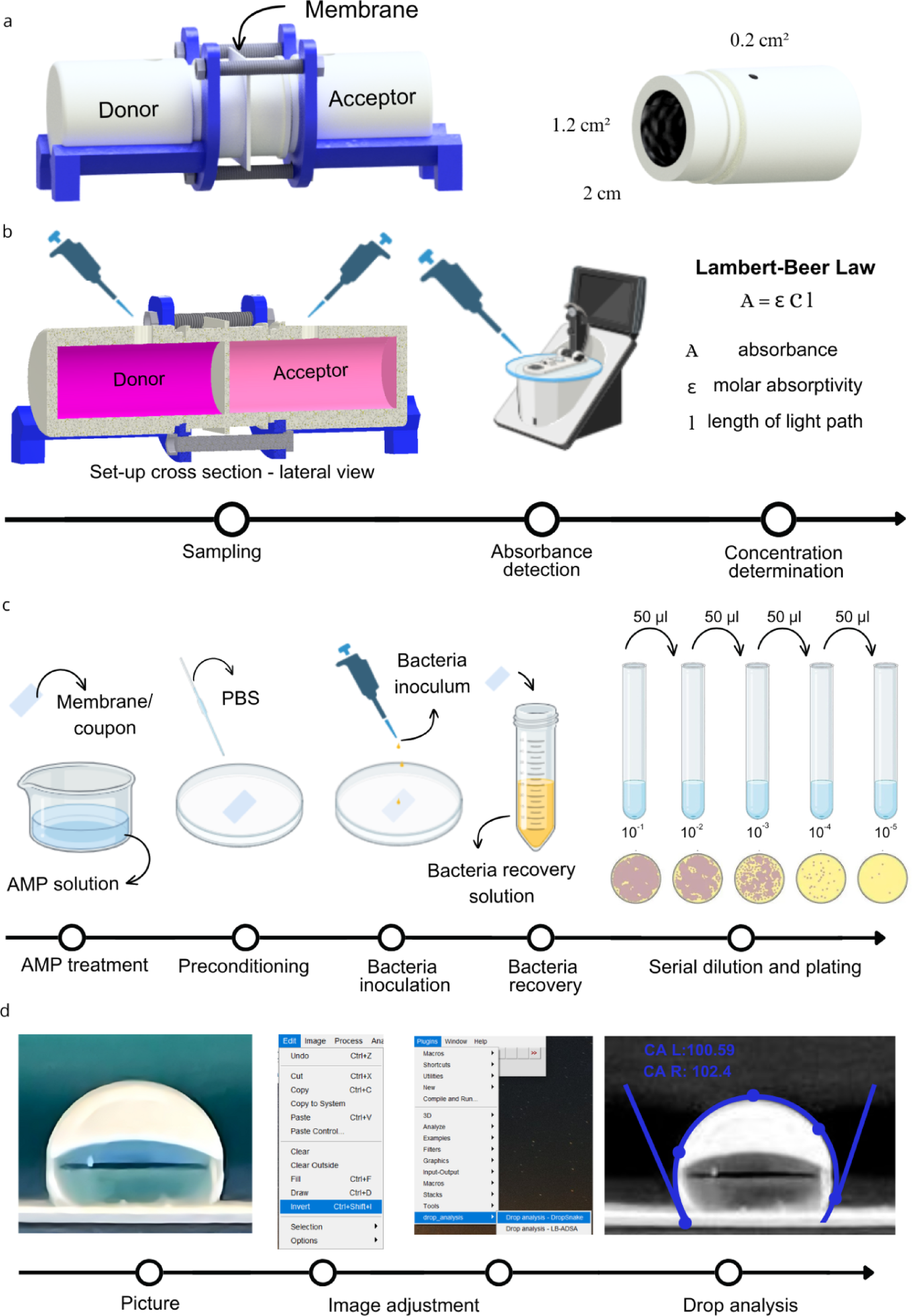

Testing set-ups and protocols are illustrated as follows: (a) costum-made side-by-side cell diffusion set up, (b) diffusion testing protocol, (c) antimicrobial efficiency testing: (1) sample treatment, (2) sample preconditioning, (3) bacteria inoculation, (4) bacteria recovery, (5) enumeration, (d) example of image processing for water static contact angle analysis.
