Fig. 6

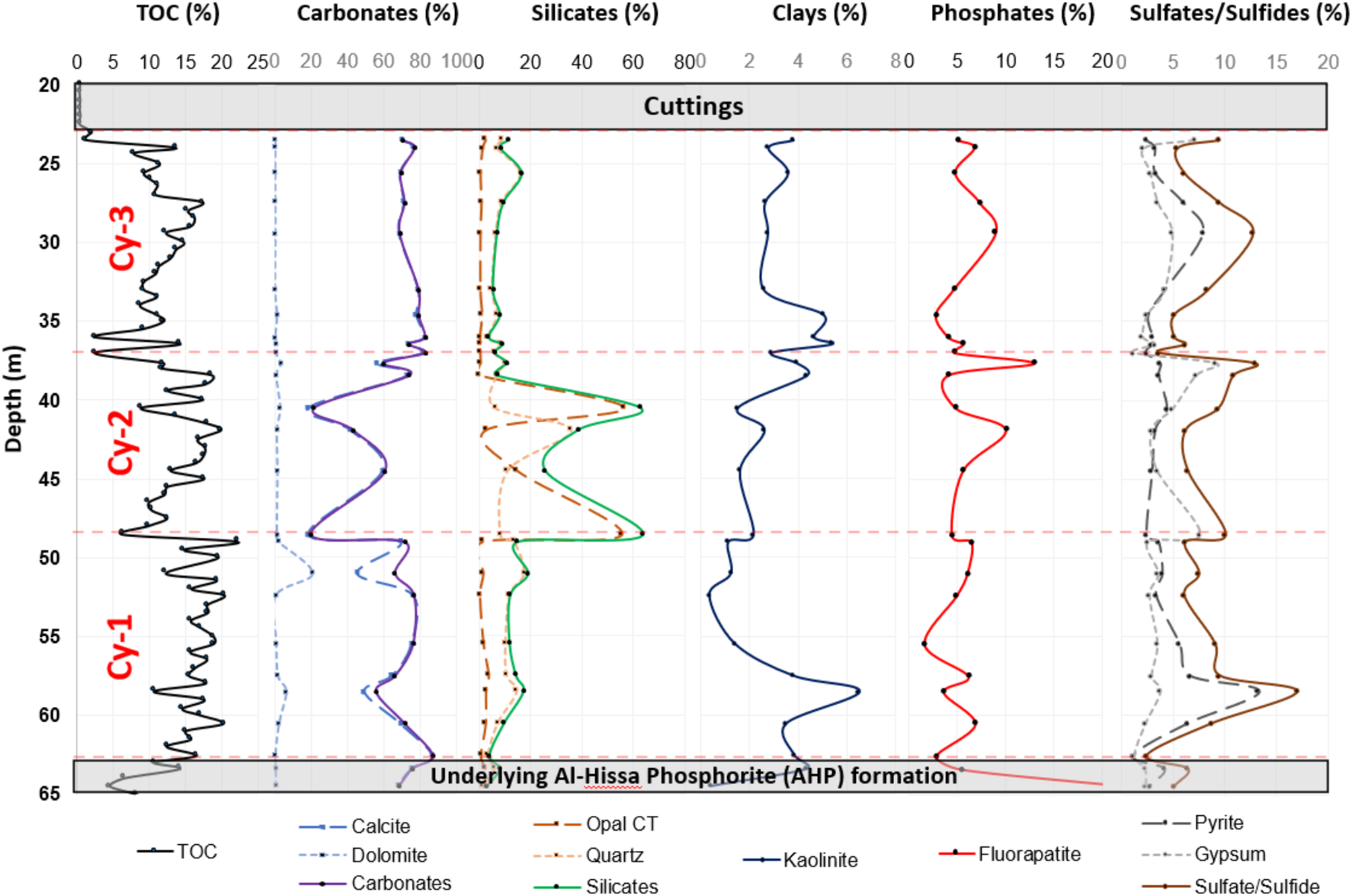

The mineralogical distribution of the JSR section in the core in terms of the identified cycles. Here, the dotted lines show the identified mineral distributions, while the solid lines show the mineral groups.
Fig. 6 | Scientific Reports
The mineralogical distribution of the JSR section in the core in terms of the identified cycles. Here, the dotted lines show the identified mineral distributions, while the solid lines show the mineral groups.
