Fig. 9

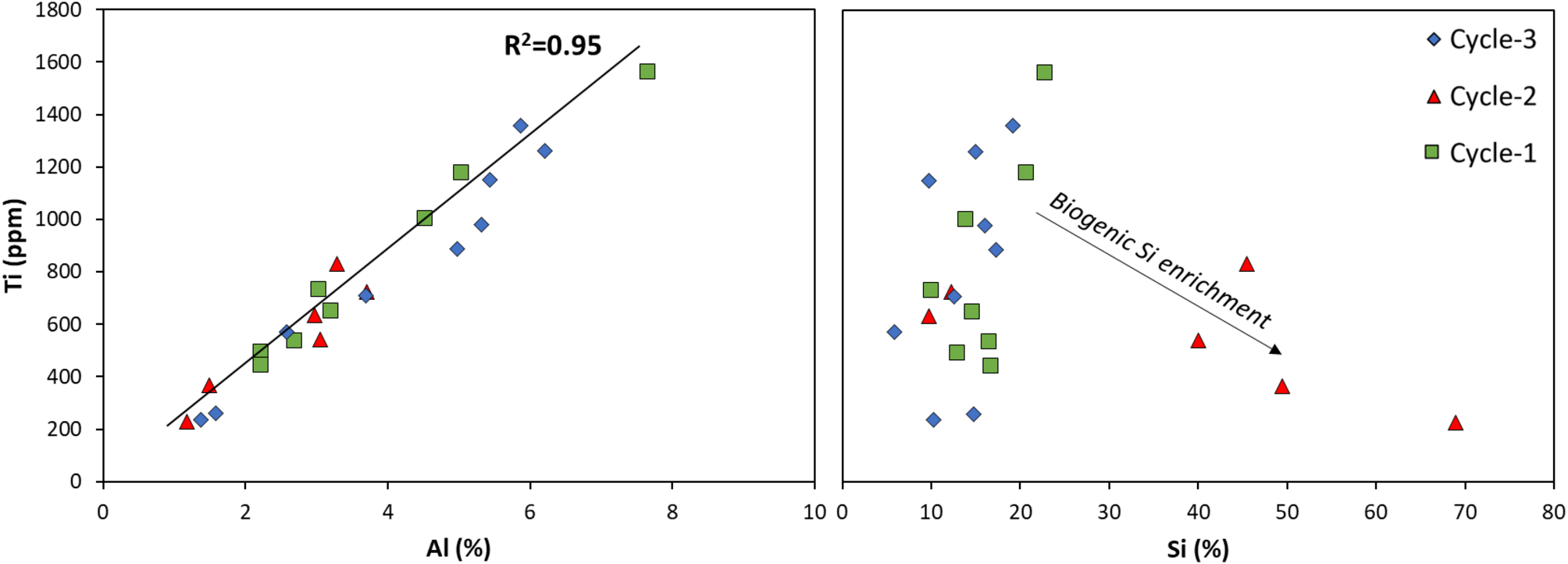

The cross-plots of (a) Al vs. Ti and (b) Si vs. Ti, where the former shows a strong positive correlation and the latter shows a poorer negative correlation, with several samples deviating significantly from any trend due to the presence of biogenic silica.
