From: The molecular characteristics of DNA damage and repair related to P53 mutation for predicting the recurrence and immunotherapy response in hepatocellular carcinoma

Fig. 4

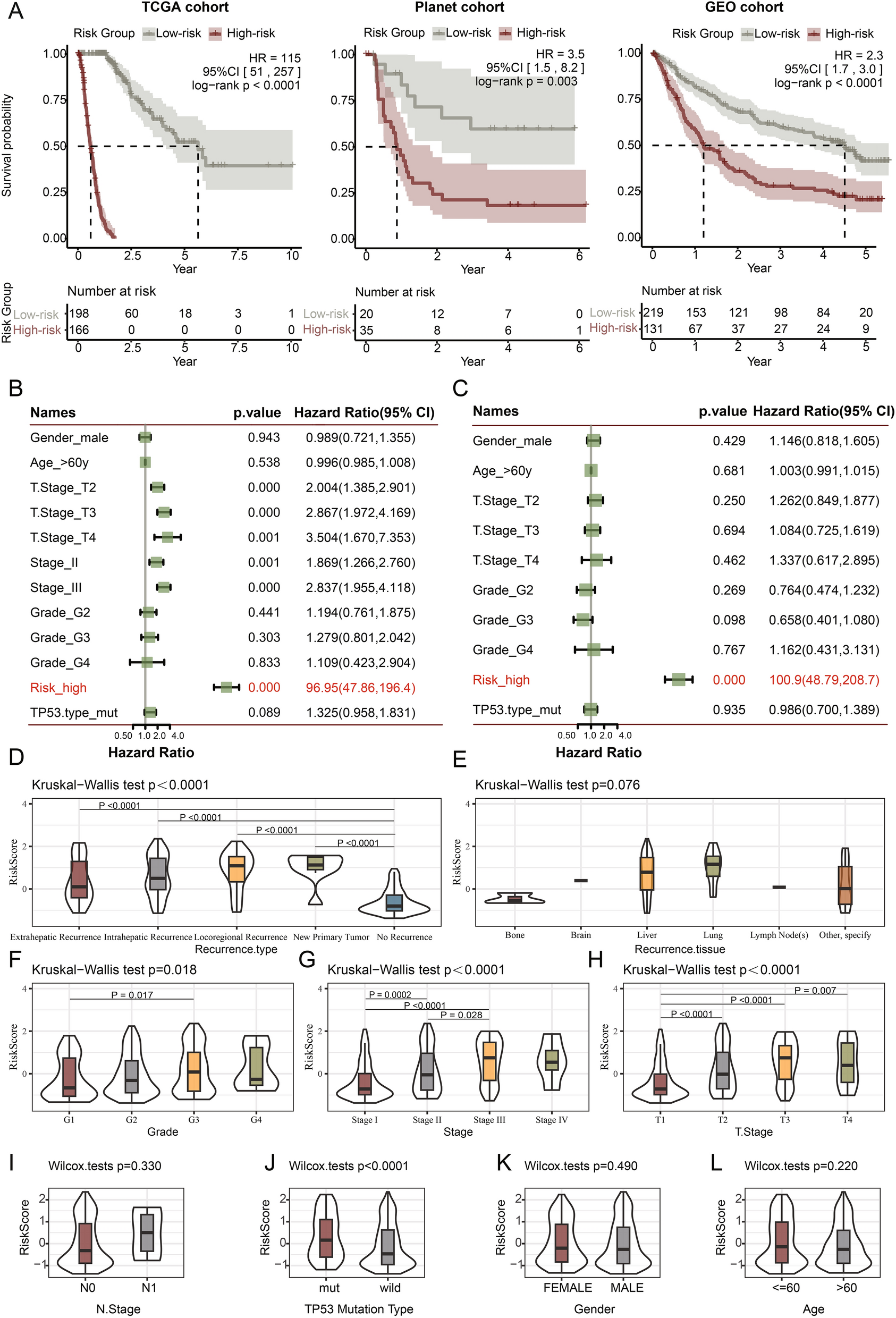

The high-risk group presented worse clinical prognosis. (A) Kaplan–Meier curves of RFS based on the log-rank test in TCGA, PLANET, and GEO for the high and low-risk groups. (B) Forest plot of univariate Cox regression of risk scores and clinical parameters. (C) Forest plot of multivariate Cox regression of risk scores and clinical parameters. (D) Combined violin and box plots of risk scores and type of recurrence. (E) Combined violin and box plots of risk scores and recurrence tissue. (F) Combined violin and box plots of risk scores and pathological grades. (G) Combined violin and box plots of risk scores and stages. (H) Combined violin and box plots of risk scores and T.stage. (I) Combined violin and box plots of risk scores and N.stage. (J) Combined violin and box plots of risk scores and P53 mutation type. (K) Combined violin and box plots of risk scores and gender. (L) Combined violin and box plots of risk scores and age.
