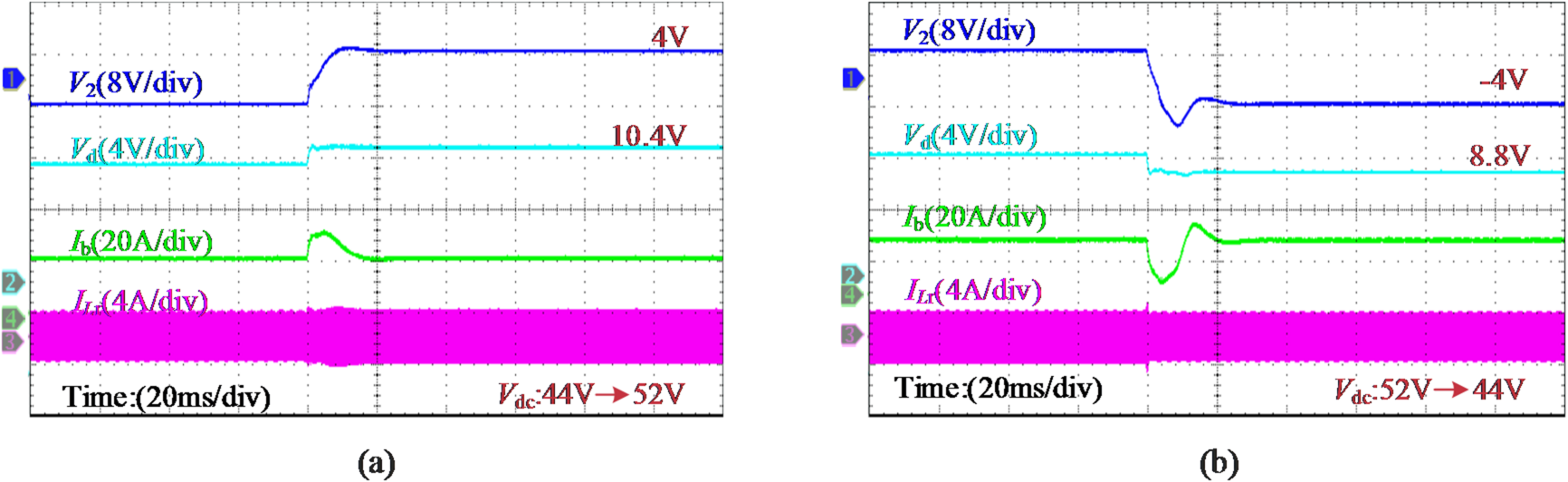

Fig. 22
System transient response waveforms for Vdc step change, where Vb is fixed at 48 V to represent step-up/down conditions. (a) Vdc step-up from 44 V to 52 V. (b) Vdc step-down from 52 V to 44 V.
Fig. 22 | Scientific Reports
System transient response waveforms for Vdc step change, where Vb is fixed at 48 V to represent step-up/down conditions. (a) Vdc step-up from 44 V to 52 V. (b) Vdc step-down from 52 V to 44 V.
