Fig. 7
From: Smart, automated junctional tourniquets leveraging AI-driven ultrasound guidance

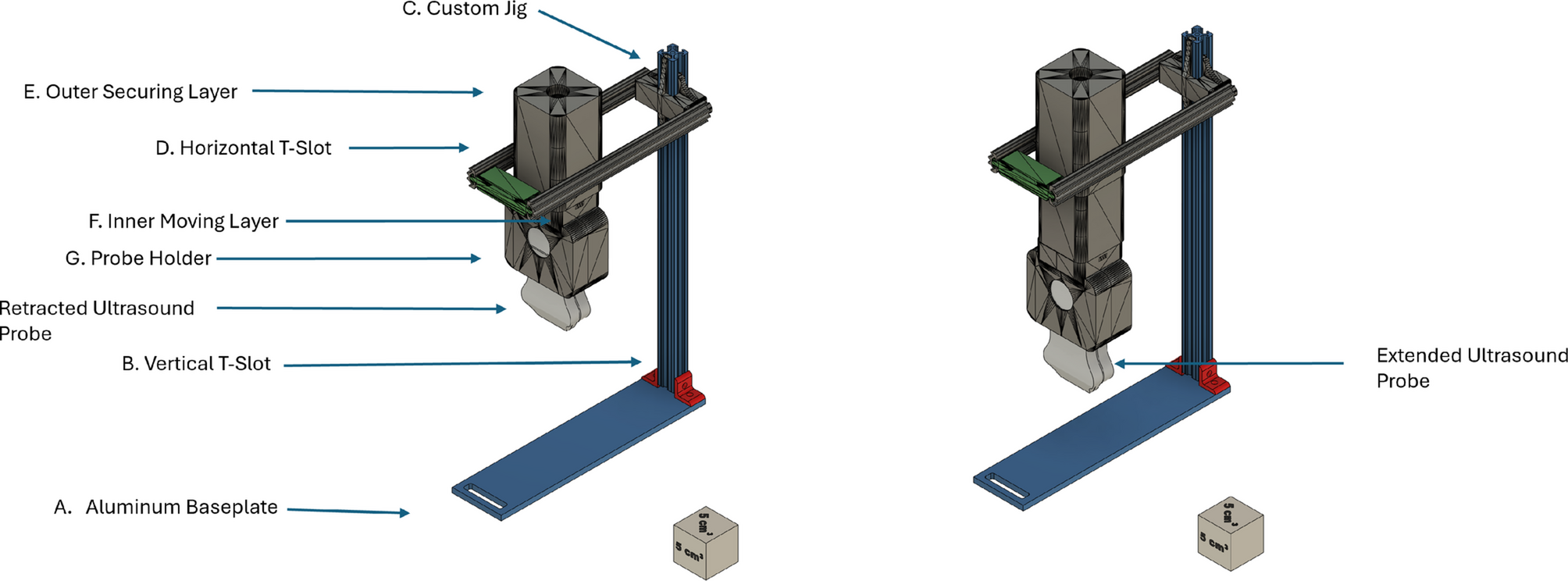

Design of the Frame Reinforced Junctional Tourniquet (FRejT). A computer-aided design overview of the FRejT prototype is shown along with the labels for the (A) aluminum base plate, (B) vertical t-slot extrusion, (C) 3D-printed jig for attachment to (D) horizontal t-slot extrusions, (E – G) main housing of the US probe comprised of (E) outer securing layer, (F) inner moving layer, and (G) probe holder.
