Introduction

In real life, most systems are dynamic and nonlinear. If time is continuously varying, then the mathematical model to be developed is a Nonlinear partial differential equation (NLPDE). NLPDEs have been applied in numerous fields such as: fluids dynamics, biophysics, electromagnetic theory, plasma physics, electrochemistry, high energy physics, optical fibers, quantum mechanics and even in quantum field theories. The research in nonlinear equations is an interesting and important discipline that provides comprehensive data on solitary waves’ dynamics in physical systems. Stable and localized wave solutions are the groundwork to research nonlinear models. One of the most sought-after models for describing soliton dynamics under varied circumstances are the complex Ginzburg–Landu equation1, the (2+1)-dimensional complex modified Korteweg–de Vries system2, Chen–Lee–Liu (pCLL) dynamical equation3, Complex-Coupled Kuralay System (CCKS)4, The Nonlinear Dispersive Modified Benjamin-Bona-Mahony Equation5, cold bosonic atoms6, the nonlinear Tzitaeica–Dodd–Bullough model7, the nonlinear Pochhammer–Chree equation8, the -dimensional generalized Burgers–Fisher (GBF) model9, the fractional Chaffee-Infante equation10 and (2 + 1)-dimensional Bogoyavlenskii’s breaking soliton system11, double dispersive sharma-Tasso-Olver equation12, the Westervelt equation13. Some of the powerful and efficient methods for producing traveling wave solutions in various formats are the modified F-expansion approach14, the nano-ionic currents equation15, Hartree equation16, the unconditionally stable (US) Chebyshev (CS) finite-difference time-domain (FDTD) method17, nonlinear integral impulsive differential equation18, the Bernoulli Sub-ODE method19, Shynaray-IIA equations20, the Kudryashov method21 and the Sardar-sub equation method22.

The generalized third-order nonlinear Schrödinger equation (NLSE), which includes higher-order terms and more intricate interactions, is the subject of this investigation. These higher order terms are important for better understanding and accurate modeling of the behavior of high-order waves. The generalized third-order nonlinear Schrödinger (NLSE) model models ultrashort optical pulse propagation in plasma systems and nonlinear fibers with higher-order effects such as self-steepening and third-order dispersion. These effects have not been fully investigated in earlier studies on their impact on soliton dynamics. This contribution bridges the gap by using the generalized auxiliary equation method and IMSSEM to derive new soliton solutions and examine the dynamical behavior. Here, the goal is to acquire exact solutions and examine how the solutions vary under different conditions using the generalized auxiliary aquation method and IMSSEM.

The motivation for using both methods lies in their complementary strengths. The generalized auxiliary aquation method provides a systematic and relatively simple framework for constructing a wide range of analytical solutions, while the IMSSEM extends this capability by introducing improved transformations and additional parameters that allow for more complex, generalized, and flexible soliton structures. The combined use of these two approaches not only ensures cross-validation of the obtained results but also enhances the diversity, accuracy, and physical interpretability of the solutions. Compared to traditional single-method approaches, the proposed combination offers broader solution sets and deeper insights into the nonlinear dynamics of the model. The originality of this work lies not only in the derivation of new classes of soliton and periodic wave solutions but also in performing a comprehensive dynamical analysis involving bifurcation, chaotic, and sensitivity studies. These findings reveal more about the intricate behavior of nonlinear systems and show how innovative and successful the suggested strategies are in comparison to other techniques. In the fields where higher-order effects are crucial for wave motion and behavior, such as optics, fluid dynamics and plasma physics, this approach will improve the analysis of rich wave behaviors and open up new possibilities for the use of nonlinear Schrödinger models. This work is novel in that it applies two potent analytical techniques to the generalized third-order NLS equation, which has not been thoroughly examined in prior research: the generalized auxiliary equation method and the IMSSEM. The combined dynamical analysis of bifurcation, chaos, and sensitivity was frequently overlooked in earlier works, which mainly concentrated on obtaining specific types of soliton solutions using traditional analytical techniques. As an alternative, the current study not only offers a more extensive and generalized class of analytical soliton solutions, but it also conducts a thorough dynamical analysis that includes sensitivity, bifurcation, and chaotic analyses to look at the model’s stability and qualitative behavior. By providing more varied solution structures, enhanced analytical flexibility, and more profound physical insights into the nonlinear dynamics, this dual-method framework closes the gap in the literature and broadens the focus of earlier studies on the NLS equation.

Governing equation

The form of the generalized third-order NLSE is as follows23:

$$\begin{aligned} i\left( \frac{\partial w}{\partial t}+\frac{\partial ^3w}{\partial x^3}\right) +\left| w\right| ^2\left( \beta _1w +i\beta _2\frac{\partial w}{\partial x}\right) +i\beta _3\frac{\partial \left( \left| w\right| ^2\right) }{\partial x^2}w= 0. \end{aligned}$$
(1.1)

The complex-valued function w(x, t) and the values of the parameters \(\beta _1\), \(\beta _2\), and \(\beta _3\) are all real numbers. Equation (1.1) is used to represent ultrashort pulses in optical fibers. In the equation above, the term of second order derivative appears usually. Third-order dispersion, which is represented by the third-order term in the generalized nonlinear Schrödinger equation, is crucial in optical fibers when ultrashort or broadband pulses are involved. It takes into consideration the frequency dependence of group velocity, which results in dispersive wave generation, self-steepening, and asymmetric pulse distortion. In contemporary high-speed or photonic crystal fibers, where higher-order dispersion greatly affects pulse shape and stability, the standard NLSE is unable to adequately characterize pulse propagation without this term. Nevertheless, after introducing the third order derivative expression, we are able to eliminate the second order derivative through a gauge transformation. When both \(\beta _1=\beta _3=0\), equation (1.1) turns out to be the complex version of the modified KdV or Hirota equation and is solved by the inverse scattering transform method. Nasreen et al.24 used the generalized Riccati mapping approach to give a list of several types of soliton solutions to the model. The model in this study is founded on a deterministic approach that disregards stochastic perturbations or the effects of noise. For actual physical systems like optical fibers or plasmas, a random fluctuation can affect soliton amplitude and stability. Bifurcation analysis is the study of how changes in parameters or otherwise affect the qualitative changes in the solutions of a system25,26. Bifurcations may occur due to the loss of old solutions, or stability shifts. It is useful for deriving insights of such systems’ behavior in real life applications and prediction and control of such systems’ behavior. To determine if a dynamical system displays periodic solutions or chaotic behavior, then introduced a perturbed term into the resulting dynamical system. In physics, engineering, economics and communication chaotic behavior is exhibited. Moreover, the sensitivity analysis of the dynamical system also shows that minor adjustments to the initial conditions have no effect on the solution’s stability27.

In this research, generalized auxiliary equation method and IMSSEM are used to solve the generalized third-order NLSE. The various soliton solutions are obtained including M-shape solitons, bell, anti-bell, kink, anti-kink, periodic and dark solitons. Dynamical analysis of the proposed model are carried out by applying concepts from planar dynamical systems. Although exact solutions are already available, the same kind of solutions derived through other analytical methods serve to validate, generalize, and compare the efficiency. The same physical behavior can be shown by each method via a different mathematical path, verifying the correctness and stability of the earlier known results. Additionally, certain methods such as generalized auxiliary equation method and IMSSEM can yield simpler expressions, wider ranges of parameters, or new families of solutions, thereby further extending the understanding and range of applicability of the model.. This research provides important insights into the transitions between stable, unstable or chaotic states by closely analyzing the qualitative changes in a system’s behavior brought about by parameter adjustments. Sensitivity analysis can also be used to determine how the dynamics of the system behave when parameters are changed.

This paper organized as follows: In section 2, the generalized third-order NLSE is introduced, along with its formulation and significance in the theory of nonlinear waves. In section 3, the generalized auxiliary equation method and IMSSEM are given. Moving on to section 4, the article discusses the applications of these two methods. Visual evaluations and physical interpretation are discussed in section 5 and section 6, respectively. In section 7, the dynamical analysis of the proposed model is discussed. In section 8, novelty and comparison is discussed. In section 9, the conclusion is given.

Wave transformation

The model (1.1) is solved by choosing the following hypothesis.

$$\begin{aligned} w(x,t)=\phi (\xi )e^{iQ(x,t)}, \end{aligned}$$
(2.1)

where \(\xi =sx+pt\) and \(Q(x,t)=\alpha x+\gamma t+\theta\). In the wave profile, the amplitude component is represented as \(\phi\) and Q shows the phase factor. The frequencies of soliton are denoted by s and \(\alpha\). The wave numbers are denoted by p and \(\gamma\), while the phase constant is \(\theta\). Equation (2.1) is substituted into equation (1.1), the real and imaginary parts are separated to obtain

$$\begin{aligned} 3\alpha s^2 \phi ''+(\gamma -\alpha ^3)\phi +(\beta _2 \alpha -\beta _1)\phi ^3=0. \end{aligned}$$
(2.2)
$$\begin{aligned} s^3\phi ^{(3)}+(p-3\alpha ^2s)\phi '+s(\beta _2+2\beta _3)\phi ^2\phi '=0. \end{aligned}$$
(2.3)

Equation (2.3) is integrated and the integration constant is set to zero. Then

$$\begin{aligned} s^3\phi ''+(p-3\alpha ^2s)\phi +\frac{s}{3}(\beta _2+2\beta _3)\phi ^3=0. \end{aligned}$$
(2.4)

Due to the similarities between equations (2.2) and (2.4), the coefficients have the following relationship: \(\beta _1=-2\beta _3\alpha\), \(\gamma =\frac{3\alpha p-8\alpha ^3s}{s}\)

Methodologies

Generalized auxiliary equation method

To determine the exact solitory wave solutions of NLPDEs, the generalized auxiliary equation approach is employed28. The primary steps are listed below.

Step-1 The following is the standard form of NLPDE:

$$\begin{aligned} S(\psi ,\frac{\partial \psi }{\partial x},\frac{\partial \psi }{\partial t},\dots )=0, \end{aligned}$$
(3.1)

Applying the transformation

$$\begin{aligned} \psi (x,t)=N(\xi ), \xi (x,t)=sx+pt. \end{aligned}$$
(3.2)

By substituting equation (3.2) into equation (3.1), the NLODE is obtained as:

$$\begin{aligned} O(N,N',N'',\dots )=0. \end{aligned}$$
(3.3)

Step-2 Assuming that equation (3.3) has a solution

$$\begin{aligned} N(\xi )=a_0+\sum _{i=1}^J a_i\varpi ^i(\xi ),a_N\ne 0, \end{aligned}$$
(3.4)

where the constants \(a_i(i=1,2,3,\dots ,J)\) are to be found thereafter. The following auxiliary equation is satisfied by the function \(\zeta '(\xi )\):

$$\begin{aligned} \varpi '(\xi )=\sqrt{q_1\varpi (\xi )^2+q_2\varpi (\xi )^3+q_3\varpi (\xi )^4}. \end{aligned}$$
(3.5)

Step-3 The balancing strategy for the value of J will be applied in this step.

Step-4 Inserting equation (3.4) with equation (3.5) into equation (3.3). The family of solutions of equation (3.1) is thus obtained.

Trigonometric hyperbolic solutions

$$\begin{aligned} \varpi (\xi )=\frac{-q_1q_2\text {sech}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2-q_1q_3(1\pm \tanh (\frac{\sqrt{q_1}}{2}\xi )},b_1>0. \end{aligned}$$
(3.6)
$$\begin{aligned} \varpi (\xi )=\frac{q_1q_2 \text {csch}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2-q_1q_3(1\pm \coth (\frac{\sqrt{q_1}}{2}\xi )},b_1>0. \end{aligned}$$
(3.7)
$$\begin{aligned} \varpi (\xi )=\frac{2q_1\text {sech}^2(\sqrt{q_1}\xi )}{\pm \sqrt{\zeta }-q_2\text {sech}(\sqrt{q_1}\xi )}, q_1>0, \zeta>0. \end{aligned}$$
(3.8)
$$\begin{aligned} \varpi (\xi )=\frac{2q_1\text {csch}^2(\sqrt{q_1}\xi )}{\pm \sqrt{-\zeta }-q_2\text {sech}(\sqrt{q_1}\xi )}, q_1>0, \zeta>0. \end{aligned}$$
(3.9)
$$\begin{aligned} \varpi (\xi )=\frac{-q_1\text {sech}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2 \pm 2\sqrt{q_1q_3}\tanh (\frac{\sqrt{q_1}}{2}\xi )}, q_1>0, \zeta>0. \end{aligned}$$
(3.10)
$$\begin{aligned} \varpi (\xi )=\frac{q_1\text {csch}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2 \pm 2\sqrt{q_1q_3}\coth (\frac{\sqrt{q_1}}{2}\xi )}, q_1>0, \zeta>0. \end{aligned}$$
(3.11)
$$\begin{aligned} \varpi (\xi )=-\frac{q_1}{q_2}(1\pm \tanh (\frac{\sqrt{q_1}}{2}\xi )), q_1>0, \zeta =0. \end{aligned}$$
(3.12)
$$\begin{aligned} \varpi (\xi )=-\frac{q_1}{q_2}(1\pm \coth (\frac{\sqrt{q_1}}{2}\xi )), q_1>0, \zeta =0. \end{aligned}$$
(3.13)

Trigonometric solutions

$$\begin{aligned} \varpi (\xi )=\frac{-q_1\sec ^2(\frac{\sqrt{-q_1}}{2}\xi )}{q_2-2\sqrt{-q_1q_3}(\tan (\frac{\sqrt{-q_1}}{2}\xi )}, q_1>0, \zeta>0. \end{aligned}$$
(3.14)
$$\begin{aligned} \varpi (\xi )=\frac{-q_1\csc ^2(\frac{\sqrt{-q_1}}{2}\xi )}{q_2-2\sqrt{-q_1q_3}(\cot (\frac{\sqrt{-q_1}}{2}\xi )}, q_1>0, \zeta>0. \end{aligned}$$
(3.15)
$$\begin{aligned} \varpi (\xi )=\frac{2q_1\sec ^2(\sqrt{-q_1}\xi )}{\pm \zeta -b_2\sec (\sqrt{-q_1}\xi )8}, q_1>0, \zeta>0. \end{aligned}$$
(3.16)
$$\begin{aligned} \varpi (\xi )=\frac{2q_1\csc ^2(\sqrt{-q_1}\xi )}{\pm \zeta -b_2\sec (\sqrt{-q_1}\xi )8}, q_1>0, \zeta>0. \end{aligned}$$
(3.17)

Exponential solutions

$$\begin{aligned} \varpi (\xi )=\frac{4q_1\exp ^{\pm \sqrt{q_1}\xi }}{(\exp ^{\pm \sqrt{q_1}\xi }-q_2)^2-4q_1q_3}, q_1>0. \end{aligned}$$
(3.18)
$$\begin{aligned} \varpi (\xi )=\frac{\pm 4q_1\exp ^{\pm \sqrt{q_1}\xi }}{1-4b_1b_3\exp ^{\pm 2 \sqrt{q_1}\xi }}, q_1>0, q_2=0. \end{aligned}$$
(3.19)

Rational solutions

$$\begin{aligned} \varpi (\xi )=\frac{\pm q_1q_2}{b_2^2\varkappa ^2-q_1q_3}, q_1>0. \end{aligned}$$
(3.20)
$$\begin{aligned} \varpi (\xi )=\pm \frac{1}{\sqrt{q_3}\xi }, q_1=0, q_2=0, \end{aligned}$$
(3.21)

where \(\zeta =q_1^2-4q_1q_3\).

Improved modified Sardar-sub equation method

$$\begin{aligned} O(M,M_{t},M_{x},M_{xx},\dots ). \end{aligned}$$
(3.22)

To continue the research, in the context of the applied wave transformation, the function \(M= M(x, t)\) denotes an unknown function. An overview of this wave transition is provided here:

$$\begin{aligned} M= M(\xi ), \end{aligned}$$
(3.23)

where \(\xi = x-rt\). The PDE is transformed into an ODE of integer order by inserting equation (3.23) into equation (3.22).

$$\begin{aligned} O(M',M'',M''',\dots )=0. \end{aligned}$$
(3.24)

In equation (3.24), the ODE was solved using the IMSSEM. The standard form of the approach is as follows:

$$\begin{aligned} M(\xi )=a_{0}+\sum _{j=1}^{P}a_{j}\phi ^j(\xi ), a_{K}\ne 0, \end{aligned}$$
(3.25)

where \(a_{j} (j = 0, 1, 2, 3,\dots , P)\). The homogeneous balancing technique can be used to obtain the value of P by maintaining the balance between the derivative term and the highest order nonlinear term in equation (3.24). Consequently \(\frac{d^{w}{u}}{d\xi ^w}\), maximum degree is categorized as follows:

$$\begin{aligned} F(\frac{d^w M}{d\xi ^w})=n+w. \\ F(N^f\frac{d^w M}{d\xi ^w})^s=fn+s(n+w). \end{aligned}$$

The Equation (3.25) considers the \(\phi (\xi )\) to be the solution to the following equation:

$$\begin{aligned} (\phi ')^2(\xi )=d_{2}\phi ^4(\xi )+d_{1}\phi ^2(\xi )+d_{0}, \end{aligned}$$
(3.26)

where the constants \(d_{n}, n = 0, 1, 2\) must be computed; further details on equation (3.26) are available in29. This set of solutions satisfied equation (3.26) using F as the integration constant:

Case 1:

Rational solutions for \(d_{0} = d_{1} = 0\) and \(d_{2}> 0\).

$$\begin{aligned} \phi _{1}(\xi )=\pm \frac{1}{\sqrt{d_{2}}(\xi +F)}. \end{aligned}$$
(3.27)

Case 2:

Exponential solutions for \(d_{0} = 0\) and \(d_{1}> 0\).

$$\begin{aligned} \phi _{2}(\xi )=\frac{4d_{1}e^{\pm {\sqrt{d_{1}}(\xi +F)}}}{e^{\pm 2\sqrt{d}_{1}(\xi +F)-4d_{1}d_{2}}}, \end{aligned}$$
(3.28)
$$\begin{aligned} \phi _{3}(\xi )=\frac{4d_{1}e^{\pm {\sqrt{d_{1}}(\xi +F)}}}{1-4d_{1}d_{2}e^{\pm {2\sqrt{d}_{1}}(\xi +F)}}. \end{aligned}$$
(3.29)

Case 3:

Trigonometric hyperbolic solutions:

(i) For \(d_{0} = 0, d_{1}> 0\) and \(d_{2} \ne 0\),

$$\begin{aligned} \phi _{4}(\xi )=\pm \sqrt{-\frac{d_{1}}{d_{2}}}\text {sech}(d_{1}(\xi +F)), \end{aligned}$$
(3.30)
$$\begin{aligned} \phi _{5}(\xi )=\pm \sqrt{\frac{d_{1}}{d_{2}}}\text {csch}(d_{1}(\xi +F)). \end{aligned}$$
(3.31)

(ii) For \(d_{0} =\frac{b^2_{1}}{4d_{2}}, d_{1} < 0\) and \(b_2{}> 0\),

$$\begin{aligned} \phi _{6}(\xi )= & \pm \sqrt{-\frac{d_{1}}{2d_{2}}}\tanh (\sqrt{-\frac{d_{1}}{2}}(\xi +F)), \end{aligned}$$
(3.32)
$$\begin{aligned} \phi _{7}(\xi )= & \pm \sqrt{-\frac{d_{1}}{2d_{2}}}\coth (\sqrt{-\frac{d_{1}}{2}}(\xi +F)), \end{aligned}$$
(3.33)
$$\begin{aligned} \phi _{8}(\xi )= & \pm \sqrt{-\frac{d_{1}}{2d_{2}}}(\tanh (\sqrt{-2d_{1}}(\xi +F))\pm i\text {sech}(\sqrt{-2d_{1}}(\xi +F)), \end{aligned}$$
(3.34)
$$\begin{aligned} \phi _{9}(\xi )= & \pm \sqrt{-\frac{d_{1}}{2d_{2}}}(\coth (\sqrt{-2d_{1}}(\xi +F))\pm \text {csch}(\sqrt{-2d_{1}}(\xi +F)), \end{aligned}$$
(3.35)
$$\begin{aligned} \phi _{10}(\xi )= & \pm \sqrt{-\frac{d_{1}}{8d_{2}}}(\tanh (\sqrt{-\frac{d_{1}}{8}}(\xi +F)+\coth (\sqrt{-\frac{d_{1}}{8}}(\xi +F)). \end{aligned}$$
(3.36)

Case 4:

Trigonometric functions.

  1. (i)

    For \(d_{0} = 0, d_{1} < 0\) and \(d_{2}\ne 0\),

    $$\begin{aligned} \phi _{11}(\xi )=\pm \sqrt{-\frac{d_{1}}{d_{2}}}\sec (\sqrt{-d_{1}}(\xi +F)), \end{aligned}$$
    (3.37)
    $$\begin{aligned} \phi _{12}(\xi )=\pm \sqrt{-\frac{d_{1}}{d_{2}}}\csc (\sqrt{-d_{1}}(\xi +F)). \end{aligned}$$
    (3.38)
  2. (ii)

    For \(d_{0}=\frac{b^2_{1}}{4d_{2}}, d_{1}> 0\) and \(d_{2}> 0,\)

    $$\begin{aligned} \phi _{13}(\xi )= & \pm \sqrt{\frac{d_{1}}{2d_{2}}}\tan (b{\frac{d_{1}}{2}}(\xi +F)), \end{aligned}$$
    (3.39)
    $$\begin{aligned} \phi _{14}(\xi )= & \pm \sqrt{\frac{d_{1}}{2d_{2}}}\cot (\sqrt{\frac{d_{1}}{2}}(\xi +F)), \end{aligned}$$
    (3.40)
    $$\begin{aligned} \phi _{15}(\xi )= & \pm \sqrt{\frac{d_{1}}{2d_{2}}}(\tan (\sqrt{2d_{1}}(\xi +F))\pm \sec (\sqrt{2d_{1}}(\xi +F)), \end{aligned}$$
    (3.41)
    $$\begin{aligned} \phi _{16}(\xi )= & \pm \sqrt{\frac{d_{1}}{2d_{2}}}(\cot (\sqrt{2d_{1}}(\xi +F))\pm \csc (\sqrt{2d_{1}}(\xi +F)), \end{aligned}$$
    (3.42)
    $$\begin{aligned} \phi _{17}(\xi )= & \pm \sqrt{\frac{d_{1}}{8d_{2}}}(\tan (\sqrt{\frac{d_{1}}{8}}(\xi +F))- \cot (\sqrt{\frac{d_{1}}{8}}(\xi +F)). \end{aligned}$$
    (3.43)

By putting equations (3.23) and equation (3.24) into equation (3.22) and after setting all of the coefficients for each power of \(\phi (\xi )\) to zero, Computational software Mathematica 13.2 was used to solve the resulting system of algebraic equations. Ultimately, added these constants to equation (3.23) and derived distinct solutions as indicated in equations (3.27)-(3.43). Consequently, various exact solutions for NLPDEs were obtained.

Comparative study of IMSSEM and GAEM

The generalized auxiliary equation method provides a simple and efficient method of designing exact analytical solutions to nonlinear evolution equations. The key advantage of generalized auxiliary equation method is its simplicity and reduced computational requirement. With the introduction of an auxiliary differential equation whose general solutions are known, GAEM has the ability to readily deliver closed-form solutions of solitons as well as periodic wave patterns. The technique is subject to very little symbolic manipulation, so it can be used effectively for quick analytical exploration or preliminary testing of nonlinear models. Yet its greatest limitation is that it won’t always accurately model complex or high-order interactions and becomes unwieldy with large numbers of parameters.

Contrary to these, the IMSSEM increases the flexibility and range of the traditional analytical methods by using adjustable parameters and enhanced balancing conditions. This makes it possible for IMSSEM to obtain a more diverse class of nonlinear wave solutions such as bright, dark, kink, anti-kink, periodic, M-type, and W-type solitons. The technique can deal well with higher-order and mixed nonlinearities, which are typically found in complicated physical systems like plasma waves and optical fibers. However, IMSSEM is more algebraically and computationally intensive and needs symbolic software for dealing with long expressions and parameter tuning. Even with its more substantial computational burden, IMSSEM offers greater accuracy and flexibility and is especially important for studying intricate soliton forms, stability dynamics, and parameter sensitivity in nonlinear dynamical systems. Its limitation is algebraic complexity–derivations can be excessively long, and the procedure may need symbolic computation methods for tractability.

Applications of methods

Applications of generalized auxiliary equation method

Assume that the solutions to equation (1.1) in the traveling wave form are

$$\begin{aligned} w(x,t)= & \phi (\xi )e^{iQ(x,t)}, \nonumber \\ \phi (\xi )= & a_0+\sum _{i=1}^J a_1 \varpi ^i(\xi ) \nonumber \\ ,\xi= & sx+pt, \nonumber \\ Q(x,t)= & \alpha x+\gamma t+\theta , \end{aligned}$$
(4.1)
$$\begin{aligned} \varpi '(\xi )= & \sqrt{q_1\varpi (\xi )^2+q_2\varpi (\xi )^3+q_3\varpi (\xi )^4}. \end{aligned}$$
(4.2)

Apply the homogeneous balancing principle in equation (2.2) and assume the solution of equation(2.2) as

$$\begin{aligned} \phi (\xi )=a_0+a_1\varpi (\xi ) \end{aligned}$$
(4.3)

By inserting equation (4.3) into equation (2.2), the system of equations is produced. The following sets of solutions are found by solving the system of equations.

Set-1

$$\begin{aligned} a_0=0, a_1=\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}, \gamma =\alpha ^3-3s^2\alpha q_1+3 a_0^2 \beta _1 - 3\alpha a_0^2 \beta _2. \end{aligned}$$
(4.4)

The following solutions are obtained by combining equation (4.4) with equations ((3.6)–(3.21) and (4.3).

Trigonometric hyperbolic solutions

$$\begin{aligned} w_1(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{-q_1q_2\text {sech}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2^2-q_1q_3(1\pm \tanh (\frac{\sqrt{q_1}}{2}\xi ))}\bigg )e^{iQ(x,t)}, b_1>0. \end{aligned}$$
(4.5)
$$\begin{aligned} w_2(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{q_1q_2 \text {csch}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2^2-q_1q_3(1\pm \coth (\frac{\sqrt{q_1}}{2}\xi ))}\bigg )e^{iQ(x,t)},b_1>0. \end{aligned}$$
(4.6)
$$\begin{aligned} w_3(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{2q_1\text {sech}^2(\sqrt{q_1}\xi )}{\pm \sqrt{\zeta }-q_2\text {sech}(\sqrt{q_1}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, \zeta>0. \nonumber \\ w_4(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{2q_1\text {sech}^2(\sqrt{q_1}\xi )}{\pm \sqrt{-\zeta }-q_2\text {sech}(\sqrt{q_1}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, \zeta>0. \nonumber \\ w_5(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{-q_1\text {sech}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2 \pm 2\sqrt{q_1q_3}\tanh (\frac{\sqrt{q_1}}{2}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, q_3>0. \nonumber \\ w_6(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{q_1\text {csch}^2(\frac{\sqrt{q_1}}{2}\xi )}{q_2 \pm 2\sqrt{q_1q_3}\coth (\frac{\sqrt{q_1}}{2}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, q_3>0. \end{aligned}$$
(4.7)
$$\begin{aligned} w_7(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (-\frac{q_1}{q_2} (1\pm \tanh (\frac{\sqrt{q_1}}{2}\xi ))\bigg )e^{iQ(x,t)}, q_1>0, \zeta =0. \nonumber \\ w_8(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (-\frac{q_1}{q_2} (1\pm \coth (\frac{\sqrt{q_1}}{2}\xi ))\bigg )e^{iQ(x,t)}, q_1>0, \zeta =0. \end{aligned}$$
(4.8)

Trigonometric solutions

$$\begin{aligned} w_9(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{-q_1\sec ^2 (\frac{\sqrt{-q_1}}{2}\xi )}{q_2\pm 2\sqrt{-q_1q_3}(\tan (\frac{\sqrt{-q_1}}{2}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, q_3>0. \\ w_{10}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{-q_1\csc ^2 (\frac{\sqrt{-q_1}}{2}\xi )}{q_2\pm 2\sqrt{-q_1q_3}(\cot (\frac{\sqrt{-q_1}}{2}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, q_3>0. \\ w_{11}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg ) \bigg (\frac{2q_1\sec ^2(\sqrt{-q_1}\xi )}{\pm \zeta -b_2\sec (\sqrt{-q_1}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, \zeta>0. \\ w_{12}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{2q_1\csc ^2(\sqrt{-q_1}\xi )}{\pm \zeta -b_2\sec (\sqrt{-q_1}\xi )}\bigg )e^{iQ(x,t)}, q_1>0, \zeta>0. \end{aligned}$$

Exponential solutions

$$\begin{aligned} w_{13}(\xi )=\bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{4q_1e^{\pm \sqrt{q_1}\xi }}{(e^{\pm \sqrt{q_1}\xi }-q_2)^2-4q_1q_3}\bigg )e^{iQ(x,t)}, q_1>0. \nonumber \\ w_{14}(\xi )=\bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{\pm 4q_1e^{\pm \sqrt{q_1}\xi } }{1-4q_1q_3e^{\pm 2 \sqrt{q_1}\xi }}\bigg )e^{iQ(x,t)}, q_1>0, q_2=0. \end{aligned}$$
(4.9)

Rational solutions

$$\begin{aligned} w_{15}(\xi )=\bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{\pm q_1q_2}{q_2^2\varkappa ^2-q_1q_3}\bigg )e^{iQ(x,t)}, q_1>0. \nonumber \\ w_{16}(\xi )=\bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{q_3}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \frac{1}{\sqrt{q_3}\xi }\bigg ) e^{iQ(x,t)}, q_1=0, q_2=0. \end{aligned}$$
(4.10)

Applications of IMSSEM

Assume that the solutions to equation (1.1) in the traveling wave form are

$$\begin{aligned} u(x,t)=\phi (\xi )e^{iQ(x,t)}, \phi (\xi )=a_0+\sum _{i=1}^J a_1 \phi ^i(\xi )\\ ,\xi =sx+pt, Q(x,t)=\alpha x+\gamma t+\theta , \end{aligned}$$

Apply the homogeneous balancing principle in equation (2.2) and take the answer to equation (2.2) as

$$\begin{aligned} \phi (\xi )=a_0+a_1\varpi (\xi ) \end{aligned}$$
(4.11)

The system of equations is obtained by putting equation (4.12) into equation (2.2). Solving the system of equations, then the following set of solutions are obtained.

Set-1

$$\begin{aligned} a_0=0, a_1=\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}, \gamma =\alpha ^3-3s^2\alpha d_1+3 a_0^2 \beta _1 - 3\alpha a_0^2 \beta _2. \end{aligned}$$
(4.12)

The following solutions are obtained by combining equation (4.12) with equations ((3.27)–(3.43).

Case 1:

For \(d_{0} = d_{1} = 0\) and \(d_{2}> 0\). The rational solutions will have the following structure:

$$\begin{aligned} u_{1}(\xi )=\bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \frac{1}{\sqrt{d_{2}}(\xi +F)}\bigg )e^{iQ(x,t)}. \end{aligned}$$

Case 2:

For \(d_{0} = 0\) and \(d_{1}> 0\).The exponential solutions will have the following form:

$$\begin{aligned} u_{2}(\xi )=\bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{4d_{1}e^{\pm {\sqrt{d_{1}}(\xi +F)}}}{e^{\pm 2\sqrt{d}_{1}(\xi +F)-4d_{1}d_{2}}}\bigg )e^{iQ(x,t)},\\ u_{3}(\xi )=\bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\frac{4d_{1}e^{\pm {\sqrt{d_{1}}(\xi +F)}}}{1-4d_{1}d_{2}e^{\pm {2\sqrt{d}_{1}}(\xi +F)}}\bigg )e^{iQ(x,t)}. \end{aligned}$$

Case 3:

The following are the trigonometric hyperbolic solutions:

  1. (i)

    For \(d_{0} = 0, d_{1}> 0\) and \(d_{2} \ne 0\),

    $$\begin{aligned} u_{4}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{d_{2}}} \text {sech}(d_{1}(\xi +F))\bigg )e^{iQ(x,t)}, \nonumber \\ u_{5}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{\frac{d_{1}}{d_{2}}} \text {csch}(d_{1}(\xi +F))\bigg )e^{iQ(x,t)}. \end{aligned}$$
    (4.13)
  2. (ii)

    For \(d_{0} =\frac{b^2_{1}}{4d_{2}}, d_{1} < 0\) and \(b_2{}> 0\),

    $$\begin{aligned} u_{6}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{2d_{2}}} \tanh (\sqrt{-\frac{d_{1}}{2}}(\xi +F))\bigg )e^{iQ(x,t)}, \end{aligned}$$
    (4.14)
    $$\begin{aligned} u_{7}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{2d_{2}}} \coth (\sqrt{-\frac{d_{1}}{2}}(\xi +F))\bigg )e^{iQ(x,t)}, \nonumber \\ u_{8}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{2d_{2}}} (\tanh (\sqrt{-2d_{1}}(\xi +F))\pm i\text {sech}(\sqrt{-2d_{1}}(\xi +F))\bigg )e^{iQ(x,t)}, \nonumber \\ u_{9}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{2d_{2}}} (\coth (\sqrt{-2d_{1}}(\xi +F))\pm \text {csch}(\sqrt{-2d_{1}}(\xi +F))\bigg )e^{iQ(x,t)}, \end{aligned}$$
    (4.15)
    $$\begin{aligned} u_{10}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{8d_{2}}} (\tanh (\sqrt{-\frac{d_{1}}{8}}(\xi +F)+\coth (\sqrt{-\frac{d_{1}}{8}}(\xi +F))\bigg )e^{iQ(x,t)}. \end{aligned}$$
    (4.16)

Case 4:

Below are the solutions that have the shape of trigonometric functions:

  1. (i)

    For \(d_{0} = 0, d_{1} < 0\) and \(d_{2}\ne 0\),

    $$\begin{aligned} u_{11}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{d_{2}}} \sec (\sqrt{-d_{1}}(\xi +F))\bigg )e^{iQ(x,t)}, \\ u_{12}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{-\frac{d_{1}}{d_{2}}} \csc (\sqrt{-d_{1}}(\xi +F))\bigg )e^{iQ(x,t)}. \end{aligned}$$
  2. (ii)

    For \(d_{0}=\frac{b^2_{1}}{4d_{2}}, d_{1}> 0\) and \(d_{2}> 0,\)

    $$\begin{aligned} u_{13}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{\frac{d_{1}}{2d_{2}}} \tan (b{\frac{d_{1}}{2}}(\xi +F))\bigg )e^{iQ(x,t)}, \\ u_{14}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{\frac{d_{1}}{2d_{2}}} \cot (\sqrt{\frac{d_{1}}{2}}(\xi +F))\bigg )e^{iQ(x,t)}, \\ u_{15}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{\frac{d_{1}}{2d_{2}}} (\tan (\sqrt{2d_{1}}(\xi +F))\pm \sec (\sqrt{2d_{1}}(\xi +F))\bigg )e^{iQ(x,t)}, \\ u_{16}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{\frac{d_{1}}{2d_{2}}} (\cot (\sqrt{2d_{1}}(\xi +F))\pm \csc (\sqrt{2d_{1}}(\xi +F))\bigg )e^{iQ(x,t)}, \\ u_{17}(\xi )= & \bigg (\frac{k\sqrt{6}\sqrt{\delta }\sqrt{d_2}}{\sqrt{\beta _1-\delta \beta _2}}\bigg )\bigg (\pm \sqrt{\frac{d_{1}}{8d_{2}}} (\tan (\sqrt{\frac{d_{1}}{8}}(\xi +F))- \cot (\sqrt{\frac{d_{1}}{8}}(\xi +F))\bigg )e^{iQ(x,t)}. \end{aligned}$$

Visual evaluations and discussion

In this study, the generalized third-order NLSE was solved using the generalized auxiliary equation method and IMSSEM. A variety of solitary waves, including periodic, dark soliton, bright soliton, kink soliton, anti-kink soliton, bell and anti-bell solitons, can be produced using the aforementioned procedures. Graphical plots of some results have been employed here to emphasize their dynamic nature with parameters appropriately chosen.

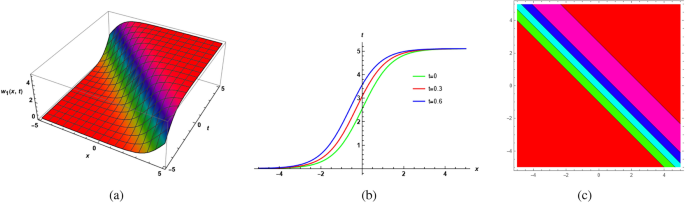

In Fig. 1, the anti-kink soliton solution is displayed when \(s=1, p=1, \alpha =-3, q_1=2, q_2=2, q_3=1, \beta _1=2, \beta _2=3,\) and \(\theta =1.\) Anti-kink soliton solutions are waves that go from a nonzero value to zero, contrary to kink solitons.

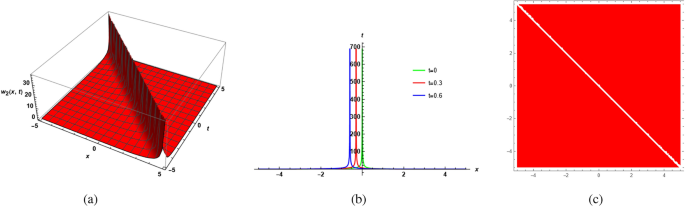

In Fig. 2, the singular soliton solution is displayed when \(s=1, p=1, \alpha =2, q_1=2, q_2=1, q_3=1, \beta _1=1, \beta _2=3,\) and \(\theta =2.\) Singular solitons lead to solutions with a singularity in their shape, like a discontinuity or an infinite peak.

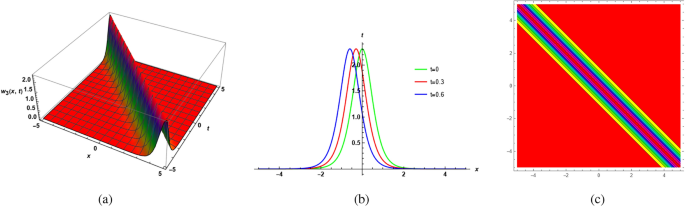

In Fig. 3, the bell type soliton solution is displayed when \(s=-1, p=-1, \alpha =-2, q_1=2, q_2=1, q_3=-1, \beta _1=1, \beta _2=4,\) and \(\theta =2.\) Waves with a peak localized in the nonlinear medium which moves called bell type solitons.

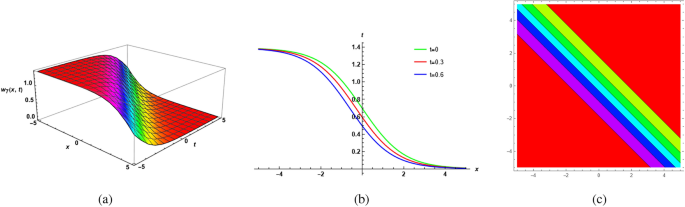

In Fig. 4, the kink soliton solution is displayed when \(s=-1, p=-1, \alpha =4, q_1=1, q_2=3, q_3=2, \beta _1=1, \beta _2=3,\) and \(\theta =1.\) A wave which smoothly and smoothly passes from one such state to another without oscillation. known as a kink-type soliton.

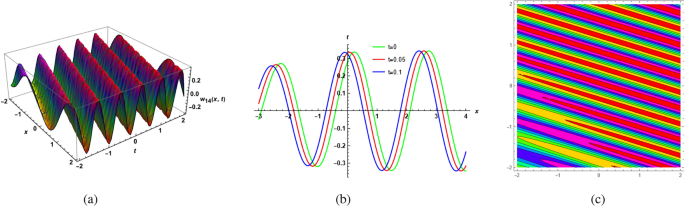

In Fig. 5, the periodic soliton solution is displayed when \(s=1, p=1, \alpha =2.5, q_1=2, q_2=0, q_3=-9, \beta _1=1, \beta _2=6,\) and \(\theta =1.\) They are also solutions designated as cnoidal waves, i.e., periodic solitons. pattern in either space or time. Periodic solitons expand while bright solitons are spatially localized.

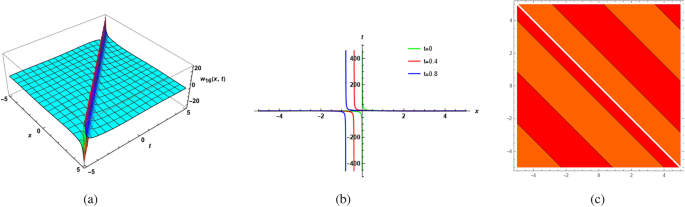

In Fig. 6, the singular soliton solution is displayed when \(s=1, p=1, \alpha =1, q_1=0, q_2=0, q_3=1, \beta _1=1, \beta _2=3,\) and \(\theta =1.\) Solutions with a singularity in their shape, i.e. a discontinuity or an infinite peak.

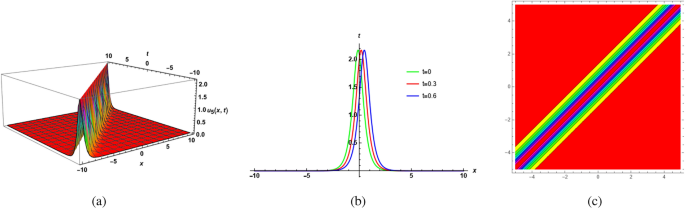

In Fig. 7, the bell type soliton solution is displayed when \(s=1, p=-1, \alpha =-0.3, d_1=5, d_2=-2, \beta _1=-2, \beta _2=0.3, F=0.2\) and \(\theta =1\).

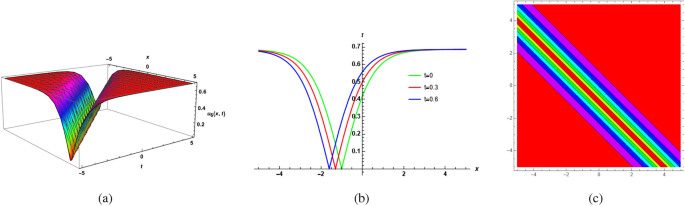

In Fig. 8, a dark soliton solution is displayed when \(s=1, p=1, \alpha =0.3, d_1=-1, d_2=2, \beta _1=2, \beta _2=0.3, F=1\) and \(\theta =1\) and \(\theta =1\).

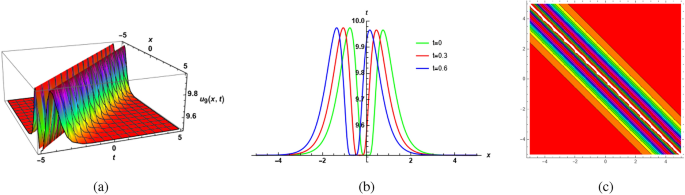

In Fig. 9, the M-type soliton solution is displayed when \(s=1, p=1, \alpha =1, d_1=-1, d_2=8, \beta _1=0.2, \beta _2=0.1\), F=0.01 and \(\theta =1\).

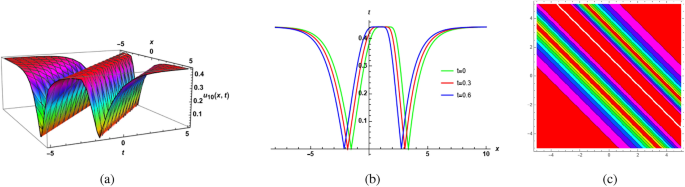

In Fig. 10, the W-type soliton solution is displayed \(s=1, p=1, \alpha =0.3, d_1=-1, d_2=0.2, F=0.1, \beta _1=2, \beta _2=-1\) and \(\theta =1\).

Fig. 1
Fig. 1
Full size image

Equation (4.5) yields a solution for \(w_1(x,t)\), which is an anti-kink soliton solution.

Fig. 2
Fig. 2
Full size image

Equation (4.6) yields a solution for \(w_2(x,t)\), which is a singular type soliton solution.

Fig. 3
Fig. 3
Full size image

Equation (4.7) provides a solution for \(w_3(x,t)\), which is a bell type soliton solution.

Fig. 4
Fig. 4
Full size image

Equation (4.8) gives a solution for \(w_7(x,t)\), which is a kink soliton solution.

Fig. 5
Fig. 5
Full size image

Equation (4.9) yields a solution for \(w_{14}(x,t)\), which is a periodic soliton solution.

Fig. 6
Fig. 6
Full size image

Equation (4.10) yields a solution for \(w_{16}(x,t)\), which is a singular soliton solution.

Fig. 7
Fig. 7
Full size image

Equation (4.13) yields a solution for \(u_{5}(x,t)\), which is a bright or bell soliton solution.

Fig. 8
Fig. 8
Full size image

Equation (4.14) yields a 3D animation of \(u_{6}(x,t)\), which is a dark soliton solution.

Fig. 9
Fig. 9
Full size image

Equation (4.15) yields a 3D animation of \(u_{9}(x,t)\), which is a M-type soliton solution.

Fig. 10
Fig. 10
Full size image

Equation (4.16) gives a solution for \(u_{10}(x,t)\), which is a W-shape soliton solution.

Physical interpretation

Many branches of science rely on the nonlinear Schrödinger equations, which a class of nonlinear evolution equations. There are many intricate changes in nature that this equation can effectively depict.

Kink Soliton

An anti-kink, which is merely a phase shift in the direction of a kink, is shown in Fig. 1. More precisely, an anti-kink moves from a higher value to a lower value, whereas a kink moves from a lower value to a higher value. Kinks and anti-kinks both cause localized disturbances and their energy densities are significantly different from those of the surrounding environment. In a nonlinear system, the anti-kink is a localized structure that functions in the opposite manner from the kink, just like its counterpart. The dynamics of the system may be impacted by this energy density differential because anti-kinks are a system reversal or phase shift. These localized patterns are responsible for the complex behaviors observed in a variety of physical environments and are crucial in capturing the nonlinear coupling and energy flow in such systems. In plasma physics, kink solitons are used to explain shock-like or transition fronts that result from energy transfer processes. Their stability and resistance to perturbations make them of utility in modeling information transmission and energy transport in dispersive and nonlinear media.

Singular Soliton

In Figs. 2 and 6, Singular soliton solutions are a specific kind of soliton solution to nonlinear partial differential equations that feature singularities, meaning that they have extreme behavior (such infinite gradients or discontinuities) or points where the solution is indeterminate. Singularities can entail phenomena like blowup, where some properties (such amplitude) increase without bounds within a finite time and the solution collapses, even though normal solitons are stable, localized waves that maintain their shape over time.

Bell-shaped Soliton

Since the bell-shaped solitons in Fig. 3 have few stable wave patterns, they are widely used in many scientific domains. These solitary wave transmissions, known as solitons, can move across long distances without changing their shape. Bell-shaped solitons possess a localized peak in the amplitude of the wave, which is an intensity or energy concentration at a single point. As seen in Fig. 4, a kink soliton represents a localized, stable transition between two different states of a system and provides a solution to certain nonlinear field equations. In fields like condensed matter physics, field theory, and nonlinear dynamics, these solutions are very significant.

Periodic Soliton

Figure 5 depicts periodic solitons, a kind of wave pattern that recurs repeatedly in space and time. Due to the nonlinear nature of the system, the waves maintain their shape and coherence over long distances. They model shallow water waves, coastal regions and tsunamis using fluid dynamics. In the area of nonlinear optics, they describe the constant streams of light in lasers and optical fibers.

Bright Soliton

Figure 7 depicts a bell or bright soliton, A bright soliton, or a bell soliton due to its bell-shaped profile, is a soliton solution that commonly occurs in nonlinear wave equations. Bright solitons possess a localized peak in the amplitude of the wave, which is an intensity or energy concentration at a single point. Contrary to dark solitons, which are shown by holes or troughs in the wave profile, bright solitons are positive perturbations, where the intensity of the wave is highest at the center and drops outward in a smooth fashion.

Dark Soliton

A dark soliton, as shown in Figure 8, is a confined perturbation in a wave medium that maintains a continuous phase structure while having a small amplitude at its center. Wave propagation in specific nonlinear media is described by these solitons, which are solutions to NLPDEs, such as the NLSE.

M-type Soliton

Figure 9 depicts an M-type soliton, has a wave profile shaped like the letter M usually consisting of two peaks with a dip in between. M-shape solitons are more complex than normal solitons, which are single-peaked and maintain their shape as they move, with an intermediate dip between two separate maxima. This shape is an indication of energy splitting inside the pulse, with the result being the presence of two intensity peaks. In optical communications, M-type solitons are crucial for the understanding of pulse shaping, two-channel transmission, and nonlinear cross-coupling effects. In plasma physics, M-type solitons signify the nonlinear coupling of different wave modes, which explains wave propagation of multi-structure and energy sharing effects.

W-type Soliton

Frequent W-shaped soliton patterns occur in both the spatial and temporal domains as shown in Fig. 10. A distinctively shaped W- soliton is characterized by two symmetrical valleys flanking a central spike. A discreet, nonlinear wave that’s dependent on only a specific area. These solitons enable the representation of rapid and precise data transfers over long distances. For challenges encountered in optical fiber systems, such solitons are highly practical. They may vary between static and oscillatory behaviors, with a waveform similar to that of a rogue wave yet more deterministic and reliable. These solutions explain periodic energy localization and are capable of simulating modulation instability or repeated pulse creation in nonlinear media. In optical fiber, W-type solitons can be applied to the investigation of pulse compression and stability in high-dispersion regimes, and in plasma physics, they map to nonlinear oscillations representing energy confinement and periodic wave modulation. The values of parameters \(\beta _1\), \(\beta _2\), and \(\beta _3\) third-order dispersion, self-steepening, and nonlinear dispersion were set in physically realistic ranges so that the system would be stable and be able to capture important dynamics of the generalized third-order NLSE. Sensitivity analysis reveals that \(\beta _1\) primarily produces phase shifts, \(\beta _1\) produces pulse asymmetry, and \(\beta _1\) generates multi-hump and oscillatory solitons. Simultaneous increases in \(\beta _2\) and \(\beta _3\) induce bifurcations and potential instabilities, demonstrating how higher-order effects control soliton behavior.

Dynamical analysis

This section investigates the system’s dynamic complexity through bifurcation analysis, chaotic dynamics and sensitivity analysis. Bifurcation analysis is applied to locate the parameter values responsible for significant changes in system behavior.

Bifurcation analysis

A graphic representation of the bifurcation and phase diagrams of the planar dynamical system is presented in this section. This approach of dynamical systems can be used to qualitatively assess nonlinear partial differential models. The orbits of the system can take the form of simple closed curves, points, or other isomorphic structures. Given a Hamiltonian function and the assumption that \(\frac{d\phi }{d\xi }=P\), in its planar dynamic version can be expressed as follows:

$$\begin{aligned} \frac{d\phi }{d\xi }=P, \frac{dP}{d\xi }=l_1\phi +l_2\phi ^3. \end{aligned}$$
(7.1)
$$\begin{aligned} H(\phi ,P)=\frac{P^2}{2}-l_1\frac{\phi ^2}{2}-l_2\frac{\phi ^4}{4}=g, \end{aligned}$$
(7.2)

whereas \(l_1=-\frac{\gamma -\alpha ^3}{3\alpha s^2}, l_2=-\frac{\beta _2\alpha -\beta _1}{3\alpha s^2}\). The kinetic energy is denoted by \(\frac{P^2}{2}\), the potential energy by \(-l_1\frac{\phi ^2}{2}-l_2\frac{\phi ^4}{4}\), and the total energy by g. By figuring out the structure \(P=0, l_1\phi +l_2\phi ^3=0\), the points of equilibrium are \((0,0), (\sqrt{-\frac{l_1}{l_2}}), (-\sqrt{-\frac{l_1}{l_2}})\). The following is an expression for the Jacobian matrix for equation (7.1): \(R(\phi ,P)=\begin{vmatrix} 0&0 \\ l_1+3l_2\phi ^2&0 \end{vmatrix}=-l_1-3l_2\phi ^2\)

A center point if \(R(\phi ,P)>0\), a saddle point if \(R(\phi ,P)<0\), and a cuspidal point if \(R(\phi ,P)=0\) are the three possible appearances of the equilibrium point \((\phi , P)\). The following possible outcomes can arise from various parameter configurations:

Case 1: \(l_1<0, l_2>0\)

Using a selection of parameter settings such as \(\gamma =28,\alpha =1, s=1, \beta _1=2, \beta _2=-1.\) Three points of equilibrium can be found (0,0), (−3,0), (3,0). The saddle points are \((-3,0)\) and (3, 0), whereas the origin (0, 0) acts as the center.

Case 2: \(l_1>0, l_2<0\)

Using a selection of parameter settings such as \(\gamma =13,\alpha =-1, s=1, \beta _1=4, \beta _2=-1.\) Three points of equilibrium can be found (0,0), (−2,0), (2,0). The center points are \((-2,0)\) and (2, 0), whereas the origin (0, 0) acts as the saddle.

Case 3: \(l_1<0, l_2<0\)

Using a selection of parameter settings such as \(\gamma =7,\alpha =1, s=1, \beta _1=6, \beta _2=12.\) The point of equilibrium is (0,0). It can be seen clearly in the diagram that the origin (0,0) functions as the system’s central point.

Case 4: \(l_1>0, l_2>0\)

Using a selection of parameter settings such as \(\gamma =11,\alpha =-1, s=1, \beta _1=-1, \beta _2=-5.\) The point of equilibrium is (0,0). It can be seen clearly in the diagram that the origin (0,0) functions as the system’s saddle point. The dynamical system’s phase portraits of these cases 1, 2, 3 and 4 are given in Figs. 11, 12, 13 and 14, respectively.

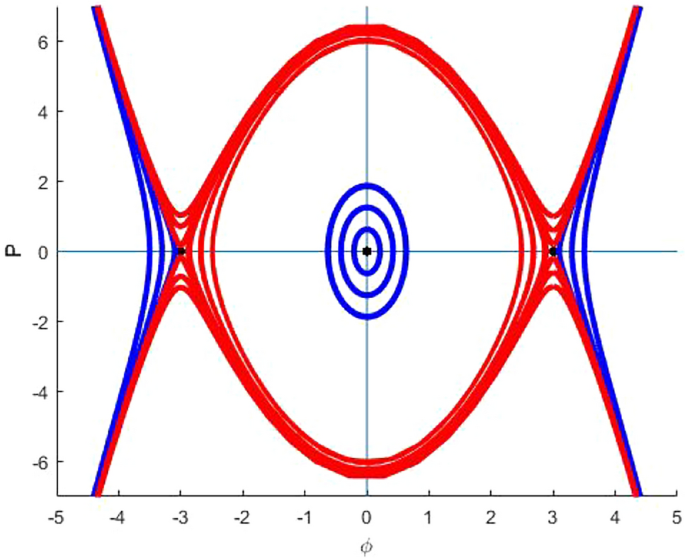

Fig. 11
Fig. 11
Full size image

The dynamical system’s phase portraits when \(l_1<0, l_2>0\).

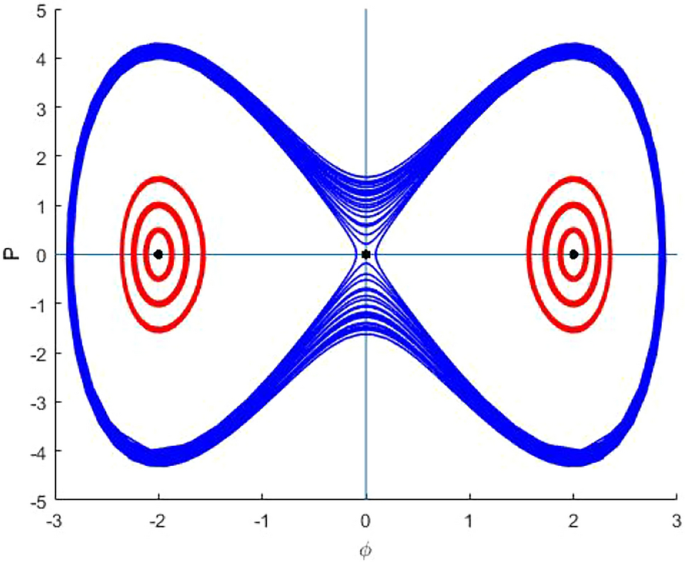

Fig. 12
Fig. 12
Full size image

The dynamical system’s phase portraits when \(l_1>0, l_2<0\).

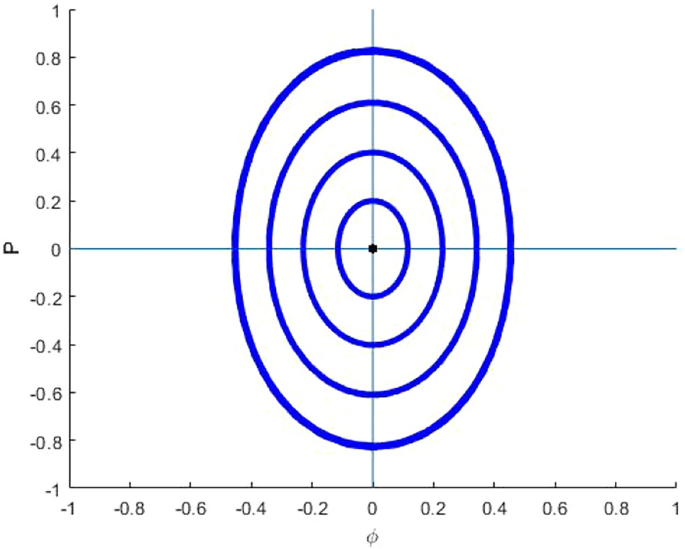

Fig. 13
Fig. 13
Full size image

The dynamical system’s phase portraits when \(l_1<0, l_2<0\).

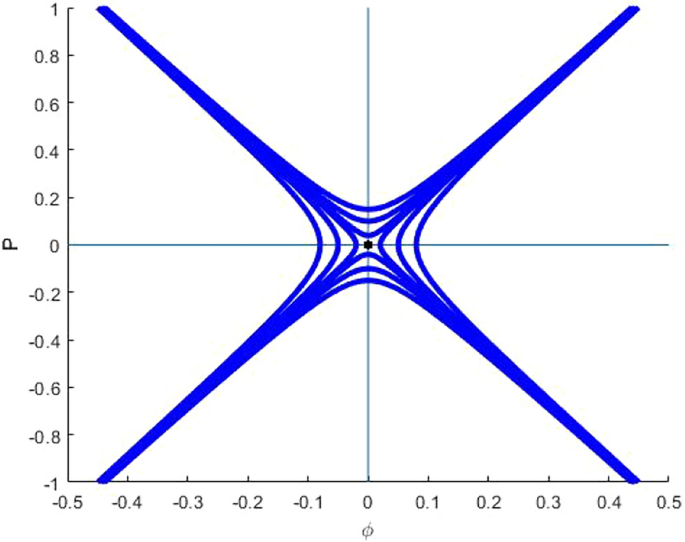

Fig. 14
Fig. 14
Full size image

The dynamical system’s phase portraits when \(l_1>0, l_2>0\).

Chaotic behavior

Here we explore how perturbations influence the complexity of the dynamical system. Different representations are examined using 3D, 2D and time series phase planes are given in Figs. 15, 16 and 17. In order to gain insight into how this system behaves when elements are perturbed, we’ll start by taking a closer look at the phase portrait picture.

$$\begin{aligned} \frac{d\phi }{d\xi }=P, \frac{dP}{d\xi }=l_1\phi +l_2\phi ^3+B \cos (\epsilon t). \end{aligned}$$
(7.3)

Changes to the amplitude B and frequency \(\epsilon\) of the disturbance in equation (7.3) are explored to understand what effect it’s on the corresponding dynamical system. A fixed set of parameters allows us to investigate a range of conduct using both chaotic and quasi-periodic behaviors over different strengths and frequencies.

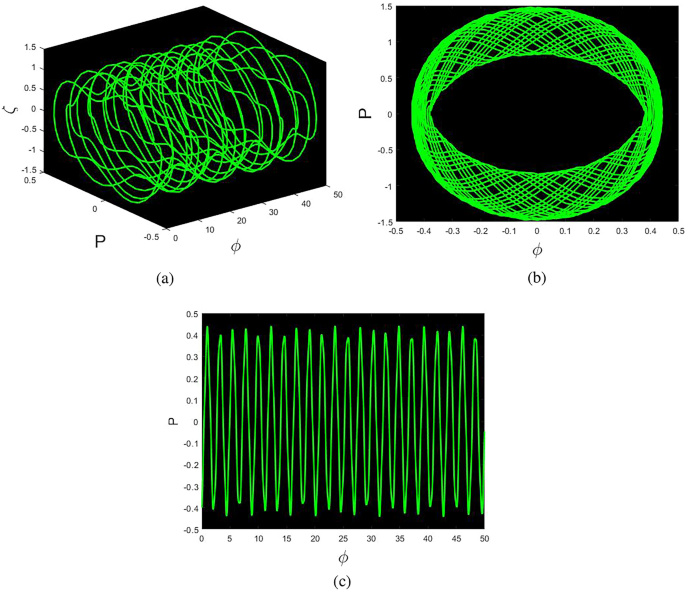

Fig. 15
Fig. 15
Full size image

Chaotic behavior of the equation (7.3) for \(\gamma =13,\alpha =-1, s=1, \beta _1=4, \beta _2=-1, B=3, \epsilon =10.\).

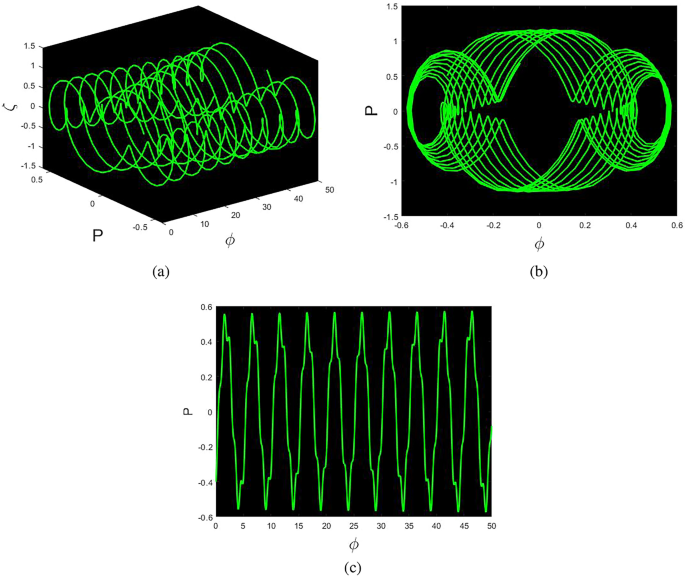

Fig. 16
Fig. 16
Full size image

Chaotic behavior of the equation (7.3) for \(\gamma =13,\alpha =-1, s=1, \beta _1=4, \beta _2=-1, B=3, \epsilon =2\pi .\).

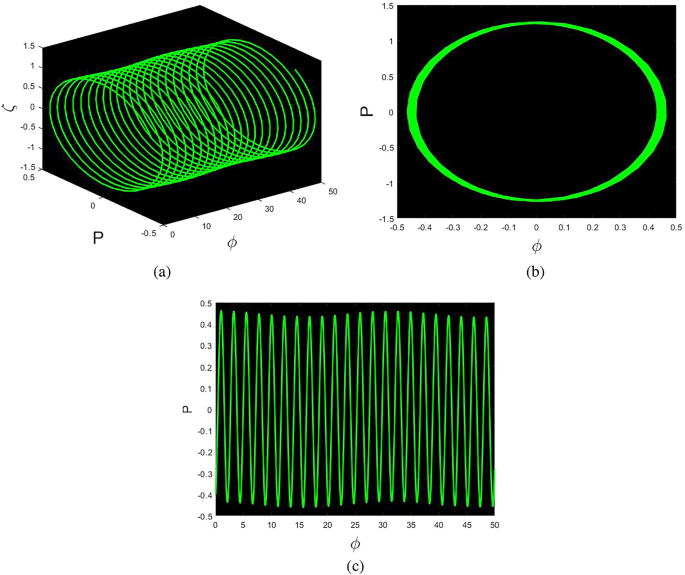

Fig. 17
Fig. 17
Full size image

Chaotic behavior of the equation (7.3) for \(\gamma =13,\alpha =-1, s=1, \beta _1=4, \beta _2=-1, B=0.1, \epsilon =0.2.\).

Sensitivity analysis

Sensitivity analysis explores the ways in which changing small values of critical system parameters influences the system’s response. Sensitivity analysis helps in decision-making and optimization by identifying the parameters that have the most effects on the system’s results. The sensitivity analysis is important because it confirms that the obtained soliton solutions are robust against slight changes in the parameters. It demonstrates how the solitons maintain their stability in the face of perturbations, proving their physical significance and usefulness in systems like plasma wave propagation and optical fiber communications.. This part intends to study the effect of initial values on the disrupted structure equation (7.3) at different frequencies and intensities while maintaining the parameters \(\gamma =28,\alpha =1, s=1, \beta _1=2\) and \(\beta _2=-1.\) Its graphical representation is given in Fig. 18.

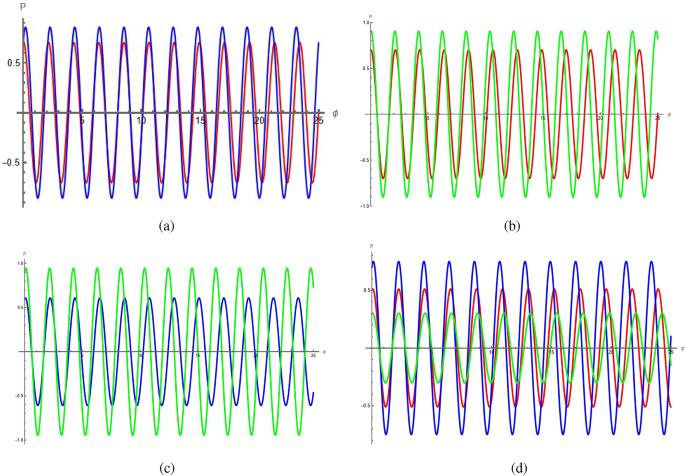

Fig. 18
Fig. 18
Full size image

Sensitivity analysis of the equation (7.3) for \(\gamma =13,\alpha =-1, s=1, \beta _1=4, \beta _2=-1.\).

Novelty and comparison

This section presents a brief comparison of our obtained exact soliton solutions in the form of kink, anti-kink, bell type, anti-bell type and periodic-solitons. kink and multi-soliton solutions, as well as other kinds of solitonic structures, in relation to the researchers’ work30,31 and brings the following to a close:

  • Lu, D. et.al. applied the two analytical methods to find accurate solutions to the equation30. Seadawy et.al discussed the weakly nonlinear wave propagation of the generalized third-order NLSE and its applications31.

  • Compared to the previously published studies30,31, we were able to find a variety of soliton solutions in a more generalized manner by employing the generalized auxiliary equation method and IMSSEM. The solutions have the shape of exponential, trigonometric and hyperbolic functions.

  • We used appropriate values for \(s, p, \alpha , q_1, q_2, q_, \beta _1, \beta _2\) and \(\theta\) to illustrate the dynamics of solitary wave profiles of specific solitary solutions in 3D, 2D, and contour graphics.

  • Additionally, the perturbed system’s quasi-periodic solution is examined by adding definite forces to the model under consideration. Additionally, phase pictures are shown for the disturbed system that are not discussed in30,31.

  • Furthermore, sensitivity analysis and chaotic behavior for the perturbed system that are not displayed in30,31 have been observed by us.

Conclusion

This work has investigated the soliton solutions of the generalized third-order NLSE. The generalized auxiliary equation method and improved modified Sardar-sub equation method have been effectively used to derive analytical solutions in a variety of formats, including periodic, bell or bright, kink soliton, anti-kink soliton and singular solitons. Some of the findings have been shown graphically. According to the findings, the generalized auxiliary equation method and IMSSEM have been proved more sophisticated, creative and effective methods for researching exact solutions of nonlinear equations in mathematical physics and engineering. The work offers new information on bifurcation structures, chaotic dynamics, and sensitivity behaviour of the model, unexplored systematically heretofore. The governing equation’s related dynamical system have been derived first time using the Galilean transformation and the theory of the planar dynamical system was used to carry out the bifurcation analysis. The dynamical system with an external term analyzed for chaotic behaviors by representing a sequence of phase pictures in 2D, 3D and time series. Furthermore, sensitivity analysis has been performed on the dynamical system to make sure that minor adjustments to the initial conditions would not have a major impact on the solutions. Future research can be extended to higher-order and stochastic models and their applications to optical and plasma systems.
