Fig. 9

From: Analysis of the long-term sealing integrity of cement sheath in CO2 storage wells

Fig. 9The alt text for this image may have been generated using AI.

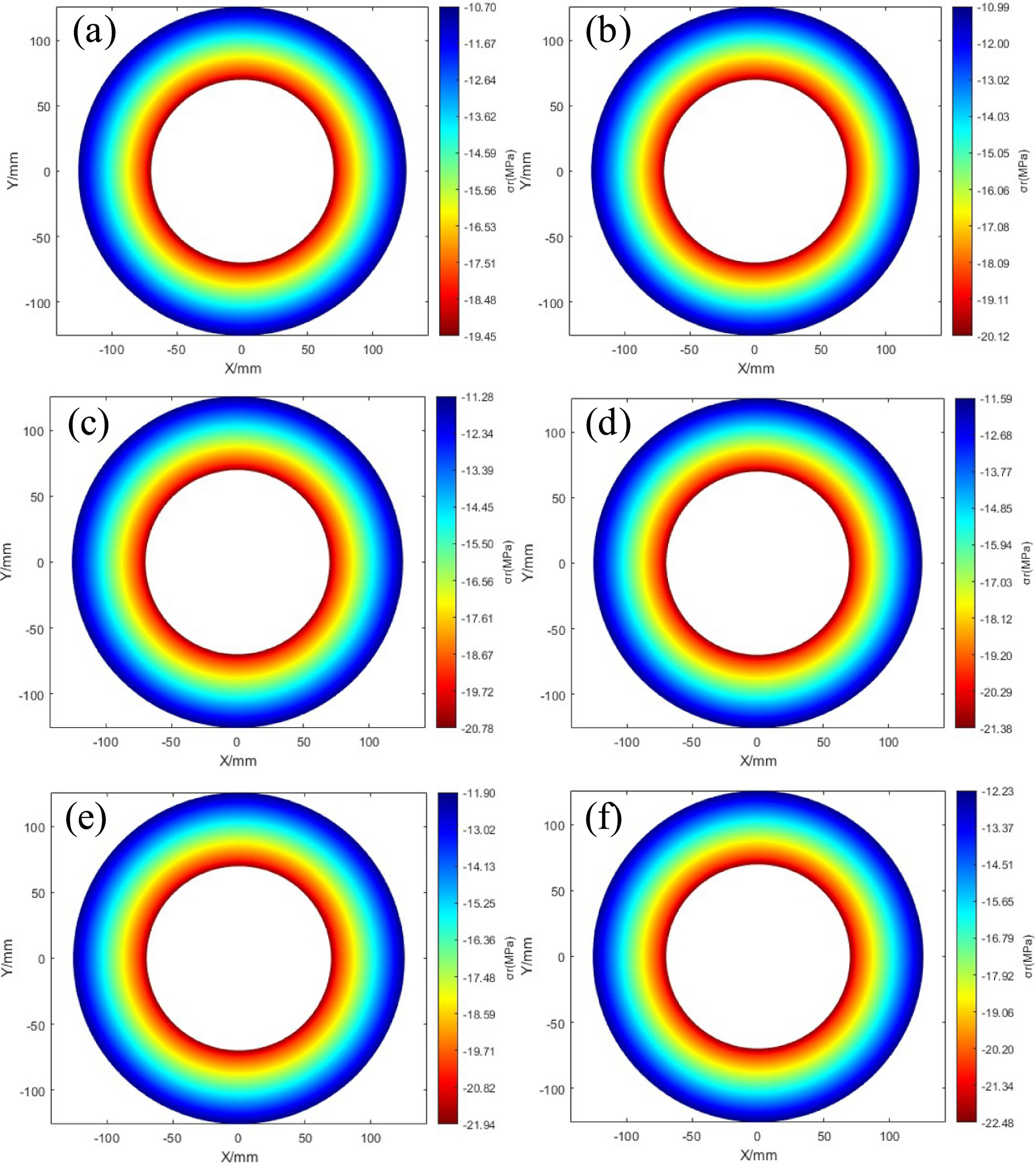

(a) Radial stress nephogram of cement sheath with 5 mm CSCL thickness; (b) radial stress nephogram of cement sheath with 10 mm CSCL thickness; (c) radial stress nephogram of cement sheath with 15 mm CSCL thickness; (d) radial stress nephogram of cement sheath with 20 mm CSCL thickness; (e) radial stress nephogram of cement sheath with 25 mm CSCL thickness; (f) radial stress nephogram of cement sheath with 30 mm CSCL thickness.
