Introduction

Corrosion processes lead to significant losses, particularly within industrial contexts. It is evident that prevention is the most effective strategy to mitigate these issues1. Various methods exist to avert or reduce the deterioration of metal surfaces. Carbon steel (CS), an alloy of iron and carbon, can be classified into different types based on its carbon content. The amount of carbon present plays a crucial role in determining the properties of CS, such as its mechanical strength, ductility, and hardness2,3. According to widespread availability, cost-effectiveness, besides physical and mechanical properties of CS, it can be applied in numerous applications across diverse industrial sectors as bridges, automobiles, machinery components, and petroleum industry4,5,6. Despite X-65 extensive use in multiple industrial domains, it is prone to corrosion, particularly in petroleum sector during cleaning and descaling processes using corrosive acidic solution of HCl owing to its enhanced efficacy at lower temperatures and the ease of corrosion removal7. In economic terms, the huge damage resulted from the corrosion process in petroleum field is more than 3% of the PIB in the USA8. The annual direct cost of metallic corrosion ranges from 2 to 4% of the gross domestic product (GDP) in industrialized countries, and the trend is becoming higher and higher in the future9. A corrosion inhibitor is a widely recognized technique for controlling corrosion, utilized in minimal quantities to safeguard metals via forming a protective film layer on the surface, shielding it against the corrosive environments10,11. Corrosion inhibitors (CIs) can significantly influence CS corrosion process by the continuous injection into the corrosive solutions in minimal amounts, thereby hindering the interaction between the CS surface and corrosive agents12. The most prevalent and effective CIs are organic inhibitors, that have a variety of adsorption sites, including heteroatoms (N, O, S, and P), π-bonds, and aromatic rings within their molecular structure13,14. CIs with low cost have a great acceptance to be applied according to their remarkable anti-corrosive properties15,16. Consequently, the scientific community has initiated efforts to identify environmentally friendly inhibitors, such as organic inhibitors which utilized as cathodic, anodic, or both types of inhibitors. Generally, organic inhibitors operate through a surface adsorption mechanism accompanied with insulation film construction, and exhibit high inhibition efficiency while posing minimal environmental risks17,18. Organic inhibitors create a protective hydrophobic film of their adsorbed molecules on the metal surface, effectively acting as a barrier against the destructive agents in the surrounding environment19,20,21. Numerous polyamine surfactants have both amphiphilic qualities (hydrophilic and hydrophobic portions), and functional groups offering dual mechanisms of protection via reaction with metal surface forming an insulation shielding layer against the corrosive species7,22. Polyamine surfactants are corrosion inhibitors with distinct features, that make them useful in a variety of industrial applications. Their capacity to produce protective film, combined with minimal toxicity and environmental impact, makes them a viable alternative to standard corrosion inhibitors9,23,24. Shengjie Du et al.25 investigated the performance of HPAE-Ohs for Q235-steel inhibition in 1 M HCl solution using chemical and electrochemical techniques and the HPAE-OHs was a mixed type inhibitor with 94.9% efficiency. Wenjing Liu et al.26 discussed the corrosion potency of the synthesized UPy-D400-PEGDA for Q235-steel in 1 M HCl. The corrosion protection of UPy-D400-PEGDA reaches 98.80% at 500 mg/L. Punitha et al.27 presented the effect of PCBPE on mild steel in 1 M HCl solution in different temperatures. The protection efficiency of PCBPE enhanced with rising of concentrations till reach 90.02% at 100 ppm and diminished as temperatures increase.

The novelty of the presented manuscript is developing polyamine surfactant (PAS) for X-65 corrosion mitigation with multiple amine (–NH, –NH₂) groups with lone-pair electrons that strongly adsorb onto metal surface through electrostatic attraction or coordination bonds, forming a compact barrier layer that blocks corrosive species. Besides the existence of O-atoms and ester groups (COO), decrease the metal oxidation (anodic reaction) and/or electron-consuming cathodic reactions, effectively reducing the overall corrosion rate even at very low concentrations. Also, the existence of numerous alkyl hydrophobic chains in its molecular structure help in covering and insulation of extra X-65 surface area. This structure of PAS provides multiple active centers which verified the high efficiency, stable, and adsorbed protective layer of PAS molecules onto X-65 surface that inhibits electrochemical corrosion reactions and prolongs the durability of metallic structures, particularly in industrial environments such as petroleum field. Unlike conventional inhibitors, PAS was synthesized via multi-step process specifically designed to create a 'star-shaped’ topology with a hydrophobic tail and a hydrophilic head containing numerous amine groups and displays a good solubility in polar solvents such as water, methanol, ethanol and acetone. The preparation of the studied PAS was achieved through the sequential combination of ring-opening, esterification, and aza-Michael addition reactions, resulting in a molecule with high adsorption capacity and multi-site binding ability on steel surfaces. The mitigation capacity of PAS for X-65 type of CS in destructive 1.0 M HCl environment, utilizing various electrochemical techniques involved potentiodynamic polarization (PDP) and electrochemical impedance spectroscopy (EIS). Also, X-65 surface morphology was examined prior to and following PAS mitigator via various surface analyses such as scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDX) mapping, and atomic force microscopy (AFM). Additionally, quantum approach was carried out employing density functional theory (DFT) and Monte Carlo simulations (MCs) predicted PAS active sites and its adsorption mechanisms. In this study, a wide range of concentrations of the studied PAS inhibitor was used for more comprehensive study starting with lower concentration (5 µM) to higher concentration (1000 µM) showing inhibition efficiency increase from 69.27 to 95.49% respectively. In practical applications, it is ideal to provide high protection with a low inhibitor dosage for economical applications.

Experimental

Materials

Triethanol amine, Maleic anhydride, and hexadecyl amine were obtained from Aldrich Chemical Corporation, USA. Diethylenetriamine was obtained from Fluka Chimica-Biochimica, Switzerland. All chemicals were used without further purification.

Inhibitor preparation

Three steps were applied for PAS preparation as observed in Scheme 1 as follow:

Scheme 1
Scheme 1
Full size image

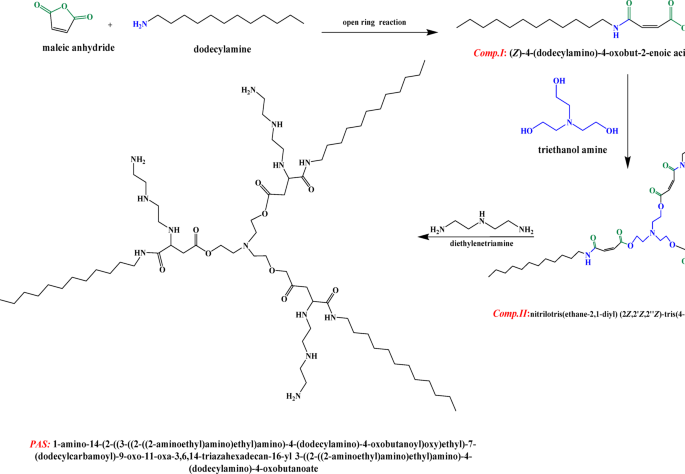

Synthesis of polyamine surfactant (PAS).

  • First step (Amidation reaction).

Maleic anhydride with 0.1 Mole was dissolved in an appropriate amount of ethyl acetate using three necked-flask with a stirrer, then 0.1 mol of dodecyl amine was added adding slowly at 50–60 °C for two hours. Subsequently, ethyl acetate solvent was distilled off to get white crystals of Comp.I ((Z)-4-(dodecylamino)-4-oxobut-2-enoicacid) after recrystallized from ethanol (yield 95%)28.

  • Second step (esterification reaction).

Comp.II (nitrilotris(ethane-2,1-diyl)(2Z,2′Z,2′′Z)-tris(4-(dodecylamino)-4-oxobu-t-2-enoate) was prepared using one neck flat bottom flask fitted with a Dean-Stark trap at 140 ̊C, containing 0.3 mol of prepared Comp.I and 0.1 mol of triethanolamine with 20 ml xylene solvent, and 2% PTSA (p-Toluenesulfonic acid) as a catalyst with continuous stirring till the theoretical water quantity was collected. Comp.II was obtained after purification through washing using a hot supersaturated sodium chloride solution giving organic layer was then separated, and dried utilized anhydrous sodium sulfate (yield 85%)23.

  • Third step (Michael addition reaction).

Reaction mixture containing solution of (0.1 M) diethylene triamine and (0.3 M) Comp.II in DMF was stirred at room temperature and the reaction mixture was left overnight. Then the reaction mixture was concentrated using diethyl ether giving yellow viscous compound purified twice using chloroform29. The resulting compound was dried giving star-shaped PAS (nitrilotris(ethane-2,1-diyl)tris(3-((2-((2-aminoethyl) amino) ethyl) amino)-4-(dodecylamino)-4-oxobutanoate) (yield 85%). The chemical structure of the synthesized compounds (Comp.I, Comp.II, and PAS) was confirmed utilizing FT-IR and 1HNMR as depicted in Figs. 1 and 2 respectively.

Fig. 1
Fig. 1
Full size image

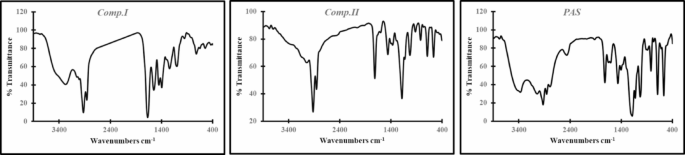

FT-IR spectroscopy of the prepared compounds.

Fig. 2
Fig. 2
Full size image

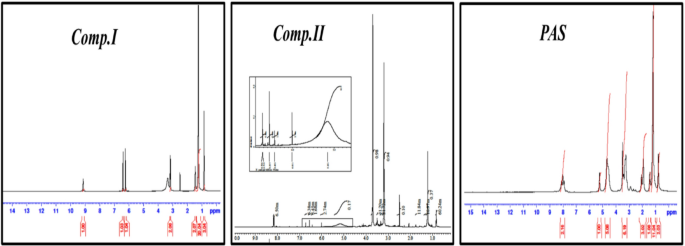

1HNMR spectroscopy of the prepared compounds.

Surface tension measurements

Various molar concentrations of the synthesized star-shaped PAS were solubilized in double distilled water, and their surface tension parameters were assessed at ambient temperature (25 °C ± 1) utilizing a Theta optical tensiometer from Attension-Biolin Scientific Company.

Electrochemical measurements

Electrochemical assays were conducted utilizing X-65 steel as the working electrode, characterized by the following chemical composition in weight percent: 0.06% C, 0.06% Si, 0.7% Mn, 0.005% P, 0.001% S, 0.012% Ni, 0.015% Cr, 0.004% Mo, 0.002% V, and 0.02% Cu. The saturated calomel electrode (SCE) served as the reference electrode, while a The platinum wire was employed as the counter electrode, all connected to a Potentiostat-Tacussel Radiometer PGZ 402 (Volta lab 80). The experiments were performed in both the absence and presence of various doses of PAS. Following a 30-min open circuit potential (OCP) stabilization period for the X-65 steel immersed in 1 M HCl, with and without PAS at different concentrations until a steady EOCP was achieved, EIS was carried out over a frequency range of 106 Hz to 0.05 Hz using a sinusoidal AC wave signal with a peak-to-peak amplitude of 10 mV. PDP curves were obtained at a scan rate of 1 mV/s, with potential sweeping ± 250 mV relative to EOCP.

Weight loss measurements (WL)

Weight loss measurements (WL) of X-65 steel were carried out at various temperature level (25 °C–55 °C) and different duration of immersion (6 h–24 h) prior to and following the injection of the optimum concentration (1000 µM) of PAS inhibitor.

Surface analysis study

The detrimental impact of HCl on X-65 steel, both prior to and following the injection of the optimum dose (1000 µM) of the synthesized PAS, was illustrated using SEM with a QUANTA FEG 250 supported with EDX unit, after 6-h immersion period. Additionally, AFM with 3D-images of X-65 surface along the X, Y, and Z coordinate axes, before and after addition of PAS inhibitor were obtained using Park System XE-100.

Computational studies

Theoretical quantum approach as DFT and MCs for the studied PAS inhibitor were applied utilizing BIOVIA Materials Studio 17.1.0.48 software from Accelrys, Inc according to the previous literatures30,31,32.

Result and discussions

Confirmation of chemical structures of the prepared inhibitors

The chemical structure of the prepared star-shaped PAS was confirmed by the FTIR and 1H NMR spectroscopy.

The chemical structure of Comp.I was confirmed by:

The FT-IR (KBr, cm-1) spectrum of the synthesized Comp.I presented in Fig. 1 showing a characteristic, broad absorption band at approximately 3450 cm-1, which is attributed to the O–H stretching vibration of the newly formed carboxylic acid group. Appearance of new bands corresponding to the amide functionality, specifically the C = O stretch (amide I band) at 1669.75 cm-1, stretching vibrations of the aliphatic methylene groups are observed at 2925 cm-1 and 2858 cm-1. Significantly, the spectrum shows the complete disappearance of the characteristic anhydride carbonyl bands (typically observed near 1850 and 1780 cm-1), which confirms the consumption of the starting maleic anhydride and the successful ring-opening amidation reaction. The 1HNMR (DMSO-d6) spectrum (Fig. 2), 400 MHz; δ (ppm) at 0.870 for protons of CH3; 1.242 for (CH2)n; 3.180 for CH2-NH; 6.256 and 6.433 for CH = CH; 9.143 for amide proton NH.

The chemical structure of Comp.II was confirmed by:

The FT-IR (KBr, cm-1) spectrum of Comp.II (Fig. 1) confirms successful esterification, as indicated by the disappearance of the broad O–H stretching band at 3450 cm-1 and the appearance of a characteristic ester carbonyl (C=O) stretching vibration at 1714 cm-1. Furthermore, the presence of a C-N stretching band at 1184 cm-1 provides additional confirmation for the incorporation of the triethylamine moiety, confirming the complete conversion of the carboxylic acid to the ester functionality. Also, from IHNMR of Comp.II in Fig. 2, it can be observed that, in addition to chemical shifts of monoamide maleate a new two characteristic chemical shifts were appeared at 3.19 and 3.70 of two methylene group of triethanolamine arm (NCH2-CH2O) respectively. Protons of CH2-NH were shifted to lower chemical shite at 2.5 and 8.3 respectively.

The chemical structure of star-shaped PAS was confirmed by:

Evidence for the successful aza-Michael addition reaction is provided by the FT-IR (KBr, cm-1) spectrum of PAS (Fig. 1), which displays two key bands in the N–H stretching region: a broad band at 3369 cm-1 (primary amine) and another at 3100 cm-1 (secondary amine). Also, the disappearance of band at 1590 cm-1 of alkene stretching (C=C). The 1HNMR spectrum of star-shaped PAS (Fig. 2) revealed the absence of the investigative characters for the maleate vinyl protons at δ = 6.256 and 6.433, which were presented in the spectra of the precursor compounds. This disappearance is consistent with the saturation of the double bond during the conjugate addition step.

Surface tension measurements

The surface tension (γ) of the synthesized star-shaped PAS was evaluated across different concentrations, both above and below the critical micelle concentration (CMC) as depicted in Fig. 3, showing γ versus ln concentrations (C) of PAS. It was observed that the γ value exhibited a linear decrease as the concentration of PAS increased. This trend was consistent for the synthesized surfactant up to the CMC, beyond which no significant alterations were observed. The CMC value were determined from the inflection point in the γ–ln C graph, and documented in Table 1, which also, provides information regarding the area per molecule at the air–water interface, the effectiveness (πCMC), and the surface excess concentration (Γmax) of the synthesized PAS33,34. As illustrated in Fig. 3 and Table 1, the prepared surfactant effectively reduced γ of water with πCMC = 28 mNm-1. The low surface tension value (γcmc) indicated a high level of surface activity and a strong propensity for adsorption at the water/air interface9. The prepared PAS exhibits good surface properties due to its star-shaped structure, which combines hydrophobic long alkyl chains with a hydrophilic polyamine backbone. As noticed, CMC with low value (0.0025 mol L-1) was due to presences hydrophobic group (dodecyl group) that acted as the motivation for transitioning from the bulk solution to the interface accompanied with a decline the system’s free energy35,36. The adsorption of PAS molecules at the air–water interface can be analyzed through two key parameters: surface pressure and Γmax that represented the peak concentration of surfactant molecules at the interface under saturation conditions. Γmax for PAS was determined from the slopes of the pre-micellar region (∂γ/∂log C) as follow 37:

$$\varGamma _{{\max }} = \left( { - d\user2{\gamma }/d\ln C} \right)/\left( {2.303nRT} \right)$$
(1)

where, R and T denote the gas constant and absolute temperature respectively. n is the number of ions that form in solution due to surfactant dissociation. It was noticed that, Γmax with lower value according to PAS chemical structure which enhanced its adsorption process12,38.

Fig. 3
Fig. 3
Full size image

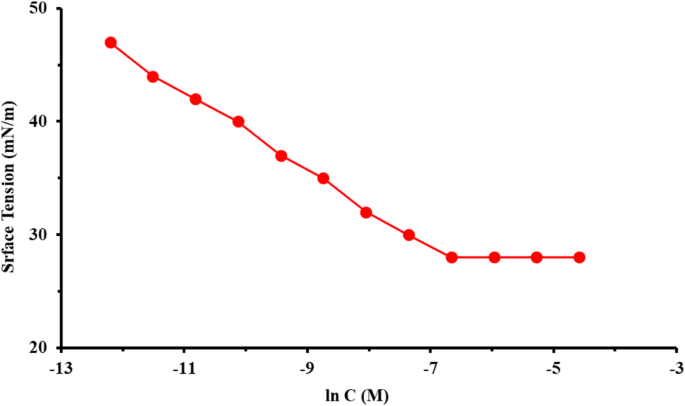

Variation of the surface tension with PAS concentrations at 25 °C.

Table 1 Surface active parameters for the Prepared PAS at 25 ºC.
Full size table

Also, Γmax value was utilized Amin (minimum area) calculation at the aqueous-air interface as follow23:

$$A_{min} = \, 10^{16} / \, N_{A} \varGamma_{max}$$
(2)

where, NA = Avogadro's number. The molecular area at the interface offers insights into the packing density and orientation of the adsorbed PAS molecules. The findings regarding Amin and Γmax values reinforced the correlation between the adsorption capacity at solution/air interfaces and the structural characteristics of PAS (star-like structure), which possesses multiple active adsorption sites9,33. The Gibbs free energy of micellization (\({\Delta G}_{mic}^{o}\)) and \({\Delta G}_{\text{ads}}^{^\circ }\) (free energy of adsorption) values were calculated and recorded in Table 1 as follow39:

$${\Delta G}_{mic}^{o}=RT\text{ln}CMC$$
(3)
$${\Delta G}_{\text{ads}}^{\circ }={\Delta G}_{mic}^{^\circ }-(6.023 \times {\pi }_{\text{CMC}}{A}_{min})$$
(4)

The free energy values for \({\Delta G}_{mic}^{\circ}\) and \({\Delta G}_{\text{ads}}^{\circ }\) of the synthesized PAS were negative, indicating that both processes are spontaneous. Furthermore, the value of \({\Delta G}_{\text{ads}}^{\circ }\) was more negative than that of \({\Delta G}_{mic}^{\circ}\), suggesting that, the adsorption at the interface leads to a greater decline in the system’s free energy. This implies that the adsorption process is more favorable than micellization for the examined PAS40,41.

Weight loss at harsh conditions

The stability of the adsorbed film of PAS upon X-65 surface was investigated through weight loss (WL) measurements, conducted both in the absence and presence of the optimal concentration (1000 µM) across various temperatures and immersion durations.

  • Effect of immersion time

The effectiveness of the examined PAS inhibitor in X-65 corrosion dominance was assessed through WL measurements over extended immersion periods (6 h, 9 h, 12 h, and 24 h) at 25 ºC based on the measured weights of X-65 samples prior to and following immersion. The following equations were employed to determine the corrosion rate (r, g/cm2 h), θ, and η%:

$$\Delta W={W}_{o}-W$$
(5)
$$\theta ={W}_{o }-W/{W}_{o}$$
(6)
$$\eta \%=\theta \times 100$$
(7)

here, ∆W denotes weight difference (g). W and Wo denote the weights of X-65 after and before immersion, respectively, measured in grams (g)9,42. The inhibition potency of PAS in Table 2 and Fig. 4 almost stable which exhibited PAS adsorbed film stability during prolonged immersion suggesting that, PAS provided a high degree of protection for X-65 against the corrosive environments which can be elucidated by the adsorption of PAS molecules on the X-65 surface forming a protective film layer43,44,45. Also, Fig. 4 presented ∆W over time showing blank solution with a linear relationship above that of PAS inhibitor with large gap among each other. As noticed in Fig. 4, ∆W value increased rapidly over time in the untreated corrosive solution, while after treated with PAS, ∆W value increased slightly. This observation suggested that, the formation of a protective layer of PAS molecules during the adsorption process on X-65 surface, reducing the interaction between X-65 surface and the corrosive medium, thereby mitigating the impact of the aggressive environment on the metal46,47,48.

Table 2 Weight loss parameters for X-65 immersed in 1 M HCl solution with and without PAS at various immersion time.
Full size table
Fig. 4
Fig. 4
Full size image

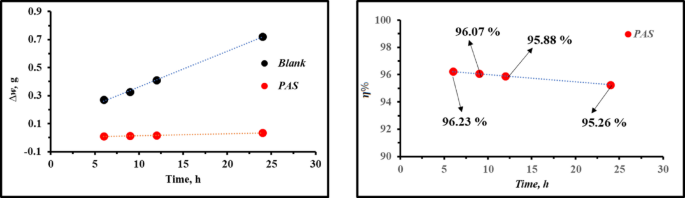

Weight difference and inhibition efficacy of the studied PAS vs time.

  • Effect of temperature

The influence of temperature on the stability of PAS film was examined across a range of temperatures (25–55 ºC) following a 6-h immersion period. The data in Table 3 indicated that, the values of r following the addition of PAS were significantly lower than those observed in 1 M HCl. This finding powered the inhibition impact of the examined PAS inhibitor, which can be elucidated by the attraction of PAS molecules to X-65 surface through their adsorption process, leading to the formation of a protective film layer46,49. Furthermore, the reduction in the efficacy of PAS mitigator was approximately 1.86% at various temperature levels, suggesting that the effectiveness of PAS remains relatively stable at elevated temperatures due to the establishment of a strong protective film of PAS molecules upon X-65 surface which acted as a resistant to the corrosive agents’ attacks50,51,52.

Table 3 Weight loss parameters for X-65 immersed in absence and presence of PAS at different temperature.
Full size table

Thermodynamic parameters related to activation included activation energy (Ea), activation entropy (ΔSa), and activation enthalpy (ΔHa) were derived from Arrhenius and transition state equations (Fig. 5) based on WL measurements and listed in Table 4 as follow:

$$\text{ln }r=\text{lnA}-({E}_{a}/RT)$$
(8)
$$\text{ln}(r/\text{T})=[\text{ln}(R/{N}_{A}h)+(\Delta {\text{S}}^{a}/R)]-(\Delta {\text{H}}^{a}/\text{RT})$$
(9)

here, A, R, and T represent Arrhenius constant, gas constant, absolute temperature. As well as, h and NA denote Planck’s constant, and Avogadro’s number8. According to Table 4, the Ea value was recorded as 38.318 kJ/mol in the untreated solution, while after the introduction of PAS, Ea enhanced and reached 49.243 kJ/mol which can be attributed to an energy barrier that hinders X-65 degradation in acidic environment, resulting in reduced mass and charge transfer16,53,54. Moreover, the existence of PAS elevated Ea value of X-65, indicating its physical adsorption through electrostatic interactions between X-65 charged sites and PAS inhibitor55,56. ΔHa values presented in Table 4 were 36.22 kJ/mol and 46.64 kJ/mol for 1 M HCL free and containing PAS, respectively. This observation reflected that, the corrosion process of X-65 demands more energy than the mitigation process, and also, the positive ΔHa value bolstered that, the PAS inhibition mechanisms was more endothermic than that of 1 M HCl solution reflecting the difficulty of X-65 corrosion57. In addition, the negative ΔSa value in Table 4 exhibited favorable interaction between PAS inhibitor and iron ions, suggesting that the stability of PAS–Fe complex was greater than its dissociation58,59,60,61,62.

Fig. 5
Fig. 5
Full size image

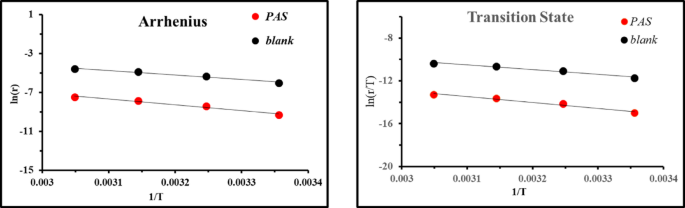

Arrhenius and transition state relations against 1/T for X-65in 1 M HCl free and containing PAS inhibitor.

Table 4 Thermodynamic activation parameters of X-65 in absence and presence of PAS at different temperature.
Full size table

Electrochemical impedance spectroscopy (EIS)

It is imperative to achieve a steady state process before starting Electrochemical assays. Eocp variation of X-65 with time in 1 M HCl free and containing different doses of PAS inhibitor until the steady-state potential was depicted as seen in Fig. 6. It was observed that, OCP tends to be stable with time and less fluctuates were observed. Also, the rapidly and negligible variations in the OCP can be attributed to the modification of the X-65 surface with the adsorbed PAS molecules with a steady-state had been achieved after 300 s. This findingexhibited that, PAS has more thermodynamically stable state and effective adsorption over X-65 surface. Also, the introduction of PAS inhibitor shifted Eocp value with very low alteration, confirming that the investigated PAS operated as mixed-type inhibitor via blocking both X-65 cathodic and anodic sites63,64. EIS is a widely used technique in corrosion studies using AC (Alternative Current) and wide range of frequencies for kinetic and mechanistic information at equilibrium (steady state) of the electrochemical system65. At room temperature (25 °C), the electrochemical behavior of X-65 was assessed in 1 M HCl environment with and without various quantities of the prepared PAS as shown in Fig. 7, showing Nyquist spectra and its corresponding impedance parameters as in Table 5. As noticed in Fig. 7, a significant increase in the diameter of X-65 Nyquist arcs after the addition of PAS relative to that of HCl free bolstered the anticorrosion effect of PAS and its surface coverage ability via construction of a protective film against HCl solution66,67,68. Also, the enhancement of Nyquist plots diameter with PAS concentrations is related to film thickness rising owing to adsorption of more quantities of PAS molecules69. This observation confirmed the mitigation impact of the studied PAS and X-65 degradation mechanism was regulated by charge transfer process which was also assured from bode curves as shown in Fig. 7 proffering enhancement in the gab distance between bode-phase curves of the untreated solution with PAS concentrations70,71,72. The shift in bode curves to higher value at various doses of PAS relative to blank solution (1 M HCl) demonstrated the adsorption power of the prepared PAS which was also confirmed by the appearance of phase curves of PAS towards – 90° compared with blank solution as seen in Fig. 773,74. All these annotations reflected the mitigation power of the prepared PAS through its adsorption process and shielding X-65 surface against the ruinous species of the surroundings environment75. Nyquist arc looked as imperfect capacitive loop unlike an ideal capacitor which can be attributed to frequency dispersion phenomena and X-65 surface heterogeneity as well diameter alteration between PAS molecules and electrons at X-65/solution interface, as both of + ve and -ve charges of PAS molecules and electrons respectively are equal76. It was observed that, a simple Randles EC (Equivalent Circuit) with one time constant was applied for X-65/electrolyte interface definition as in Fig. 8 involves resistance of electrolyte (RS), constant phase element (CPE), and polarization resistance (RP) which involved Rct (charge transfer resistance), Rd (diffuse layer resistance) and Ra (accumulation resistance) in absence of PAS inhibitor. While, in the existence of PAS, RP involved Rct, Rd, Ra, and Rf (film resistance)31. Additionally, X-65 heterogeneity was studied using CPE instead of Cdl (Double Layer capacitance) that was clarified using two factors, Y° (CPE magnitude) and n (phase shift) according to the following equation37:

$${Z}_{CPE}={Y}_{0}^{-1}(j{\upomega }_{max}{)}^{-n}$$
(10)

here, j and ω are imaginary root and angular frequency respectively. While Cdl, τ (relaxation time), and T (Thickness) can be computed using the following equation:

$${C}_{\text{dl}}=\left(\frac{{\varepsilon }^{^\circ }\varepsilon }{T}\right)A$$
(11)
$${C}_{\text{dl}}=1/(2\uppi {R}_{ct}{F}_{img\to Max})$$
(12)
$$\uptau ={C}_{\text{dl}}\times {R}_{\text{ct}}$$
(13)

here, \({F}_{img\to Max}\), A, ε◦, and ε denote the frequency at maximum imaginary impedance, X-65 surface area, air permittivity and dielectric constant respectively67. According to the above equation, the presence of PAS decreases the value of Cdl which was also emphasized from Y° value that drops with PAS concentrations rising77,78. This fact designated the adsorption power of PAS due to its special structure over X-65 surface via H2O replacement process by PAS molecules consequently, enhanced the film thickness and X-65 surface coverage by reducing the exposed X-65 surface area to the destructive environment79. The rising values of coefficient n following the introduction of PAS inhibitor, as illustrated in Table 5, indicated an improvement in X-65 surface homogeneity owing to the adsorption and accumulation arrangement of PAS molecules at the interfaces of the X-65/HCl solution, as well as the energy distribution within the film layer80. Also, the introduction of the examined PAS inhibitor enhanced τ to higher value as observed in Table 5, indicating that, PAS molecules are gradually adsorbed onto X-65 surface, leading to construction of a stable film layer of PAS molecules that effectively shielding X-65 surface from the destructive species81.

Fig. 6
Fig. 6
Full size image

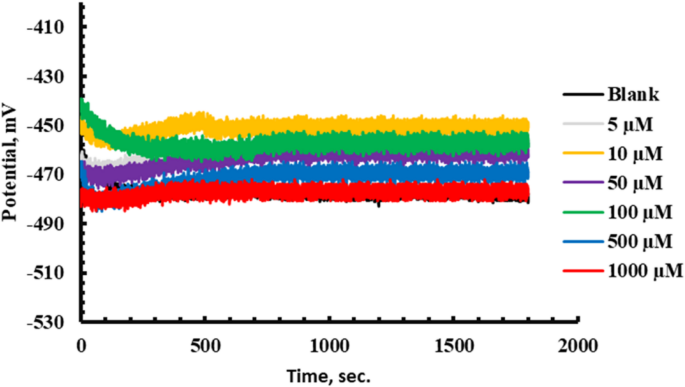

OCP Vs Time for CS in 1 M HCl in absence and presence of different concentrations of PAS inhibitor at room temperature.

Fig. 7
Fig. 7
Full size image

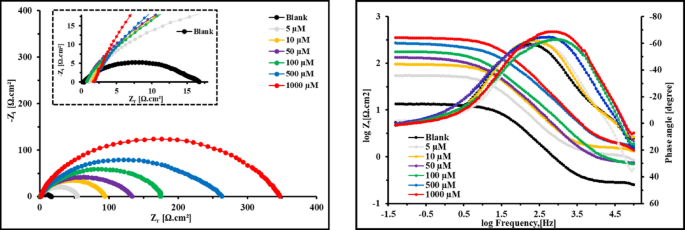

Nyquist and Bode-phase curves of X-65 in 1 M HCl without and with different concentrations of PAS inhibitor.

Table 5 EIS parameters of for X-65 immersed in 1.0 M HCl without and with various doses of PAS inhibitor.
Full size table
Fig. 8
Fig. 8
Full size image

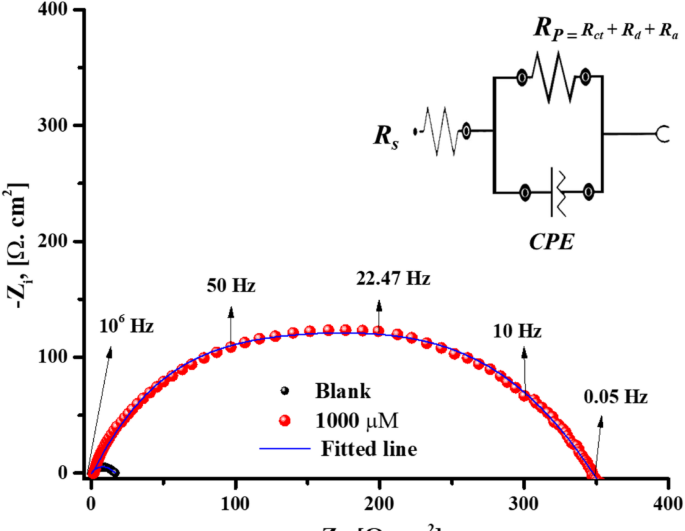

Nyquist plots of X-65 in 1 M HCl in absence and presence of 1000 μM of PAS inhibitor using the proposed equivalent circuit.

The following equations were used to estimate the θ and η% of the prepared PAS based on RP value:

$$\theta =({R}_{P. PAS}-{R}_{P. blank})/{R}_{P. PAS})$$
(14)
$$\eta \%=\theta \times 100$$
(15)

where, \({R}_{P. blank}\) and \({R}_{P}\) are the polarization resistance in absence and presence of PAS respectively82. From Table 5, the high values of RP and η% in the existence of PAS reveals its mitigation power and significant role in X-65 protection. The Rb value increased to 348.56 Ω cm2, compared to a baseline of 15.86 Ω cm2 for the blank, at an optimum concentration of 1000 µM PAS. This is a direct result of the inhibitor’s branched, star-shaped molecular design. This unique geometry enables multi-point adsorption, where numerous functional groups (heteroatoms N, O and C = O groups of esters) from a single molecule can bind to the surface synchronously. This leads to the formation of a strong and extensive defensive layer that significantly inhibits corrosion. Also, η% enhanced with PAS doses till touch 95.46% at 1000 µM. All these annotations bolstered the perfect surface coverage of PAS molecules over X-65 surface and significant reduction of X-65 corrosion after the addition of PAS consequently drop X-65 degradation rate83,84. The experimental corrosion data obtained from EIS and PDP exhibited a strong correlation with each other.

Polarization measurements (PDP)

PDP analysis provides valuable information about the electrochemical kinetics associated with corrosion and mitigation mechanism. PDP diagrams of X-65 immersed in 1 M HCl Prior to and following PAS addition were illustrated as seen in Fig. 9. The addition of PAS mitigator retarded both the anodic X-65 corrosion and cathodic H2 production owing to the blocking ability of the studied PAS inhibitor. Also, a notable shift in Tafel curves to more negative values in lower current density region which influenced by concentration rising of PAS according to its adsorption process upon X-65 surface accompanied with a decline in Cl- and H+ in the corrosive medium65. The same appearance of Tafel curves parallel lines reflected that, X-65 corrosion mechanism didn’t alter with the existence of PAS inhibitor. Besides, the reduction of hydrogen reaction was governed by the adsorption of PAS molecules over X-65 forming insulation barrier layer between X-65 surface and the destructive surrounding subsequently, reduced the available surface area for the adsorption and reduction of hydrogen ions85. The protection process of X-65 surface can be elucidated by the adsorption of the prepared PAS and formation of an insulation defensive layer from the adsorbed PAS molecules against the destructive particles subsequently suppressed X-65 corrosion rate86. Some associated corrosion parameters include icorr (corrosion current density) and corrosion potential (Ecorr), along with both the Tafel anodic (βa) and cathodic (βc) slopes were tabulated as in Table 6. Utilizing the obtained icorr value, θ (Surface Coverage) and inhibition efficacy (η%) values were calculated and are also displayed in Table 6 as follow87,88:

$$\theta =({i}_{\text{corr}. HCl}-{i}_{\text{corr}. PAS})/{i}_{\text{corr}.\text{HCl}})$$
(16)
$$\eta \%=\theta \times 100$$
(17)

here, \({i}_{\text{corr}. HCl}\) and \({i}_{\text{corr}. PAS}\) are the uninhibited and inhibited corrosion current densities respectively. The obtained data in Table 6 reflected that, the prepared PAS operated as mixed-type inhibitor which can be confirmed from Ecorr value with very low alteration prior to and following PAS introduction via blocking both X-65 cathodic and anodic sites which can be also proved from βa and βc value12,89. Also, the existence of PAS decreased icorr till reach 0.0396 mAcm−2 at 1000 µM compared with that value of the unprotected solution 0.7381 mAcm−2 with inhibition efficiency touched 94.63%. This annotation is explained by the strong adsorption of the prepared PAS at the X-65 surface, due to the molecule’s star-shaped design. This structure inherently provides multiple active centers for adsorption, including ester groups, amide groups, and the extensive polyamine chain. The star shape allows these groups to adsorb at the surface simultaneously, leading to enhanced adsorption kinetics and high inhibition efficiency37,74.

Fig. 9
Fig. 9
Full size image

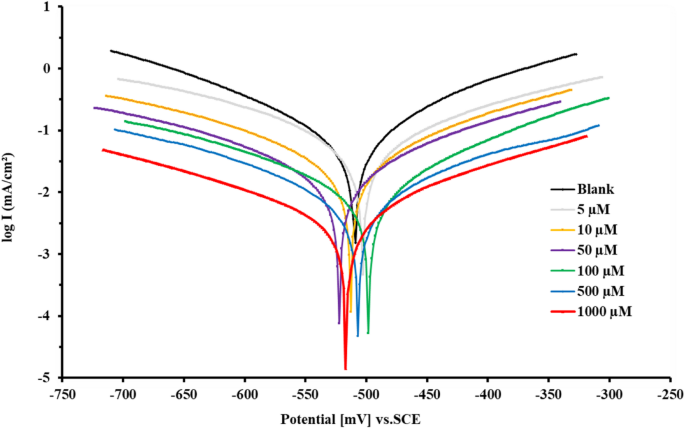

PDP curves for X-65 in 1 M HCl with and without different concentrations PAS at 25 ̊C.

Table 6 PDP parameters for X-65 immersed in 1.0 M HCl without and with various doses of PAS inhibitor.
Full size table

Adsorption isotherm

The adsorption of PAS molecules upon X-65 surface can be considered as a substitution process with water the adsorbed water molecules90,91. Many isotherms were applied using EIS data to find the most fitting isotherm for PAS adsorption reflecting Langmuir isotherm was the suitable one with regression coefficient (R2 = 0.9999) and linear relation of C/θ vs. C as depicted in Fig. 10, giving a slope close to unit and intercept equal to (1/Kads) according to the following equation:

$$^{\circ}\text{C}/\uptheta=(1/{K}_{\text{ads}})+\text{C}$$
(18)

here, Kads denotes the adsorption equilibrium constant92. Langmuir isotherm posits that there is no interaction among the adsorbed molecules, suggesting that the adsorption energy remains constant regardless of θ. It also postulated that metal surface has a fixed number of adsorption sites, with each site accompanied with a single adsorbed species93,94,95. The large Kads value in Table 7 revealed the ease and strong adsorption of PAS molecules upon X-65 surface shielding it against the destructive agents and formation of a protective barrier layer though PAS adsorption via numerous hetero atoms in its molecular structure96. The analysis of the Langmuir isotherm slope value, which exceeds 1, indicates that the adsorption of PAS on X-65 surface is more effectively described by a modified Langmuir equation known as Villamil isotherm. This model implies that each unit of PAS occupies multiple adsorption sites, besides interactions among the adsorbed PAS species over X-65 surface that accompanied with extra surface coverage as follow97,98:

Fig. 10
Fig. 10
Full size image

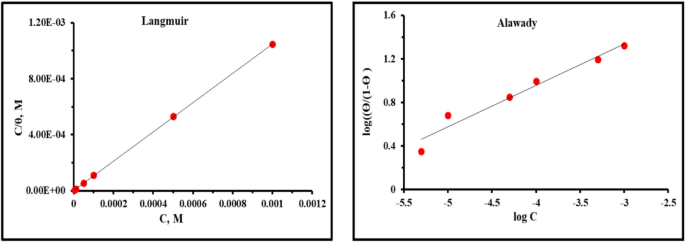

Langmuir and Alawady isotherms of PAS adsorption at X-65/HCl interface using EIS at room temperature.

Table 7 Langmuir and Alawady parameters of PAS adsorption at X-65/HCl interface using EIS data at room temperature.
Full size table
$$C/\theta=nC+(n/{K}_{ads})$$
(19)

In this context, n represents the calculated slope value which denotes the quantity of water molecules adsorbed during displacement99. Furthermore, the experimental data were analyzed using the Kinetic adsorption isotherm model proposed by Alawady, as described by the following equation100:

$$\text{ln}(\theta/1-\theta )=\text{ln }K+y\text{ln }C$$
(20)

here, K′ and y are constants associated with Kads (where, Kads = K1/y), and the number of PAS molecules that occupy single active site. The linearity of Alawady isotherm in Fig. 10 gives a slope equal y and intercept equal ln(K′). The value of y (< 1) as in Table 7 reflected that; PAS molecules occupied multiple active sites101. Furthermore, since y value < 1, suggesting the formation of a monolayer on the metallic surface, consistent with the principles of the Langmuir adsorption isotherm. Also, RL (dimensionless separation factor) was calculated based on Kads value obtained from Langmuir and Alawady isotherms as the next equation:

$${R}_{l}=1/(1+{K}_{ads} C)$$
(21)

As observed, RL in Table 8 with a small value less than unit (RL < 1) reflecting the high adsorption capacity of the studied PAS on X-65 surface23. \(\Delta {G}_{\text{ads}}^{^\circ }\) in Table 7 can be calculated established on Kads value as follow38,79:

$$\Delta {G}_{\text{ads}}^{^\circ }=-\text{RTln}(55.5{ K}_{\text{ads}})$$
(22)

here, 55.5 denotes water concentration (mole L−1). In general, \(\Delta {G}_{\text{ads}}^{^\circ }\) with value higher than − 20 kJ mol−1 corresponded to the electrostatic reaction between charged molecules and charged metal (physical adsorption), while with value lower than − 40 kJ mol−1 involved the electron sharing from the inhibitor molecules to the metal surface forming coordination bond (chemisorption)102,103. It was found that, the value of \(\Delta {G}_{\text{ads}}^{^\circ }\) was lower than − 40 kJ mol−1, demonstrating that, the adsorption mechanism of prepared PAS upon X-65 surface was chemisorption process. In addition, the -ve sign of \(\Delta {G}_{\text{ads}}^{^\circ }\) value tabulated in Table 7 indicated that, PAS molecules adsorbed over X-65 surface spontaneously104,105.

Table 8 Values of RL for X-65 immersed in presence of various concentrations of PAS in 1 M HCl solution.
Full size table

Quantum chemical calculations

DFT (density functional theory)

The optimized molecular configuration of the prepared PAS in aqueous environment was presented as depicted in Fig. 11 showing its FMOs (Frontier Molecular orbitals) containing HOMO (Highest Occupied Molecular Orbital) and LUMO (Lowest Unoccupied Molecular Orbital) regions which are responsible for PAS reactivity and electronic characteristics. The appearance of PAS with a planar situation with the X-65 surface, providing more X-65 surface protection106,107,108. The HOMO distributions represented the nucleophilic centers in Fig. 11 were localized on amino side chain with several -NH groups and ethylene spacers which highlighted coordination bond formation via electron sharing process to the unoccupied 3d-orbitals of iro109,110. While, the LUMO distributions represent the electrophilic centers were localized on carbonyl group, amide group and O-atoms which exhibited the ability of PAS to acquire electrons from X-65 surface via back donation process49,111,112. Also, the reactivity of the prepared PAS was confirmed through ED (Electron Density) and MEP (molecular electrostatic potential) distributions over the whole PAS molecular structure, that indicated its high adsorption power over X-65 surface with construction of a protective layer against the corrosive particles113,114. The PAS COSMO field in Fig. 11. presented carbonyl group, amide group and N-atoms with red color has high electron density resulting in PAS reactivity enhancement with X-65 surface which demonstrated high mitigation potency of PAS115,116,117. According to HOMO and LUMO energies (\({E}_{HOMO}\) and \({E}_{LUMO}\)), several quantum indices in Table 9 were calculated as follow:

Fig. 11
Fig. 11
Full size image

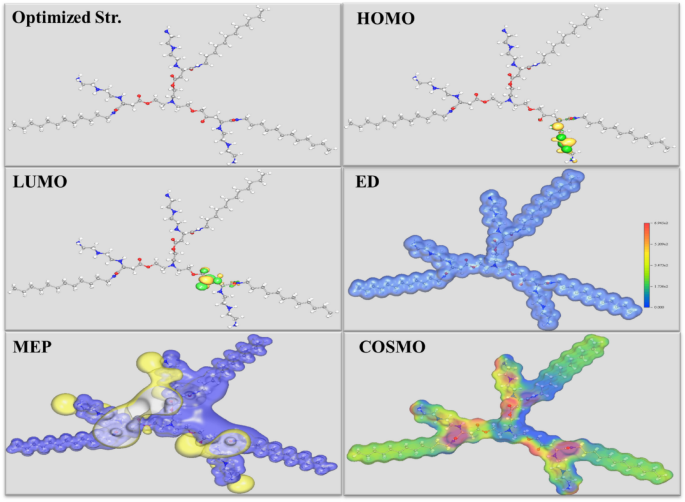

Optimized structures, HOMO, LUMO, ED, MEP, and COSMO field of the studied PAS.

Table 9 Computed Quantum chemical parameters of PAS inhibitor.
Full size table
$$\Delta {E}_{gap}={E}_{LUMO}-{E}_{HOMO}$$
(23)
$$I=-{E}_{HOMO}$$
(24)
$$A=-{E}_{LUMO}$$
(25)
$$\chi =\frac{-({E}_{HOMO}+{E}_{LUMO})}{2}$$
(26)
$$\eta =\frac{\Delta {E}_{gap}}{2}$$
(27)
$$\sigma =\frac{1}{\eta }$$
(28)
$${E}_{\text{b}\to \text{d}}=\frac{-\eta }{4}$$
(29)
$$\Delta N=\frac{({\chi }_{Fe}-{\chi }_{Al-Sb})}{2\left({\eta }_{Fe}+{\eta }_{Al-Sb}\right)}$$
(30)

Here, \(\Delta {E}_{gap}\), I, A, and \(\chi\) are energy gap, molecular ionization potential, electron affinity, and electronegativity. \(\eta ,\) σ, \({E}_{\text{b}\to \text{d}}, \text{and } \Delta N\) denote global hardness, chemical softness, energy of back donation and fraction of electron transfer. Besides, \({\eta }_{Fe}\) and \({\chi }_{Fe}\) are 0 eV/mol and 7 eV/mol respectively55,118. The values of \({E}_{HOMO}\) and \({E}_{LUMO}\) in Table 9 demonstrated PAS adsorption onto X-65 surface via electron donation-acceptance process111,119,120. Also, the diminished worth of \(\Delta {E}_{gap}\) as in Table 9, confirmed the high reactivity of the investigated PAS and its ease interaction with X-65 surface consequently inhibited X-65 effectively which was also assured from I and A lower values74,121. It was noticed that in Table 9, A value < I value which proposed methodology for chemical bonds construction between PAS and vacant d-orbitals of Fe via electron-donation process118. In addition, \(\eta\) and σ vacant verified PAS adsorption over X-65 accompanied with PAS/X-65 complex formation. The high positive \(\Delta N\) value revealed PAS competence to interact with Fe surface through electro-donation process and construction of a strong barrier layer insulation X-65 surface from the destructive particles122,123. All these explanations proved the mitigation competence of the studied PAS for X-65 corrosion in acidic 1 M HCl environment.

MCs (Monte Carlo simulation)

MCs was employed for PAS adsorption prediction onto Fe (110) surface as depicted in Fig. 12, showing the optimal configuration of the investigated PAS adsorbed over X-65 surface in both isolated (vacuum) and liquid (H2O, H3O+, and Cl-) phases. The existence of PAS onto Fe (110) surface with parallel alignment with PAS active centers oriented towards X-65 surface reflected the high interaction between PAS and Fe surface foaming an insulation film layer shielding X-65 surface against the destructive species55,124. This fact proved the PAS adsorption power and its mitigation effect with distinguished role in X-65 corrosion control. Also, the data obtained in Table 10 containing the adsorption energy (Eads), rigid energy (Erig), deformation energy (Edef), and energy ratios for the corrosive particles raveled PAS inhibitive effect. As noticed, the PAS with negative Eads value which indicated that, the studied PAS adsorbed onto X-65 surface spontaneously with formation of an inhibitory layer125,126. The Eads of the examined PAS in aqueous phase was very low relative to those of the corrosive species which demonstrated construction of PAS-Fe complexes accompanied with a defensive film formation via replacement process of the destructive particles over X-65 surface with the adsorbed PAS molecules127. Moreover, the Eads value in the simulated aqueous phase compared with that value in vacuum phase verified the strong adsorption capacity of PAS inhibitor with chemical bond formation between the oriented PAS active centers as N-atoms, O-atoms, carbonyl, and amide groups with the unoccupied d-orbitals of Fe128. The above annotations from DFT and MCs data exhibited the vital role of PAS inhibitor in X-65 protection which was matched with the experimental studies.

Fig. 12
Fig. 12
Full size image

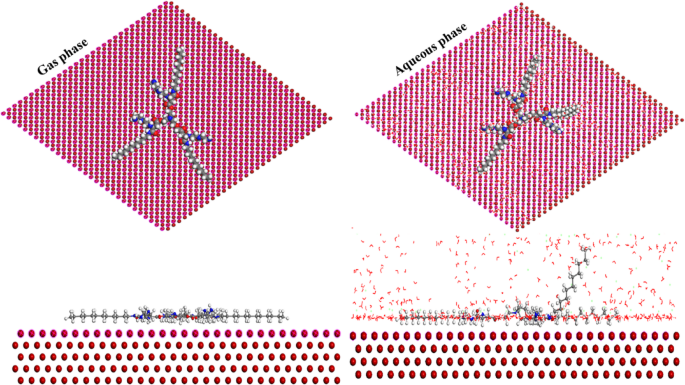

Equilibrium adsorption configuration of the studied PAS in both gas and liquid phases on Fe (110) obtained by MCs.

Table 10 The outputs energies calculated by MCs for PAS in gas and simulated liquid phases on Fe (1 1 0).
Full size table

Surface analysis

SEM analyses of X-65 surface both before and after addition of 1000 µM of the PAS to the corrosive media can be seen as described in Figs. 13 and 14. The findings highlighted the X-65 corrosion process in the untreated solution, where the surface exhibited significant damage and roughness due to HCl destructive effect97,129. In contrast, a markedly improved in X-65 surface was observed following the introduction of PAS inhibitor which can be attributed to its mitigation power and construction of barrier defensive layer of PAS molecules, which suppressed the interaction between X-65 surface and the corrosive environment98. EDX-mapping was carried out to identify the elementary analysis of the X-65. The observed results obtained from Figs. 13 and 14 confirming the annotations presented by SEM images showing X-65 immersed in the untreated solution with destructive surface and corrosion products primarily consists of iron oxides and chlorides, with chloride and oxide weight percentages (wt%) 48.26% and 12.91%, respectively. In addition, the Fe-peak with weight percentages 34.76%, reflecting the existence of iron in the untreated corrosive solution with soluble ions forms which facilitated their reaction with chlorides and oxides in the corrosive surrounding and produced corrosion products of iron oxides and chlorides21,130. While, the notably decline in chloride content with weight percentage 3.29% after the PAS addition which can be explained by the adsorption process of PAS molecules onto X-65 surface, that can also be verified by the appearance of nitrogen peak weigh percentages 1.12%. This confirmed the formation of the adsorption layer composed of smooth iron oxides and the PAS compound on the X-65 surface97,129. It is worth noting that, the intensity of the Fe-peak with improved and wt% of Fe was 90.16% after the addition of PAS, indicating construction of a defensive barrier layer shielding X-65 surface against the destructive agents131,132. AFM with 3D images in Fig. 15 showed different 3D images of X-65 surface prior to and following the PAS inhibitor addition showing corroded X-65 surface with average roughness 54.61 nm in the unprotected solution with higher surface roughness owing to HCl aggressive action133. While, after the addition of PAS inhibitor, X-65 surface morphology improved due to formation of adsorbed protective layer of PAS molecules decreasing average surface roughness to 18.27 nm134. All the above annotations highlighted the protection capacity of the investigated PAS for X-65 immersed in corrosive acidic environment (HCl) via formation of an insulation layer, covering more X-65 surface area from the corrosive agents subsequently suppressed X-65 corrosion rate. Additionally, the adsorption mechanism of PAS inhibitor with various adsorption modes was simulated and represented in Fig. 15.

Fig. 13
Fig. 13
Full size image

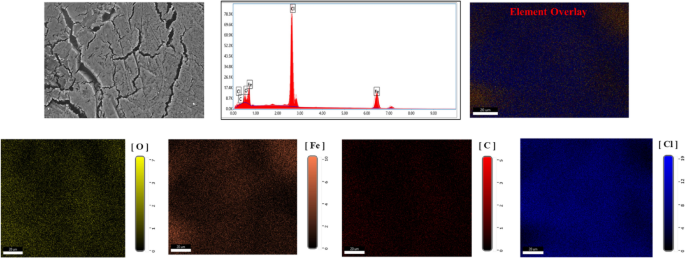

SEM and EDX mapping for X-65 in blank solution (1 M HCl) after 6 h immersion.

Fig. 14
Fig. 14
Full size image

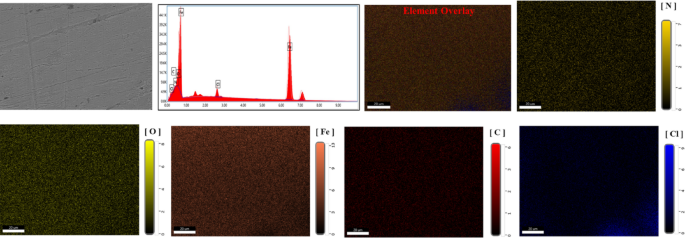

SEM and EDX mapping for X-65 in 1 M HCl free and containing PAS inhibitor after 6 h immersion.

Fig. 15
Fig. 15
Full size image

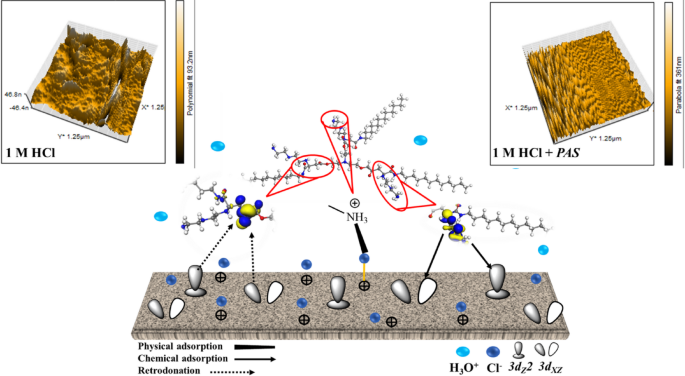

AFM of X-65 in 1 M HCl free and containing PAS inhibitor after 6 h immersion with the simulated adsorption mechanism.

Inhibition mechanism

The prepared PAS inhibitor declines the destructive effect of HCl solution via its adsorption process over X-65, suppressing its corrosion rate via decreasing the contact between the corrosive particles and X-65 surface by blocking its active sites. The functional groups of the star-shaped polyamine contribute to adhesion primarily through strong, multivalent chemisorption, which is directly responsible for its corrosion inhibition performance. The lone electron pairs on the N-atoms in the primary and secondary amine groups can form coordinate covalent bonds with the empty d-orbitals of iron atoms. This creates a persistent, adsorbed monolayer. Physical adsorption via electrostatic attraction between the charged sites in the PAS structure and the X-65 negative sites. Also, the prepared PAS showed a good surface property due to its star-shaped structure, which combines hydrophobic long alkyl chains with a hydrophilic polyamine backbone. The multi-armed, 'star-shaped’ architecture is critical here. It allows the molecule to: bind at multiple sites across the steel surface, creating a more stable and densely packed barrier, cover a wider surface area per molecule, enhancing efficiency, form a more uniform and resilient hydrophobic film that blocks the diffusion of the corrosive particles to the steel surface. This strong, multi-point adhesion physically and electrochemically passivates the surface. It raises the energy barrier for the anodic (iron dissolution) and/or cathodic (H2 evolution) reactions. The obtained data reflected the mixed nature of inhibition (physical and chemical). This feature enhanced the corrosion mitigation capabilities of PAS for X-65. Finally, MCs of PAS designated the horizontal orientation of the studied PAS inhibitor over the Fe (110) surface, which increased surface coverage percentage of X-65, consequently declined the rate of the corrosion process. Also, the comparison between the inhibition efficiency of the prepared PAS at optimum concentration (1 × 10–3 M) with other similar inhibitors with higher concentration (= or > 1 × 10–3) M as in Table 11 reflected PAS superior mitigation potency.

Table 11 Comparison between the inhibition efficiency of PAS and other investigated inhibitors for CS in 1 M HCl solution.
Full size table

Conclusion

The present research investigated the inhibition performance new star like shape PAS surfactant for X-65 steel immersed in 1 M HCl solution. The findings bolstered that, PDP, EIS, SEM, EDX-mapping, AFM analyses established that PAS effectively retarded the corrosion process of X-65 steel with an inhibition efficiency about 96% at a concentration of 1000 µM. PDP data reflected the mitigation power of PAS with mixed-type of inhibition through decline both metal dissolution and H2 evolution reactions. Also, EIS results exhibited a notable enhancement in RP values after the introduction of the studied PAS inhibitor which can be attributed to its adsorption process upon X-65 surface which obeyed Langmuir adsorption isotherm. Finally, DFT highlighted the electronic properties of PAS and its adsorption over X-65 surface via electron donation-acceptance process. Besides, MCs suggested that the examined PAS adsorbed nearly parallel to Fe (110) surface.
