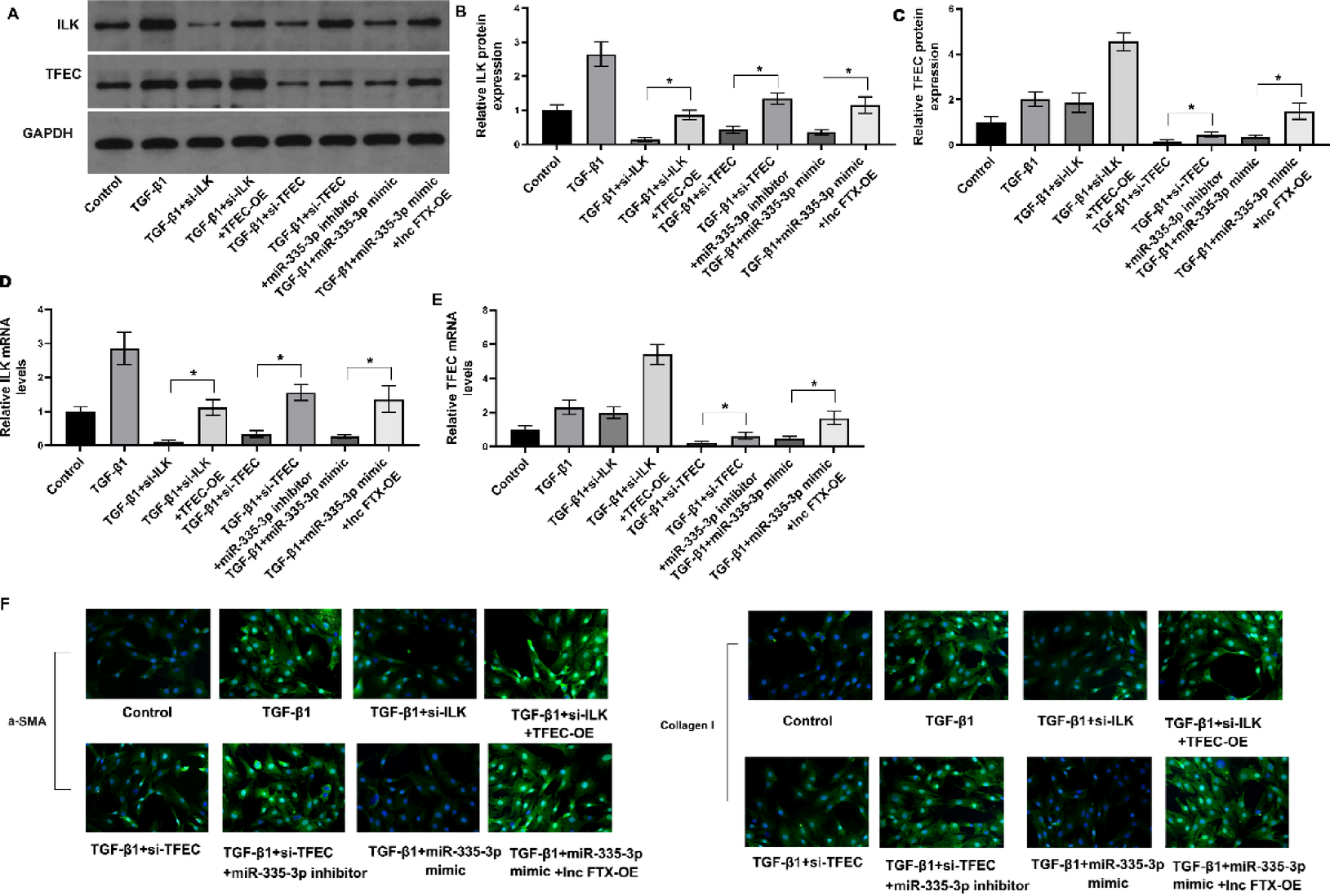

Fig. 8
From: LncRNA FTX promotes myocardial fibrosis by sponging miR-335-3p to regulate TFEC/ILK signaling
Rescue experiments validated the functional axis of Lnc FTX/miR-335-3p/TFEC/ILK. CFs were co-transfected with TFEC and ILK knockdown, Lnc FTX overexpression, miR-335-3p inhibitor or mimic to assess the subsequent impact on TFEC and ILK expression, as well as the induction of fibrosis markers (α-SMA, Collagen I). (A) Representative images of western blot. (B,C) Relative changes of ILK and TFEC protein expression. (D,E) Relative changes of ILK and TFEC mRNA levels. (F) Immunofluorescence staining of α-SMA and collagen I in cardiac fibroblasts. *p < 0.05 between indicated groups.
