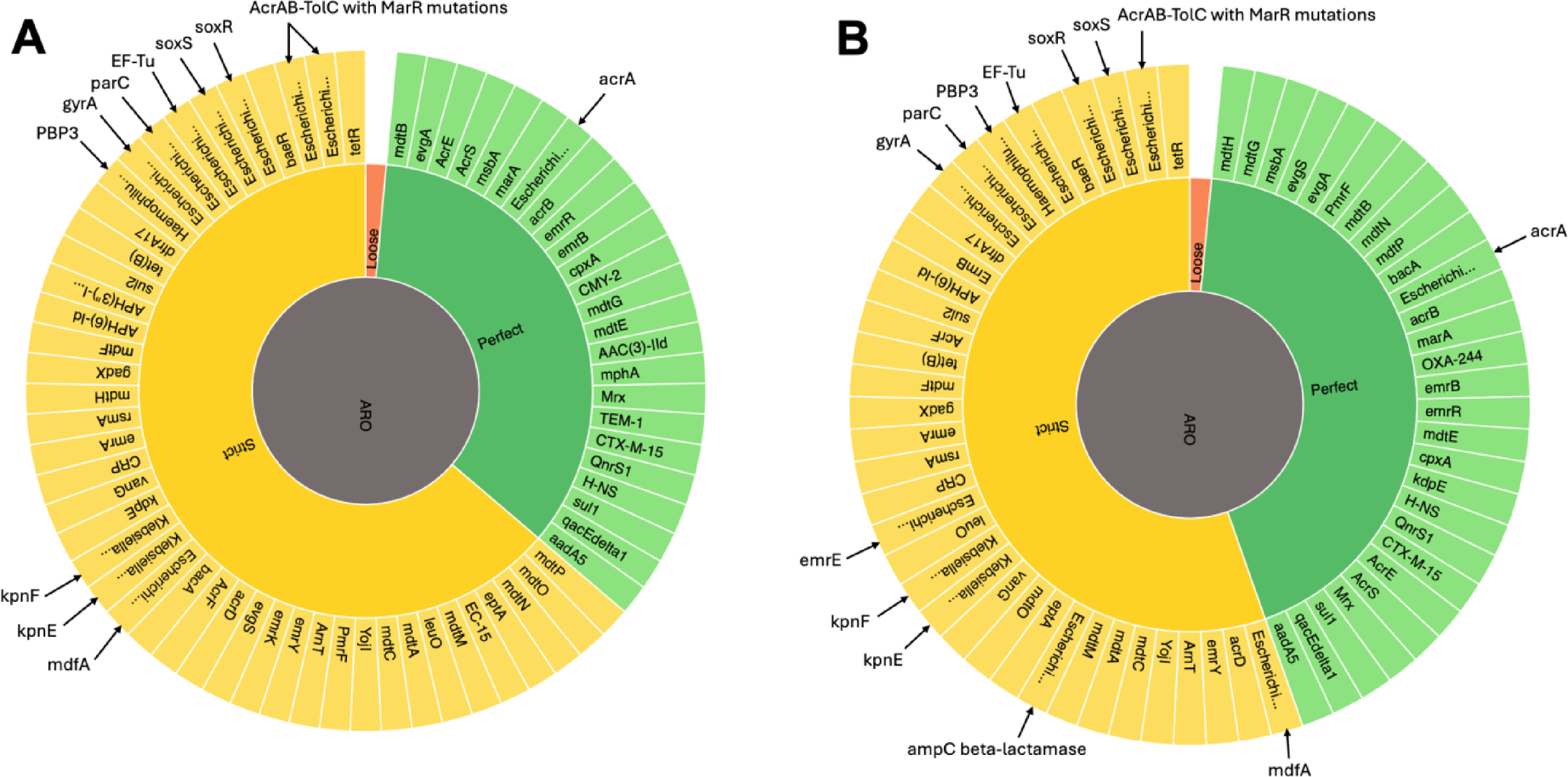

Antimicrobial resistance genes predicted from the whole-genome sequence data of (A) E. coli UPE7 and (B) E. coli UPE139 using CARD-RGI (https://card.mcmaster.ca/analyze/rgi). ARO represents the Antibiotic Resistance Ontology, and the surrounding colored segments represent the detection confidence level of AMR genes. Green color (Perfect) indicates AMR genes perfectly matching reference sequences in the database. Yellow color (Strict) indicates that AMR genes are closely related to known AMR, with some variations. Red (Loose) indicated low-confidence matches.
