From: Comparative plastid genomics of Hippophae reveals phylogenetic relationships and provides candidate DNA markers for taxonomic identification

Fig. 5

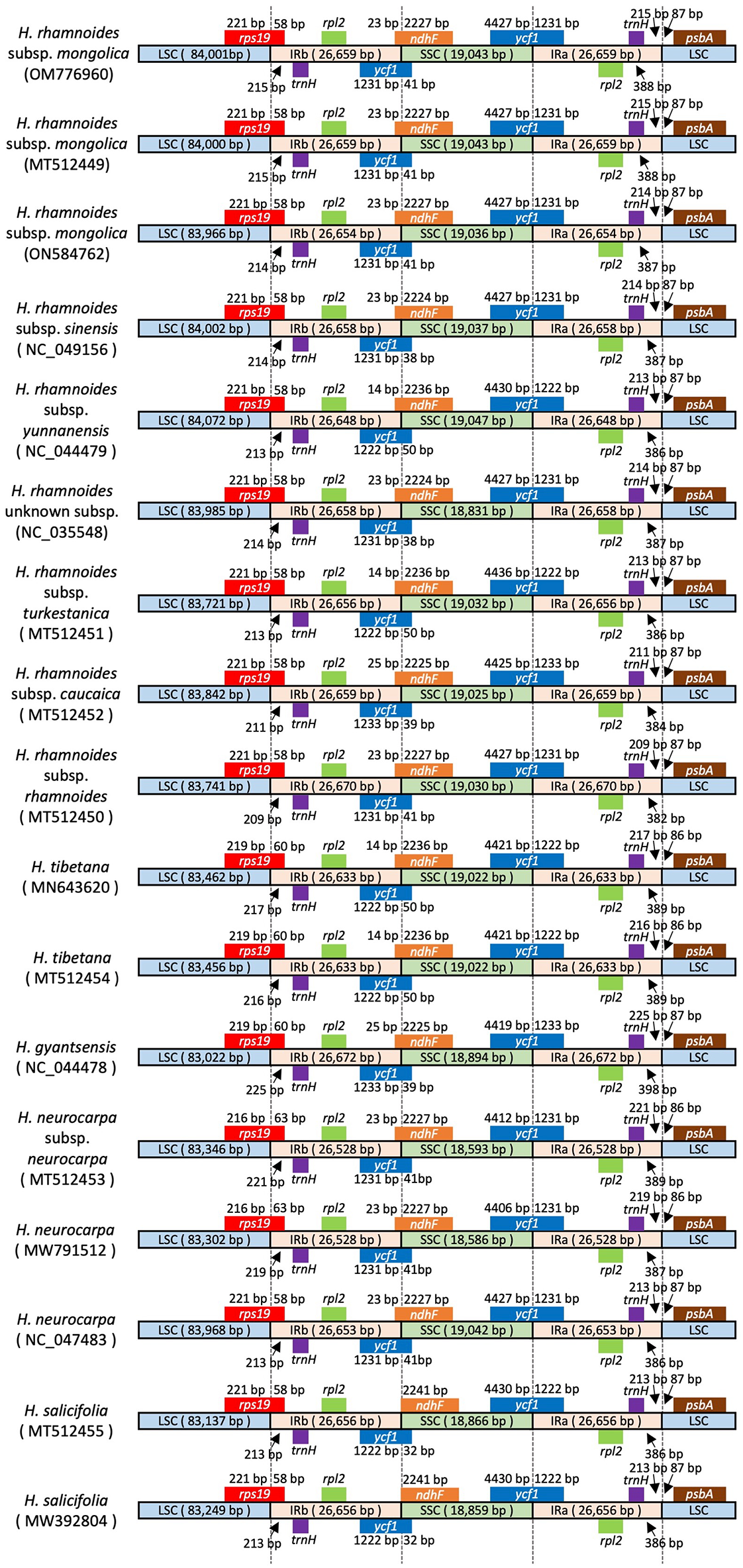

Comparison of IR boundary regions among Hippophae plastid genomes. The diagram shows the relative positions and lengths of genes adjacent to the LSC/IRb, IRb/SSC, SSC/IRa, and IRa/LSC junctions. Numbers indicate the distances (in base pairs) between the junctions and adjacent genes or lengths of gene segments extending into adjacent regions. LSC, large single-copy region; SSC, small single-copy region; IR, inverted repeat; IGS, intergenic spacer.
