Fig. 9

From: Optimized production and characterization of ulvan from Ulva Lactuca with in vitro biological activities

Fig. 9

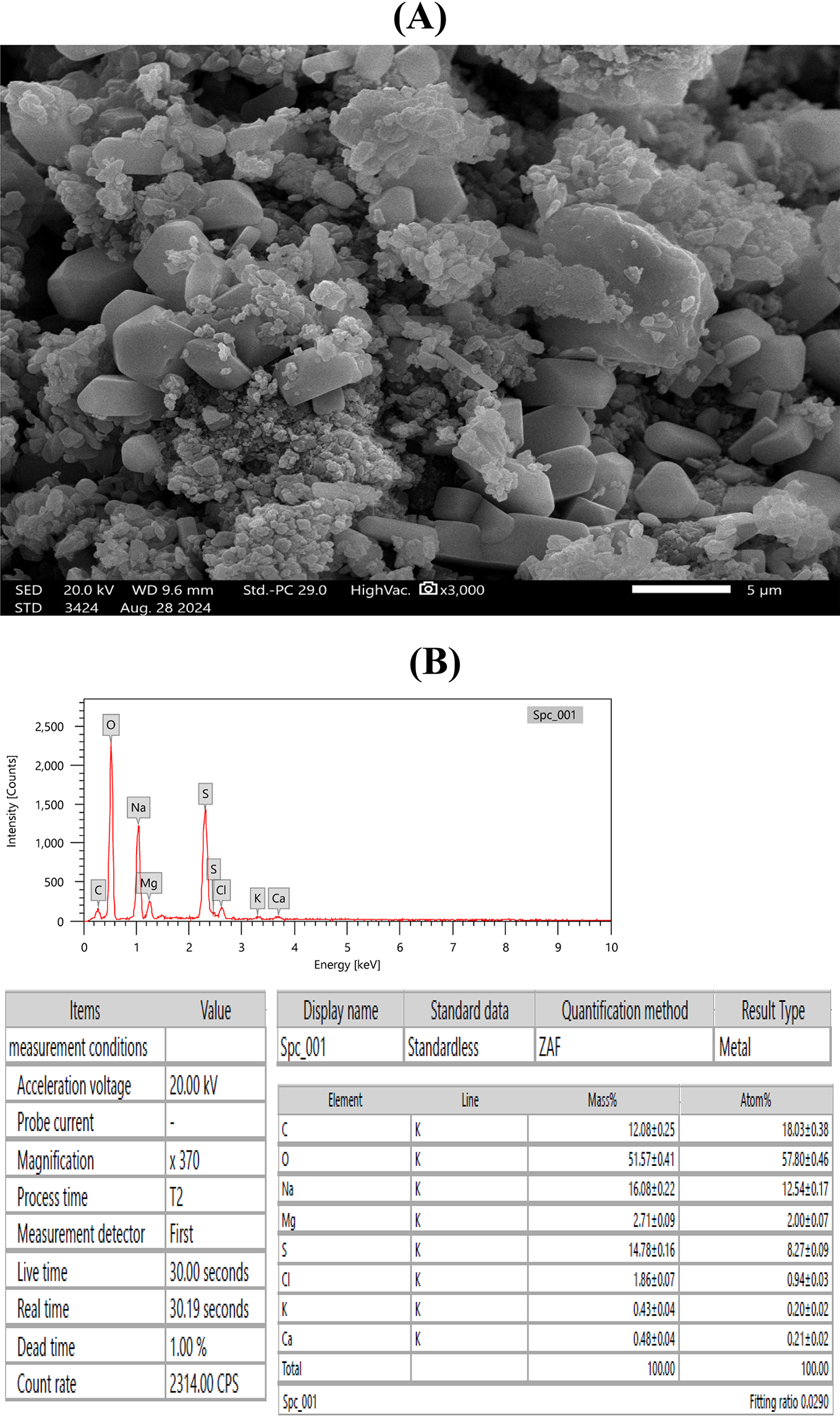

SEM micrographs (A), (scale bar 5 μm) and corresponding EDX elemental of ulvan (B) extracted from Ulva lactuca, showing various surface morphologies. The SEM images reveal semi-crystalline structures, which are closely correlated with the distribution of elements such as sulfur (S), sodium (Na), and magnesium (Mg) detected by EDX, suggesting that these elemental compositions may contribute to the observed crystalline-like features rather than originating solely from the polymeric chains of ulvan.
